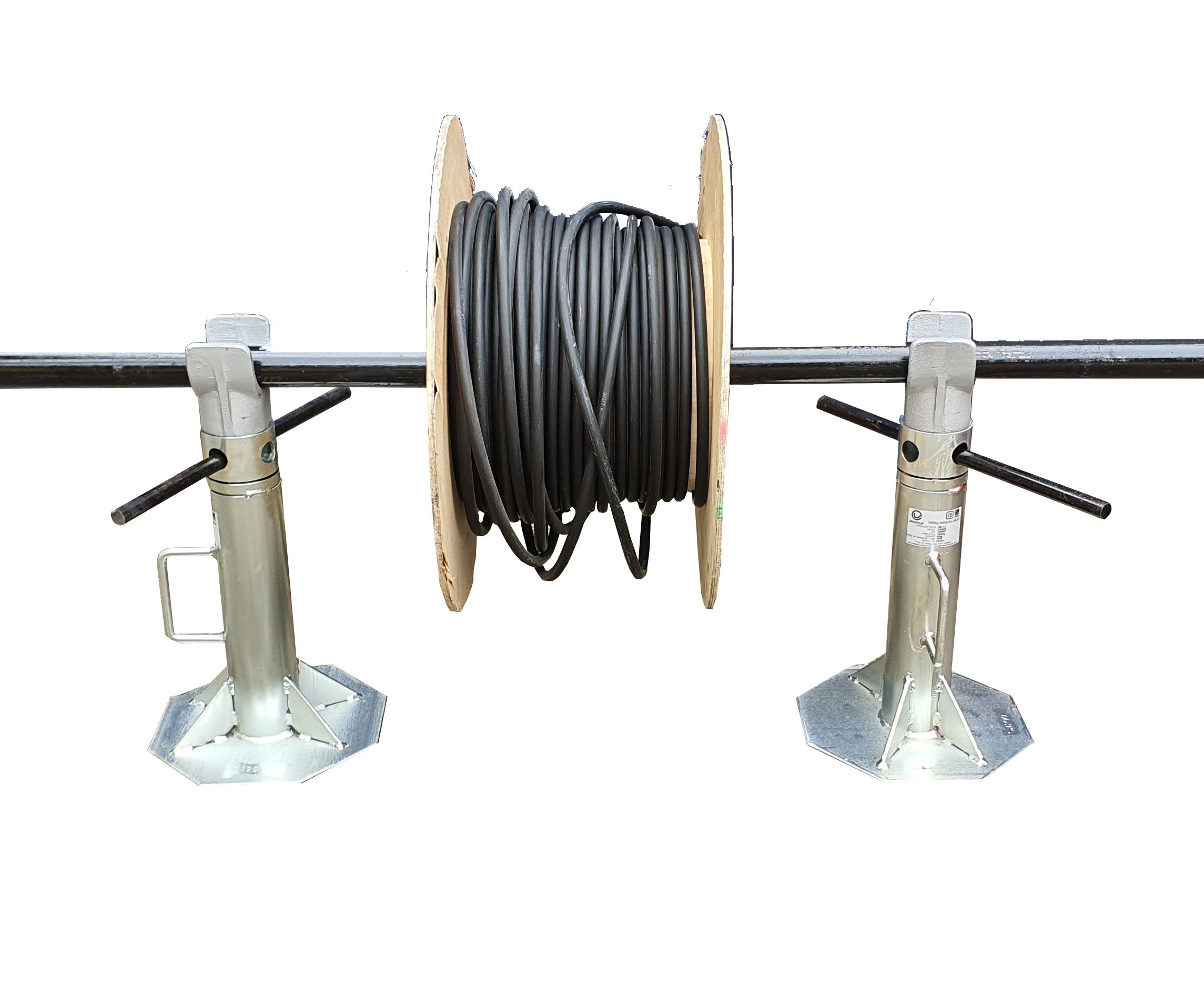

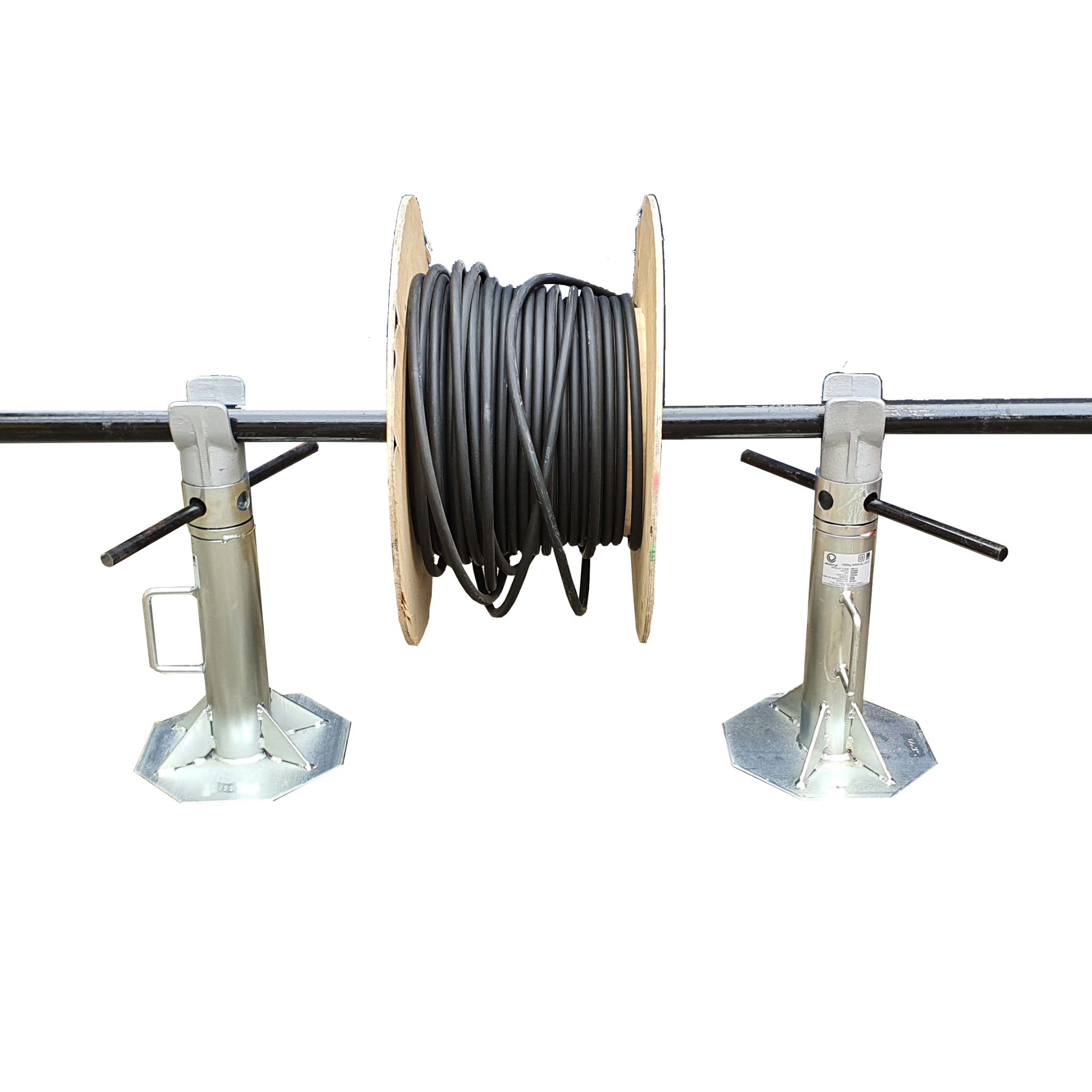

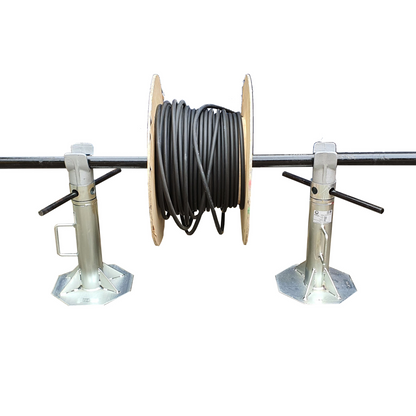

3.0t (3000 Kg) SWA Cable Drum Jacks - Manual Screw Jack Type

• JACKITUP 3t manual screw type cable drum jacks are used to lift, support and distribute low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables, including SWA cables.
• Supplied in the UK since 2010, reliability you can count on.

Spec

• Designed & manufactured for heavy duty use
• Extra strong base plate to give extra stability
• Colour as standard: RAL 5002 blue
• Suitable for 1060-1680mm diameter cable drums
• Robust and easy to use
• Inspected and certified

• Weight Each 22 Kg per jack
• Capacity 3000 Kg (Supplied as a Pair of 1.5t Jacks)
• Lift height 300 mm
• Min Height 530 mm
• Max Height 830 mm
• Base Size 300 x 300 mm

Options

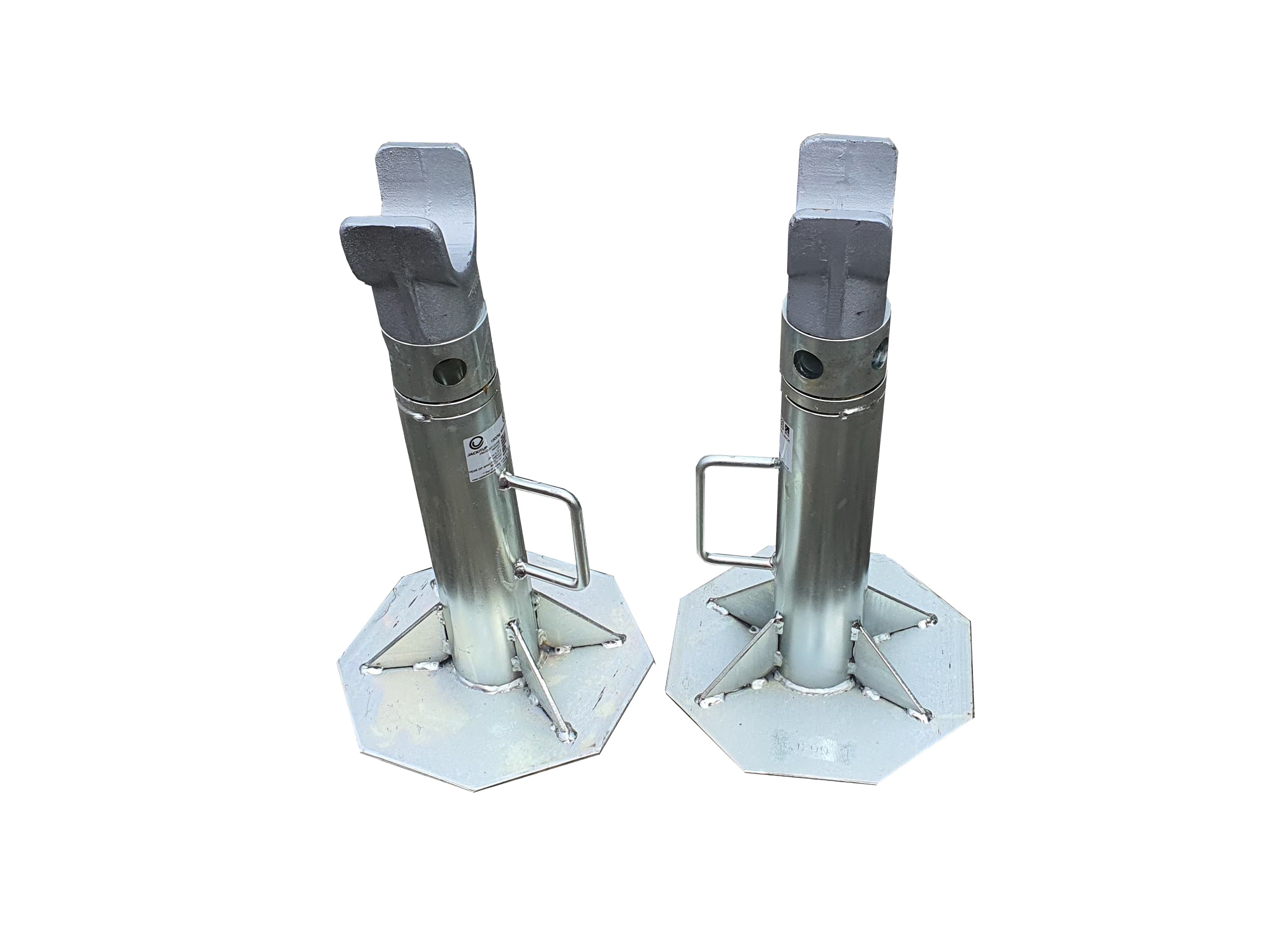

•  Ref: 100-2-3 consists of 2 x 1.5t jacks (2 x 100-1-1) supplied with 2 x tommy bars
•  Ref: 100-2-1 consists of 2 x 1.5t jacks (2 x 100-1-1) supplied with 1.2m spindle bar and 2 x tommy bars
•  Ref: 100-2-2 consists of 2 x 1.5t jacks (2 x 100-1-1) supplied with 1.8m spindle bar and 2 x tommy bars

 Tech Area

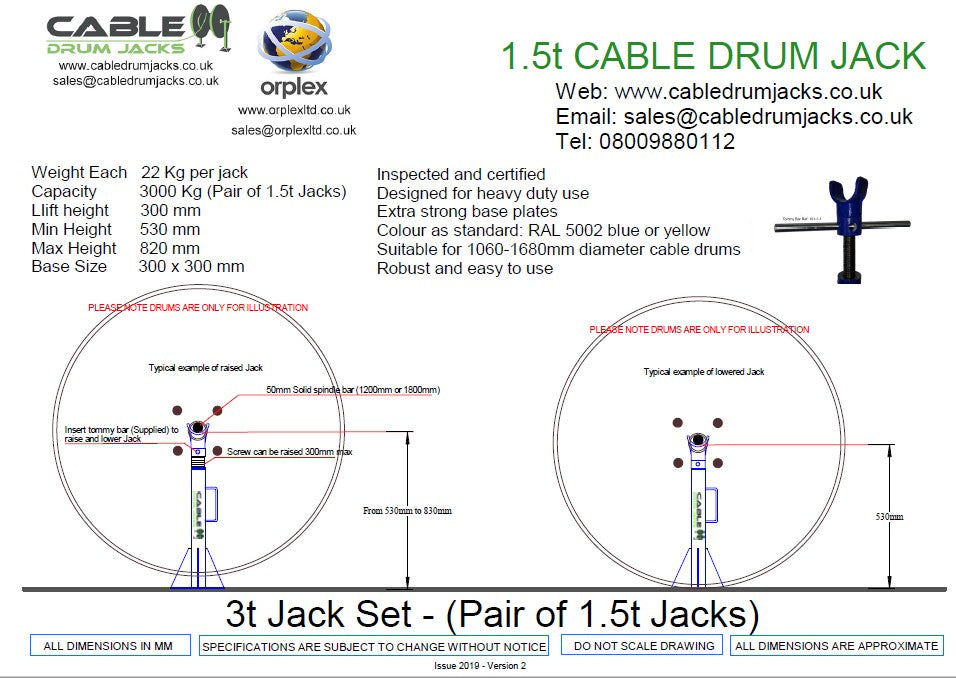

Data sheet

Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
