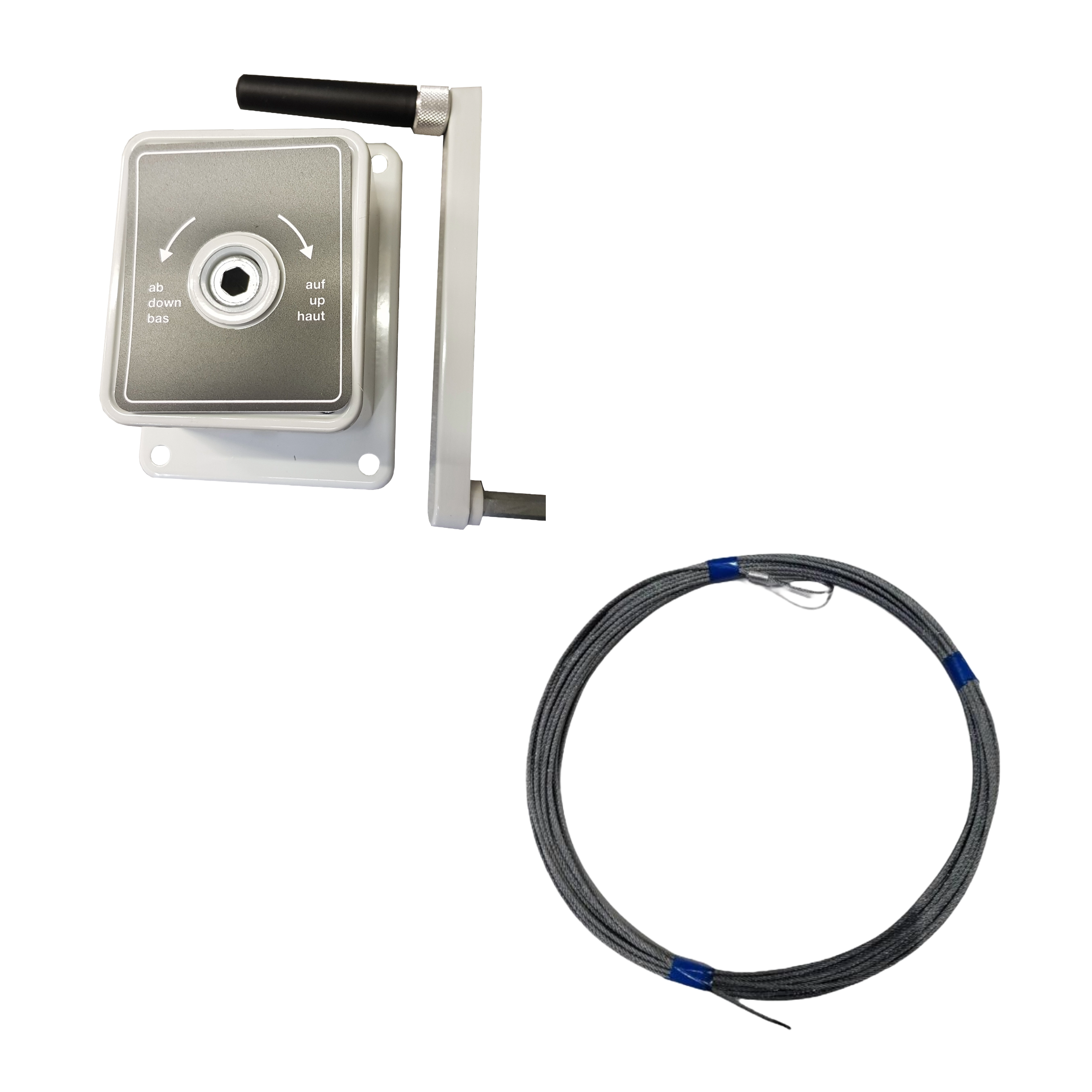

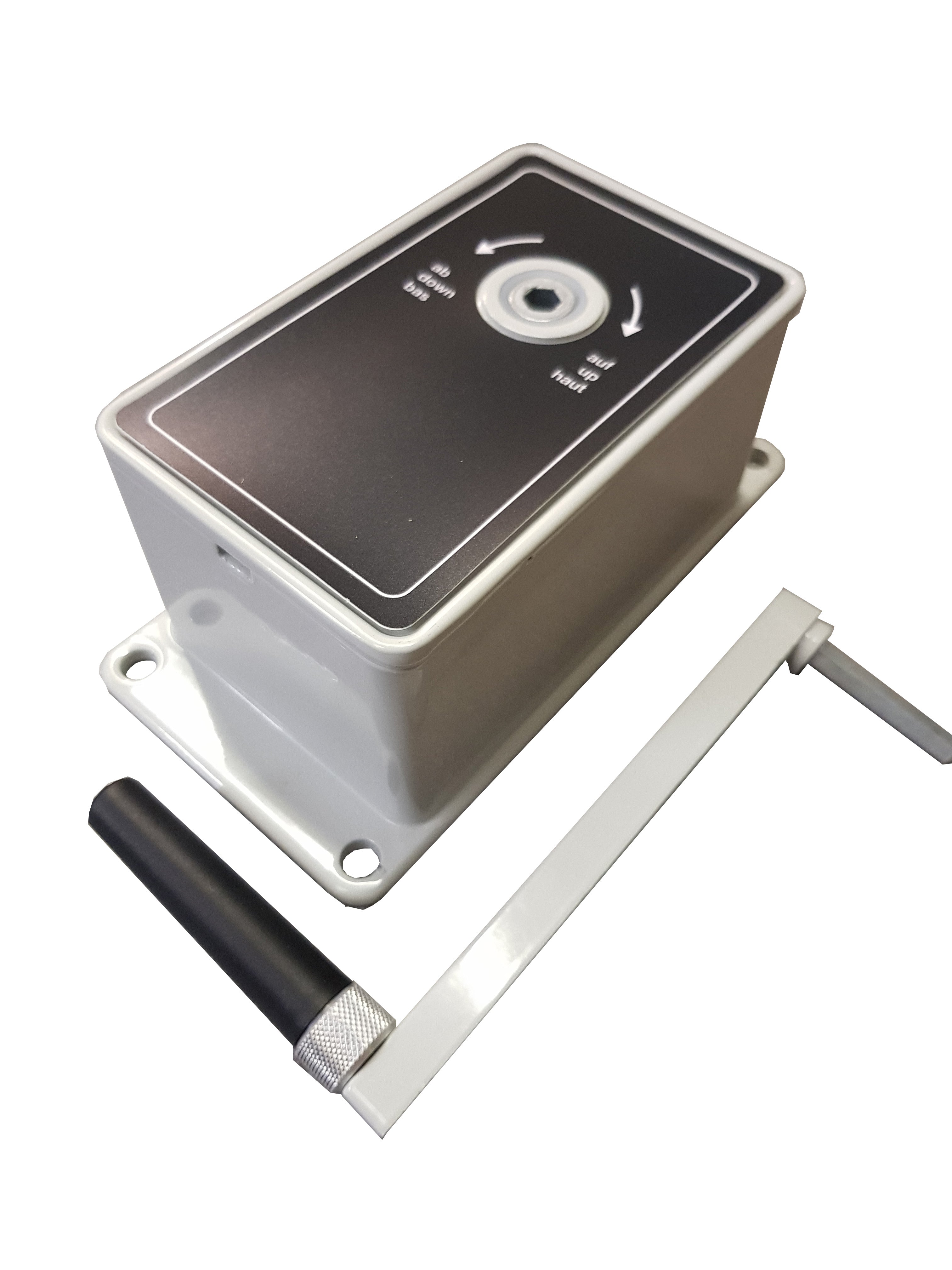

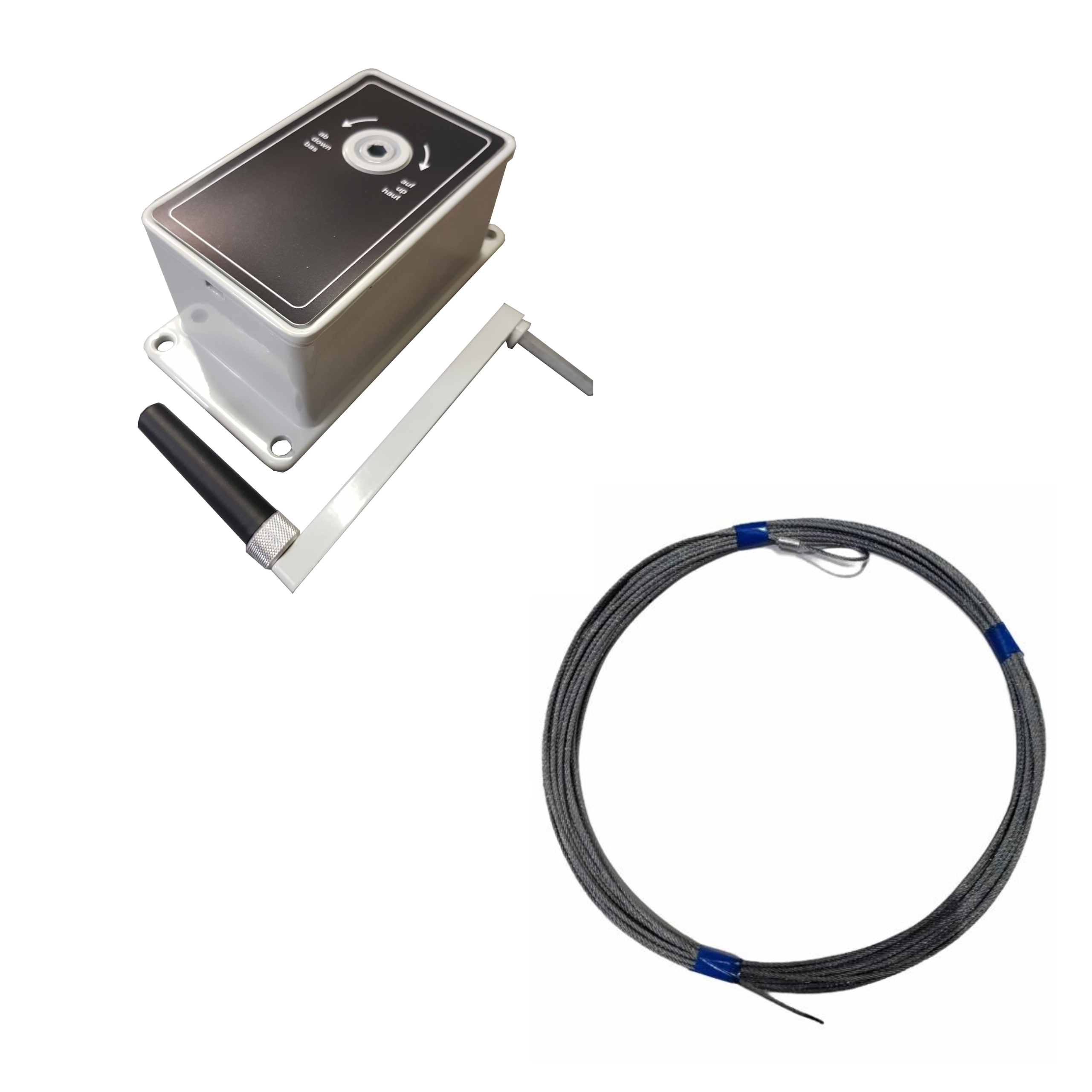

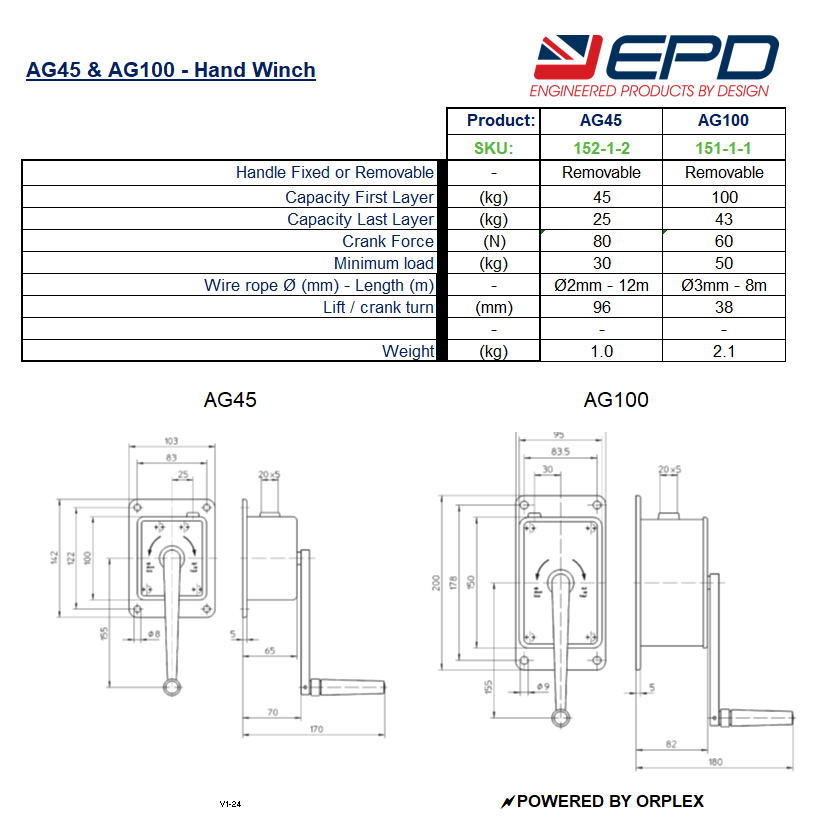

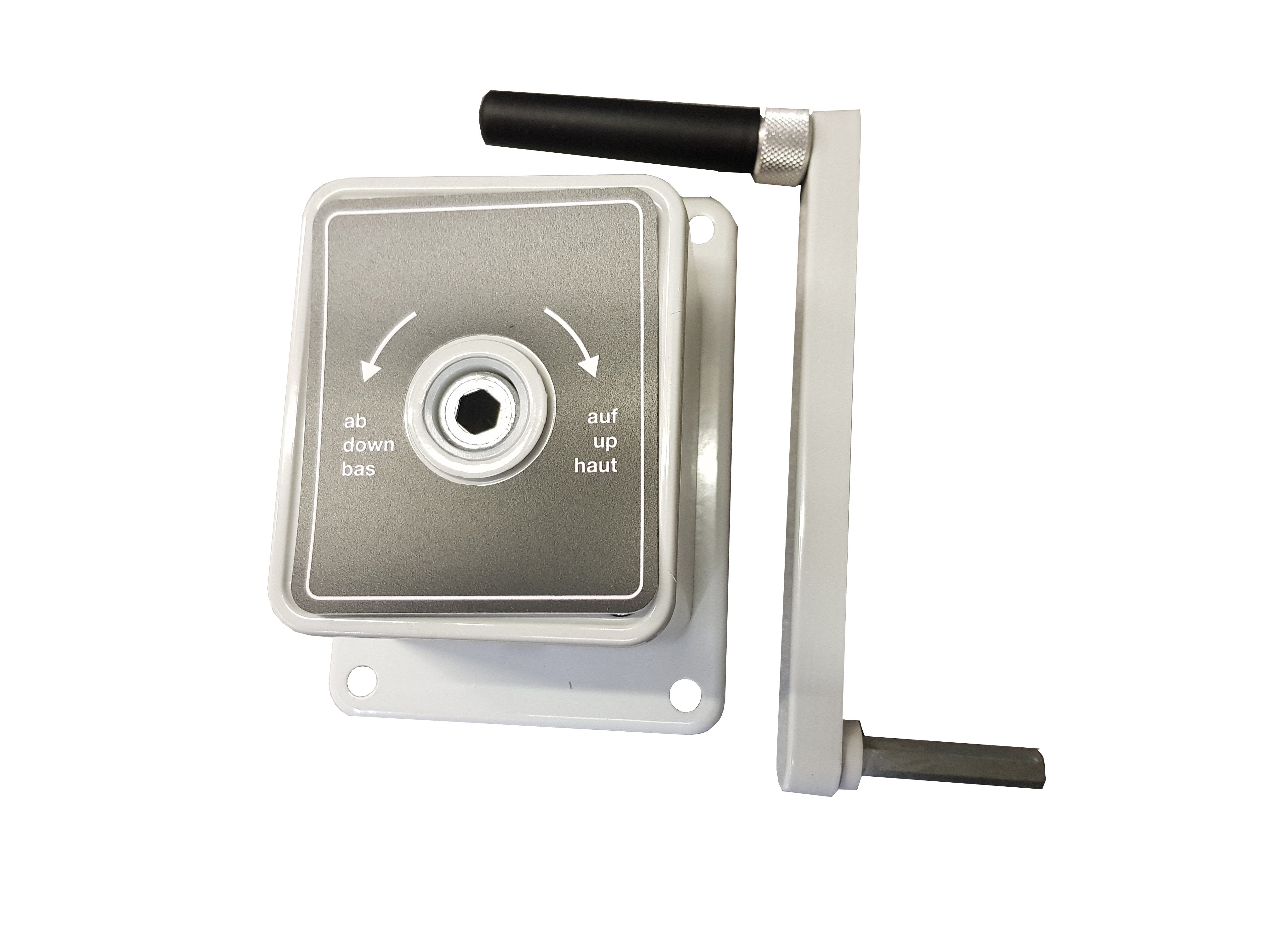

AG45 & AG100 - Aluminium Wall Mounted Hand Winch

The wall mounted hand winch is available as the AG45 (45kg) and AG100 (100kg) from ORPTECH, a light duty hand winch for smooth, controlled manual lifting and positioning.

Wall Mounted Hand Winch Features

Manufactured from aluminium die-cast housings with corrosion-resistant parts and a powder-coated finish, this hand winch runs quietly with low crank effort and holds the load safely in any position.

• 45kg (AG45) or 100kg (AG100) lifting capacity

• Aluminium die-cast housing with corrosion-resistant components

• Powder-coated finish for indoor and outdoor use

• Spur gear drive with integrated self-locking brake

• Removable crank handle for security and convenience

• Lightweight build for simple wall mounting

Typical Uses

As a washing line winch and general light duty hand winch it suits repetitive raising and lowering jobs around the home, workshop and light industrial settings.

• Raising and lowering blinds, shutters and lightweight doors

• Positioning chandeliers and lighting fixtures

• Operating clothes lines and washing lines

• Light-duty lifting and tensioning tasks

Rope and Accessories

Supplied as standard without wire rope, with cable options available. Pair it with suitable 3mm pulleys and 3mm wire rope to complete the setup.

**As Standard supplied without Wire Rope**
