Kratos - Aluminium Anchor for Standing Seam Roof - MBS 15kN

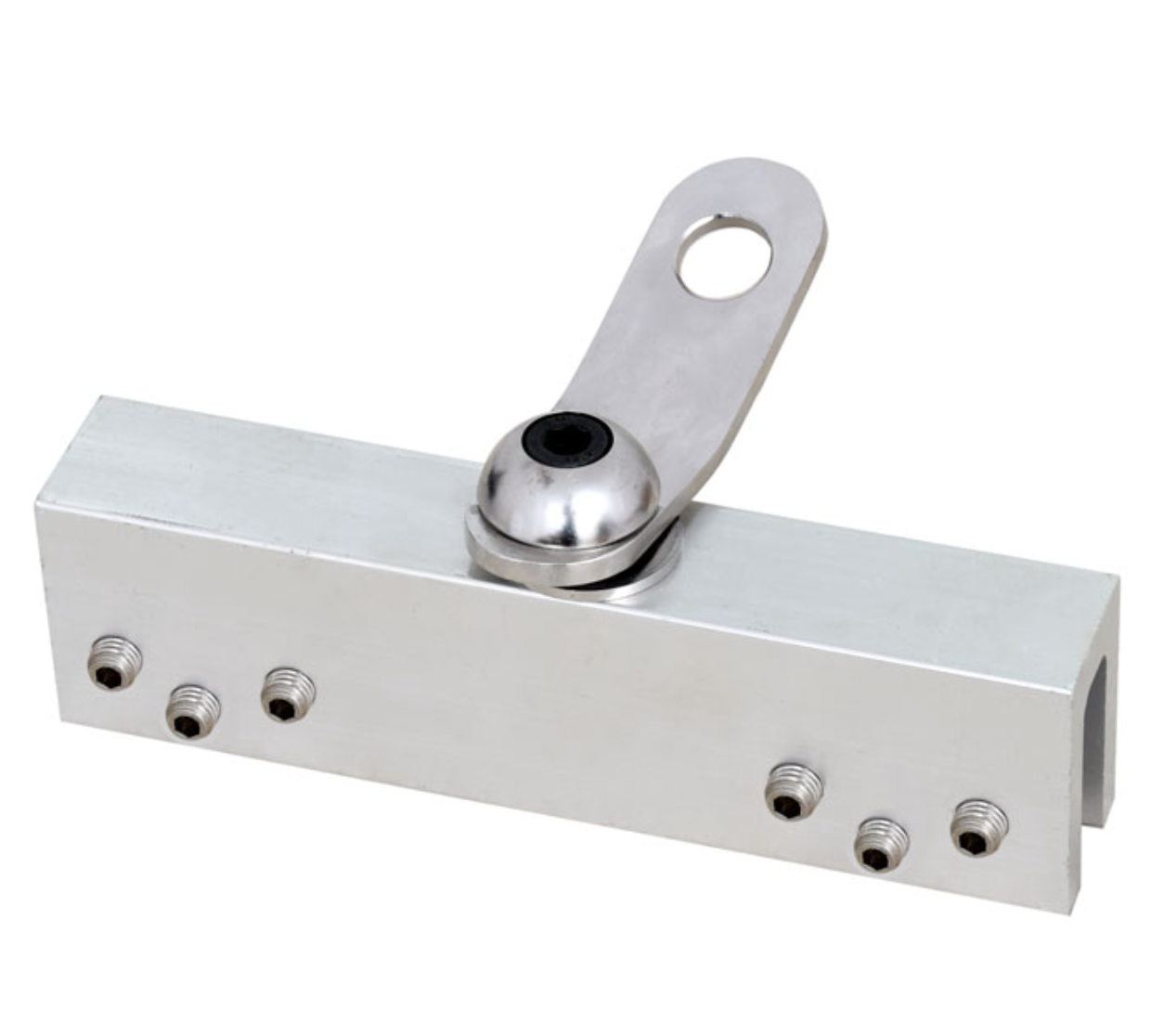

Aluminium Anchor for Standing Seam Roof

Instructions for Safe Use - please read & understand full instruction manual FA 60 034 00 from download section below before use. A structural engineer must approve the structure is suitable for attachment of this device before installation.

For your safety, comply strictly with the instructions for use, verification, maintenance and storage.
KRATOS SAFETY cannot be held liable for any direct or indirect accident occurring following use other than that provided for in these instructions; do not use this equipment beyond its limits!

INSTRUCTIONS FOR USE AND PRECAUTIONS:

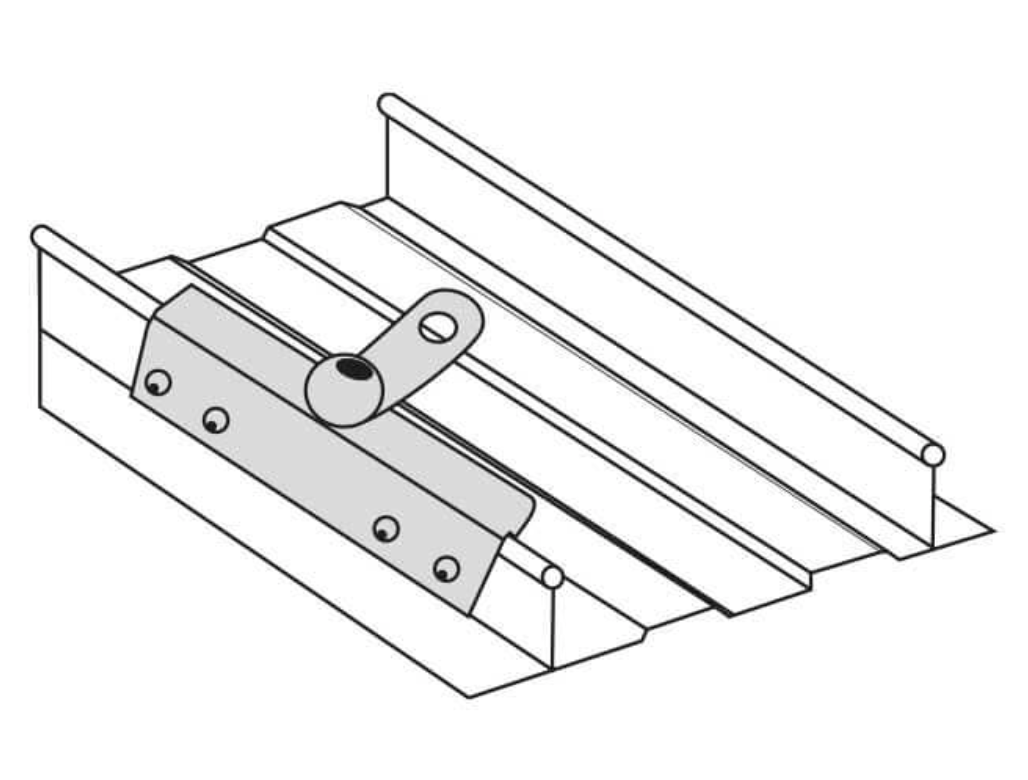

The KRATOS SAFETY standing seam aluminium anchorage point is a temporary and easily transportable anchorage device in accordance with EN 795:
2012 Type A and European PPE Regulation (EU) 2016/425. This anchorage point was designed to protect the safety of users anywhere there is a risk of
falls. User safety relies on the effectiveness of the equipment and full understanding of the safety instructions contained in this user guide.
There is only one version: FA 60 034 00. It can only be used by one person at a time. It must be installed for the period of use and then removed from
the work site when it is no longer being used, this is made easier as it attaches to the reception structure without any need for drilling or specific tool. No
intervention on the underside is necessary for it to be set up, only the set of fasteners supplied with the anchorage point is necessary. This set of fasteners
is composed of 6 sets of 2 screws: one (1) diam. 8 mm threaded pins hexagonal socket with rounded end and the other (2) 8 mm diam pan head cup point
hexagonal grub. You MUST always keep this kind of fixing.

Further instructions are on page five and six of the product manual in the download areas below.

Downloads
