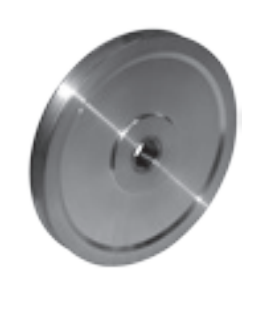

Aluminium Pulley / Sheaves (Model 171)
Description: Aluminium pulleys with a turned groove and self-lubricating bushing, designed for reliable and efficient performance.
Specifications:
-
Pulley Capacity: 100 kg to 700 kg
-
Pulley Diameter: 65 mm to 150 mm
-
Material: Aluminium with self-lubricating bushing
Lead Time (if not in stock):
- Approximately 3 to 4 weeks from order date
Note: For a formal quotation, please email sales@rigginguk.co.uk
These pulleys are ideal for applications requiring lightweight yet durable components, offering a range of capacities and diameters to suit various needs.
Spec
SKU
|
|
182-171-65 |
182-171-75 |
182-171-90
|
182-171-115 |
182-171-126 |
182-171-150 |
Sheave External Ø
|
mm
|
65
|
75 |
90 |
115 |
125 |
150 |
Groove Base Ø
|
mm
|
56 |
65 |
75 |
100 |
110 |
130 |
Groove Radius
|
mm
|
1.3
|
2.8 |
2.8 |
3.5 |
3.5 |
4.3 |
Groove Depth
|
mm
|
4.5
|
5
|
7.5
|
7.5
|
7.5
|
10
|
Rim Width
|
mm
|
6.5
|
11
|
11
|
12
|
12
|
15.8
|
Bore for Bolt
|
mm
|
10
|
10
|
10
|
16
|
16
|
18
|
Hub Length
|
mm
|
8
|
12
|
12
|
14
|
14
|
16
|
Hub Ø |
mm |
30
|
35
|
40
|
45
|
45
|
50
|
Rope Ø Max.
|
mm
|
2.5 |
5 |
5 |
6
|
6
|
8
|
Load Capacity (in kg).
|
kg
|
100 |
360 |
360 |
630 |
630 |
700 |
Weight (in kg) approx.
|
kg
|
0.06 |
0.12 |
0.16 |
0.28 |
0.34 |
0.57 |
