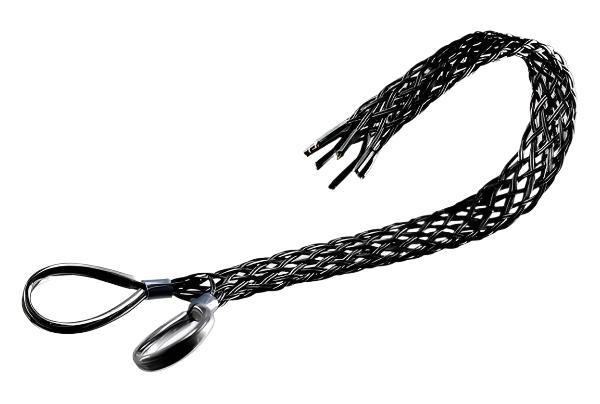

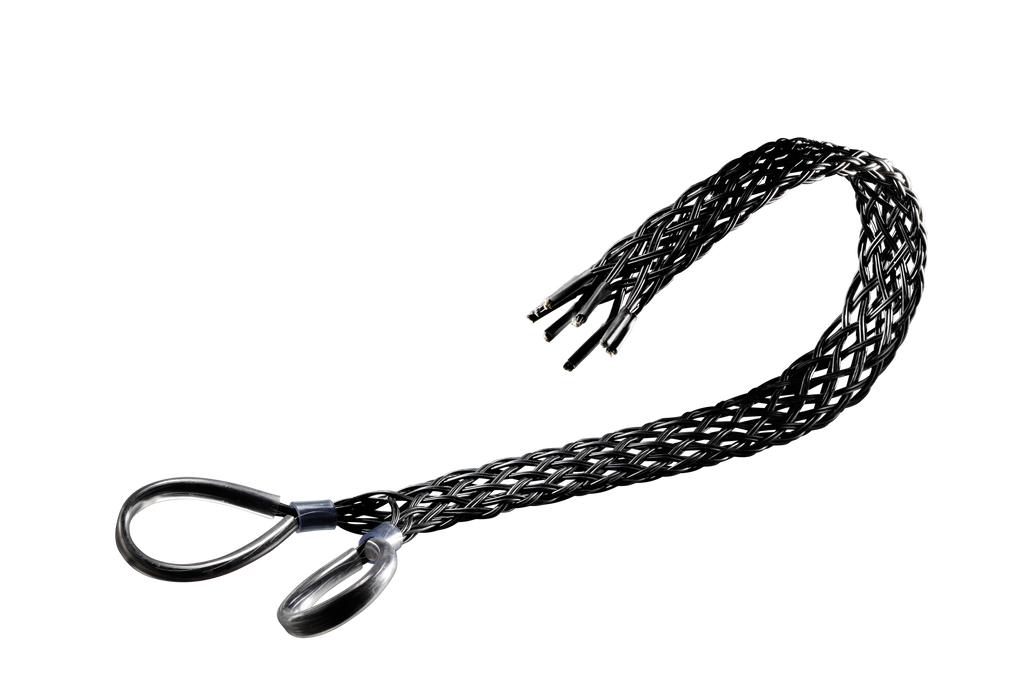

Non-Metallic (Aramid) Double Eye Double Weave Cable Grips
Ideal for fibre optic applications, offshore or for a multitude of uses in the electrical and utilities industry, these cable grips offer a dramatically improved weight to break ratio.
These non-metallic pulling grips are made of a high-strength, non-metallic aramid fibre, with UV protective coating; they are suitable for pulling both single cable and cable bundles. These woven mesh cable grips offer a non-metallic and non conductive alternative to steel cable grips. Non-metallic material is easy to work with even without gloves
Features and benefits
-
Continuous weave configuration
-
No fraying wires
-
Lighter and safer to handle
-
Longer Life
SKU |
Range (mm) |
Lattice Length (mm) |
Approx. Break Load (kg) |
105-16-1 |
30 - 40 |
642 |
4,472 |
105-16-2 |
40 - 50 |
667 |
5,389 |
105-16-3 |
50-65 |
636 |
7.212 |
105-16-4 |
65-76 |
762 |
7,212 |
105-16-5 |
76-102 |
800 |
7,212 |
105-16-6 |
102-127 |
1,540 |
7,212 |
