RUD - B-ABA Lifting Point

RUD SKU: 264-108-1

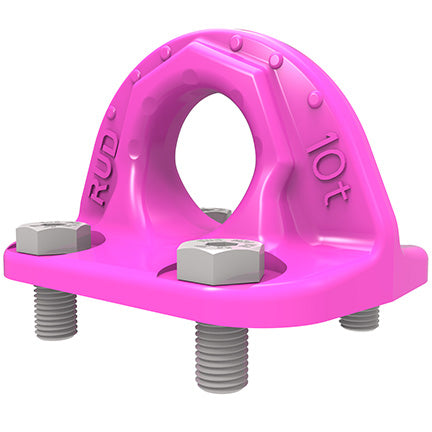

  • RUD - B-ABA Lifting Point

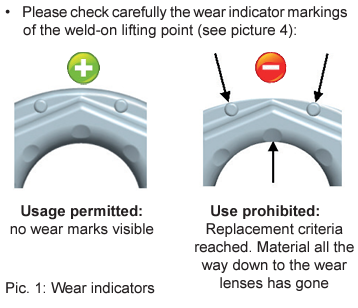

  • Example of Wear Indicator_Markings_on_RUD_B-ABA_Lifting_Point

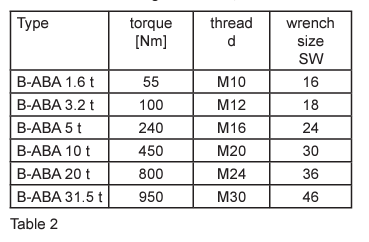

  • UD_B-ABA_Boltable_Lifting_Point_Bolt-Torque_Settings_Table

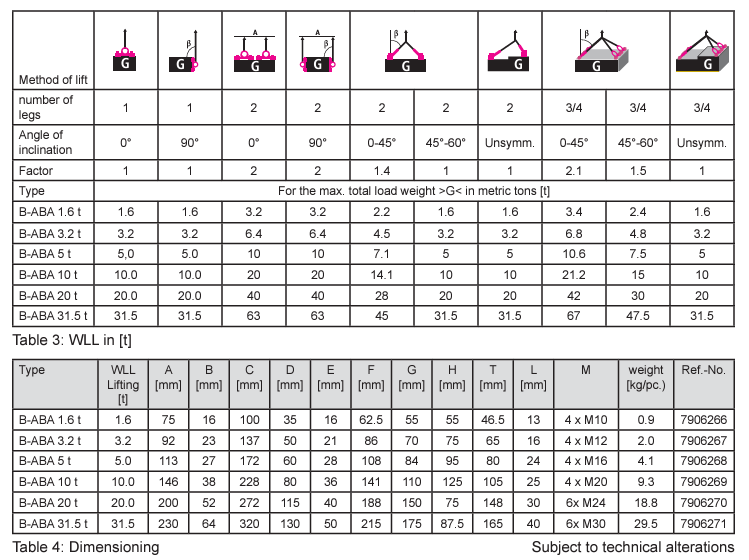

  • RUD_B-ABA_Boltable_Lifting_Point_Dimensions_1.6t_to_10.0t from RiggingUK
  • RUD_B-ABA_Boltable_Lifting_Point_Dimensions_2.0t_to_31.5t from RiggingUK

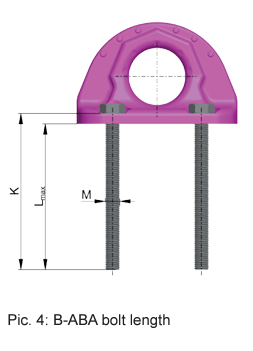

  • RUD_B-ABA_Boltable_Lifting_Points_Bolt_Length from RiggingUK

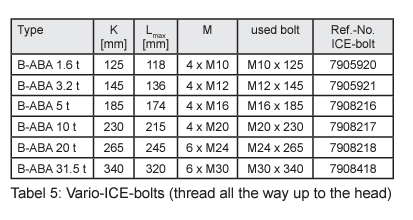

  • UD_B-ABA_Boltable_Lifting_Points_Bolts and Bolts Length to use_and_ICE_Bolts_Reference
1 9

RUD B-ABA Bolt On Lifting Point Range from 1600kg to 31,500kg (1.6 through 31.5t). 4:1 safety against breaking. Full WLL in all directions. Patented markings for easy determination for withdraw... Read More

£138.35
Sale TODAY'S PRICE £138.35

In stock

Stock
x
IN STOCK (10)

Stock Shown with a quantity 'IN STOCK (10)'; In Our Warehouse – What you see is ready for immediate dispatch from our UK facility.

IN STOCK

Stock Shown as 'IN STOCK'; In stock at our trusted UK manufacturers – What you see is ready for immediate to 3 days dispatch direct from our manufacturing partners.

PRE ORDER

Stock Shown as 'PRE ORDER' will be made to order generally for further details you can call one of our team to confirm; quoting the product name and SKU.

Still have questions? Then please do get in touch with us. sales@rigginguk.co.uk

Tax included. Shipping calculated at checkout.
More From rud
View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

RUD B-ABA Bolt On Lifting Point
  • Range from 1600kg to 31,500kg (1.6 through 31.5t).
  • 4:1 safety against breaking.
  • Full WLL in all directions.
  • Patented markings for easy determination for withdraw of service.
  • Tempered base body, therefore wear-resistant.
  • Loading from any side permitted.
  • DGUV approved.
  • Max operating temperature range -40°-100°C (without reduction in WLL).

Accompanying product image

Downloads

Accompanying product image
