Battery Drill Worm Gear Winch DW1000

Battery Drill Worm Gear Winch DW1000

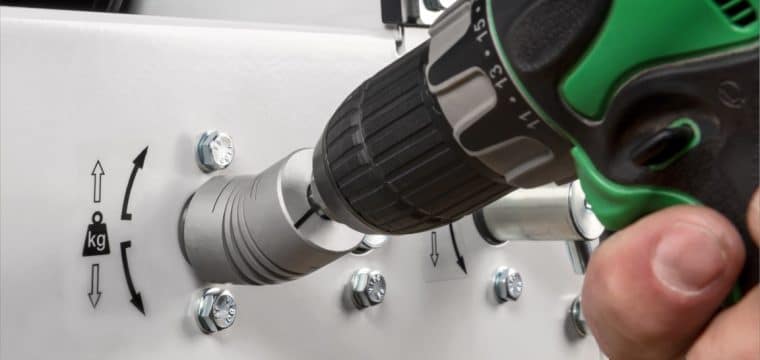

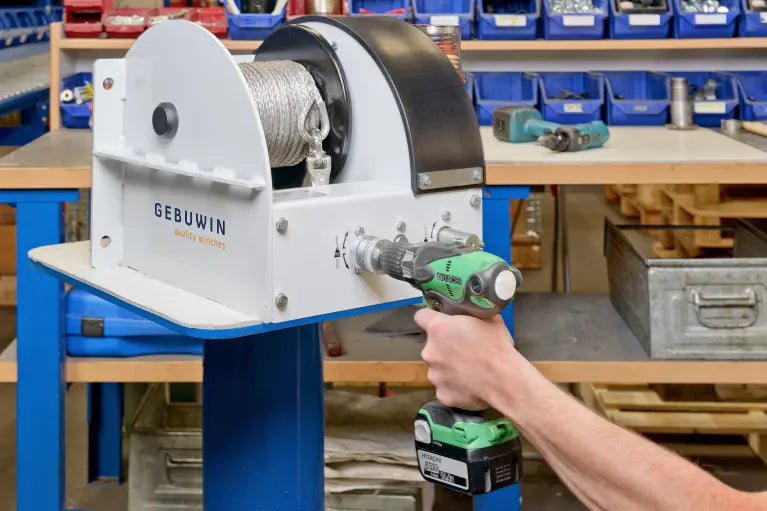

This worm gear winch can be controlled either manually with a crank or with a cordless drill, ideal in situations where there is no electrical power available but you do not want to move the load manually.

This winch offers the option of using the power and speed of a cordless drill instead.

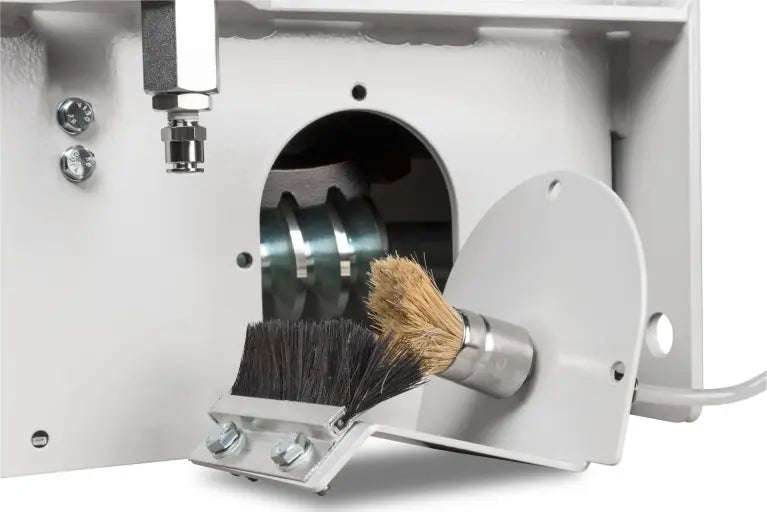

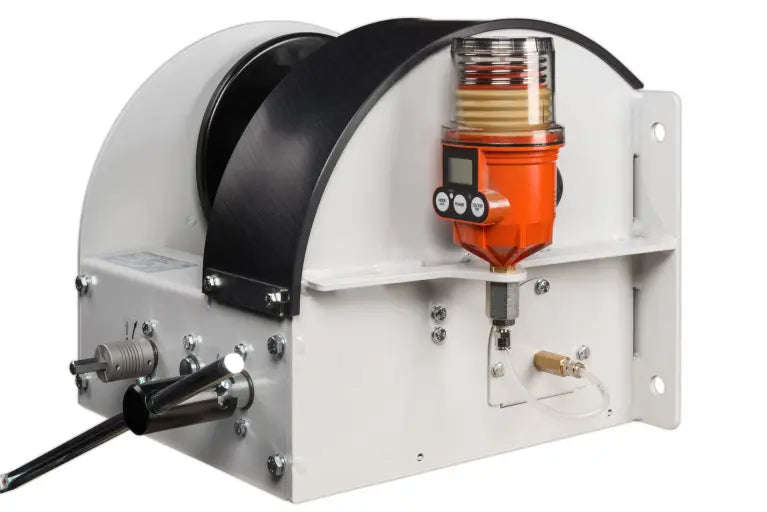

The winch is also equipped with an automatic grease lubrication system and a special flexible adaptor to absorb the use and the released vibrations of the cordless drill, making it very easy to use. A very beautiful winch and a lifesaver in situations when the power fails and you still want to move the load.

Please note this is a winch that is only manufactured to order and therefore could have a lead-time of up to four weeks which would be confirmed at point of order.

Drill is not supplied with the winch.

Specification

• Robust and safe lifting and pulling winch in compliance with EN13157
• Static safety factor 4
• Right angled, easy to grease worm transmission and maintenance free bearings
• Load pressure brake with double ratchet system for safe stable hold of the load in any position
• Cable outlet upwards, downwards or at rear
• Protection classification IP54
• Automatic grease system for the worm gearing
• Adjustable crank, with ergonomic grip
• Drill and hand operated
• Suitable for wall and floor mounting
• Large rope capacity (73 metres)
• Simple and quick attachment
• Paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
• Corrosion resistant
• Drill is not supplied

Options

• Zinc-plated finish

• ATEX Certified
• Floor mounting
• Multiple cable drum compartments

**As Standard supplied without Wire Rope - Prices available on request*

Technical Info

Data sheet
