C.SCOPE - GENERAL PURPOSE SONDE (33KHZ)

The C.Scope 33kHz General Purpose Sonde is a transmitter used to trace the direction of pipes.

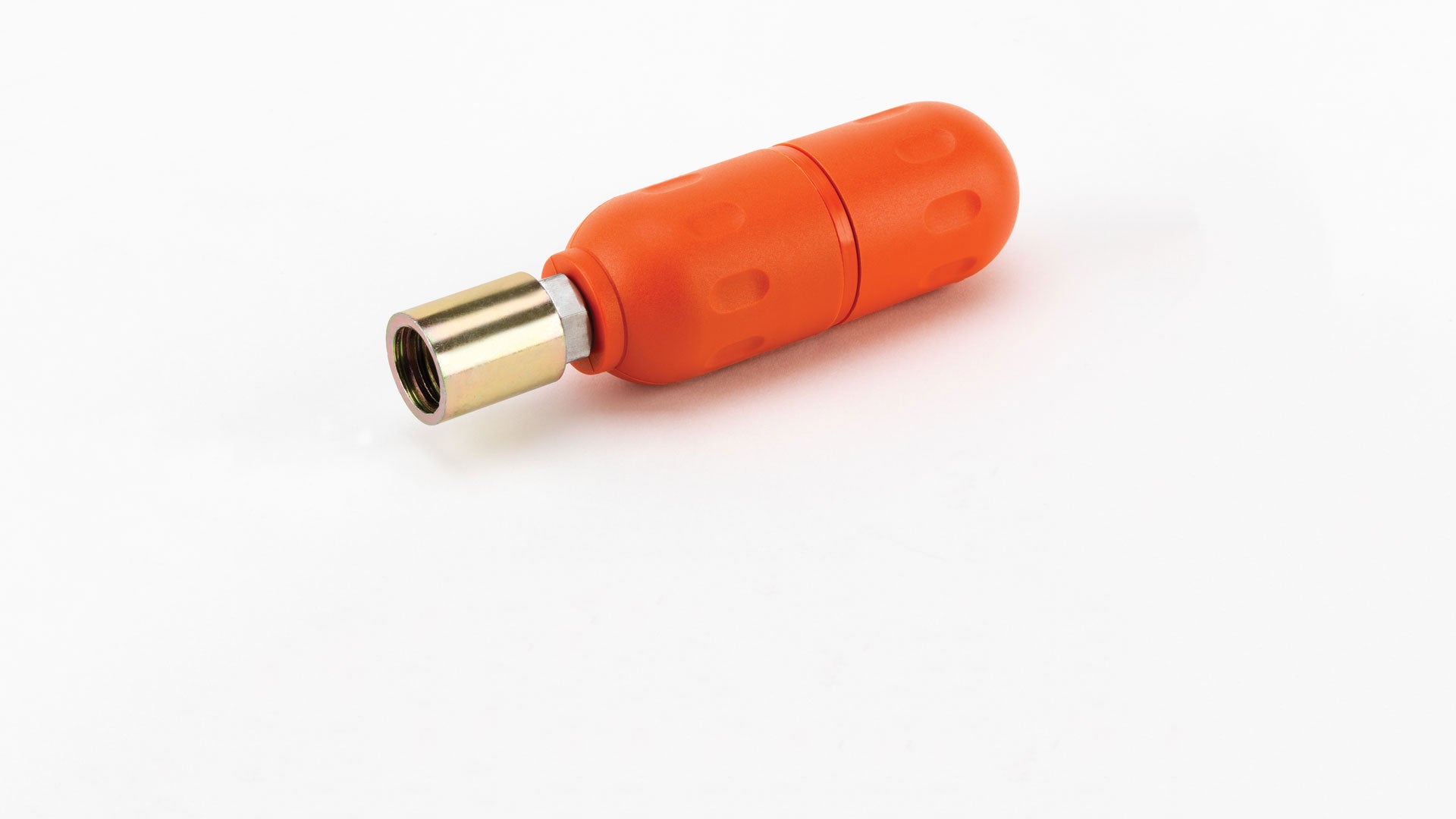

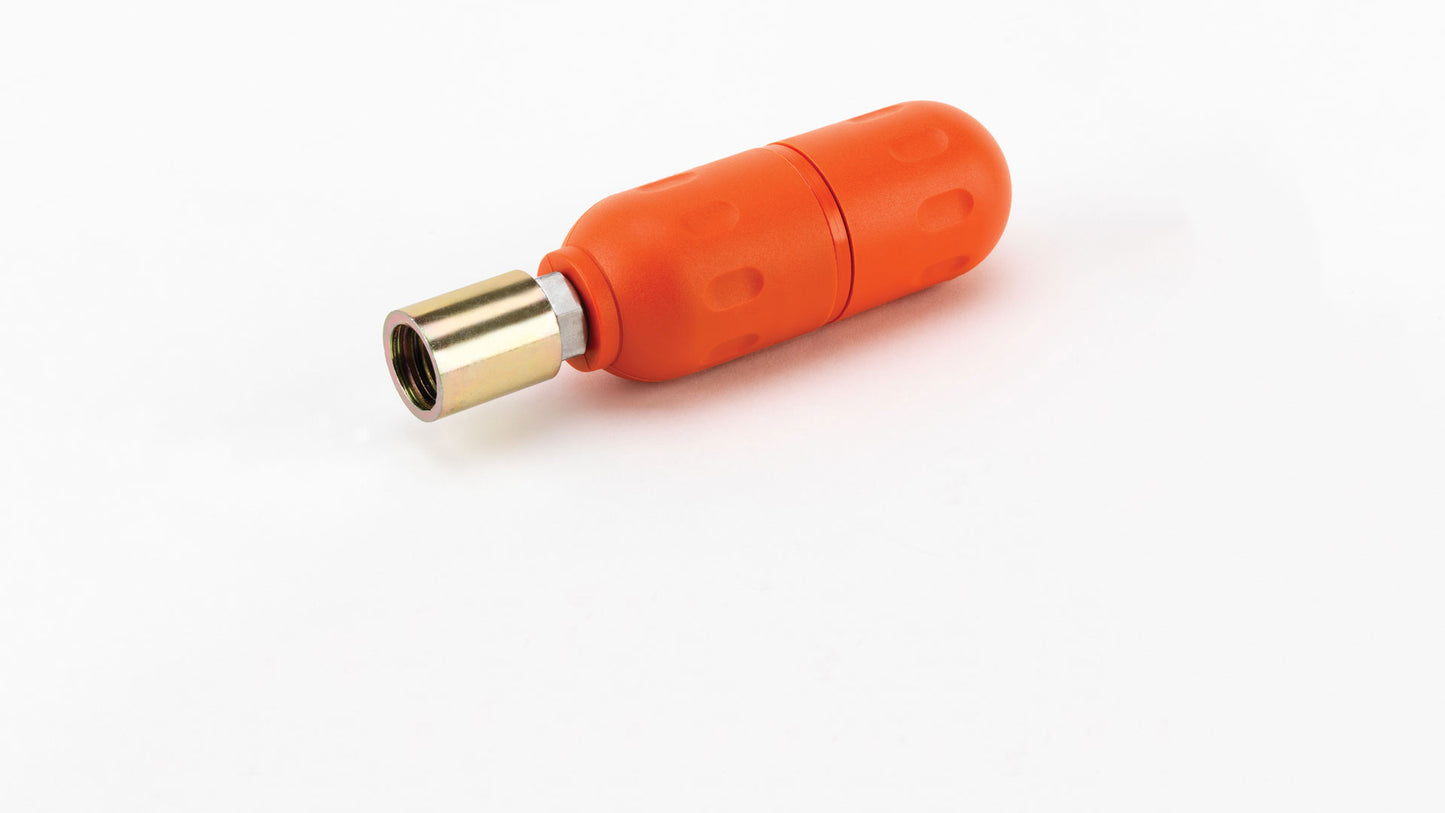

A C.Scope 33kHz General Purpose Sonde is a small battery powered transmitter hermetically sealed in a robust torpedo shaped case which which can be screwed onto the end of a drain rod and fed into a pipe. The pipe direction can be then be traced using a C.Scope Locator set to Generator/ Transmitter Mode. The location of a pipe blockage can be identified using this system with enormous cost saving potential.

** As standard the Sonde is supplied from the manufacture with drain rod adaptor.

Our Duct rod adaptor can be found HERE

OVERVIEW

• Orange case to identify the 33kHz version.
• 33kHz transmit signal allowing detection and tracing.
• Simple to use.
• Very robust.
• Single AA battery operation.
• Fully weatherproof design to IP65.
• Adaptors available for different Drain Rod types.

Specification

Product Name
General Purpose Sonde 33kHz

Part No.
SKU 125-7-1 // YIRS-33

Construction
Waterproof robust plastic.

Operating frequency
32768Hz continuous.

Range
5 – 7 metres dependant on Locator.

Dimensions
38mm diameter
102mm length.

Fitting
M10 stud

Battery
1 x AA (IEC type LR6) typically giving up to 50 hours intermittent use at 20C.

Downloads

General Purpose Sonde (33KHz) Manual
