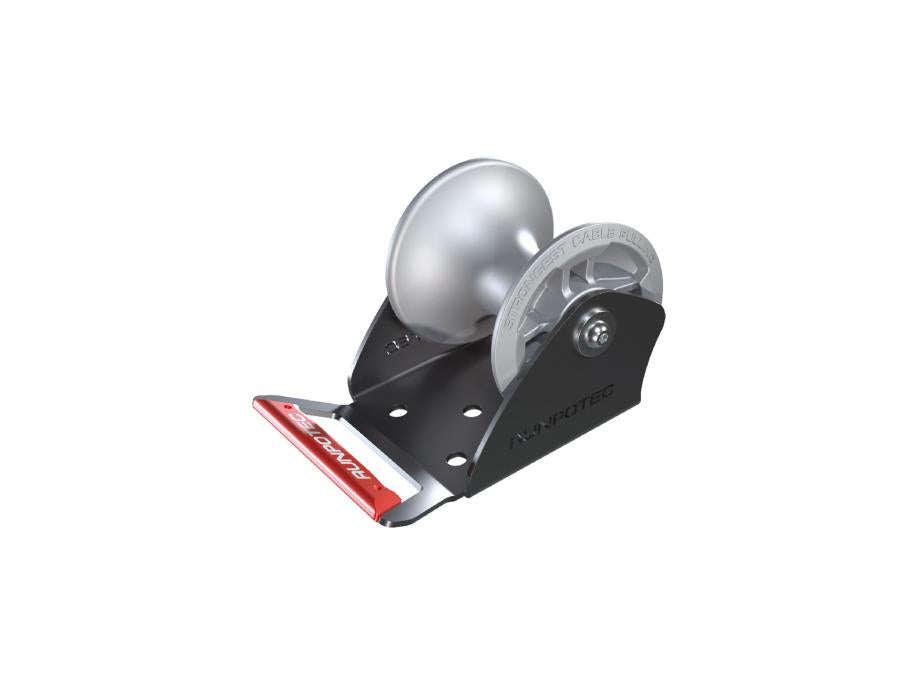

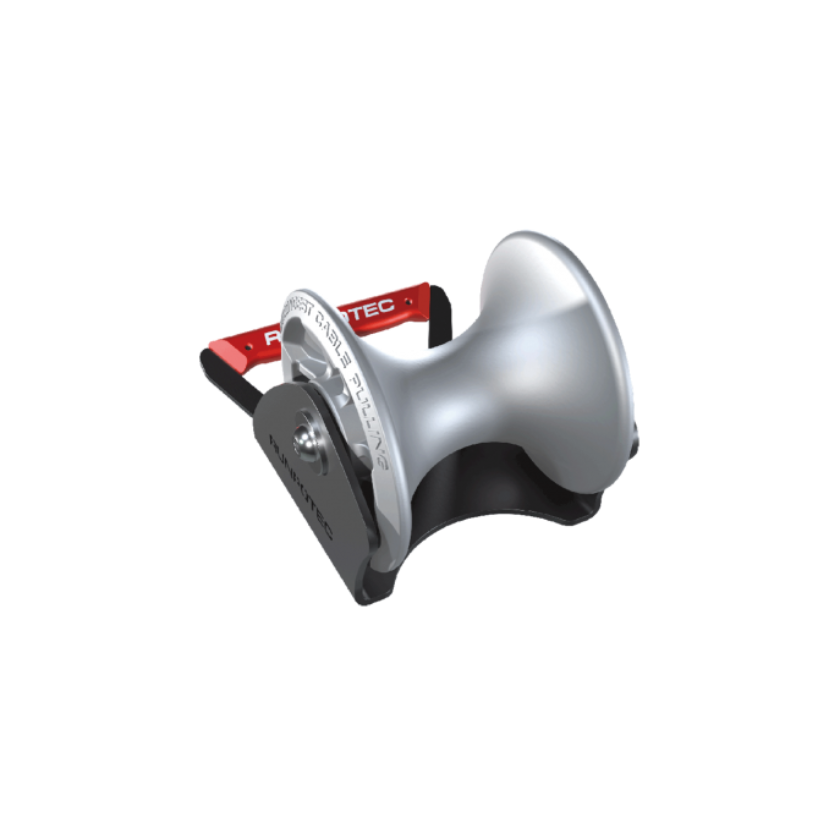

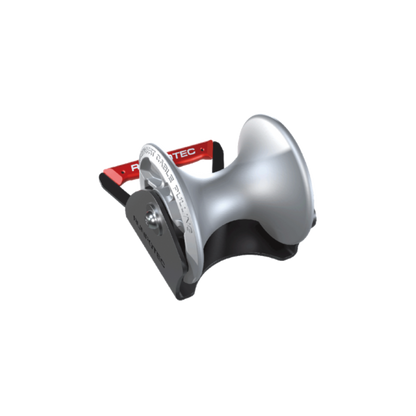

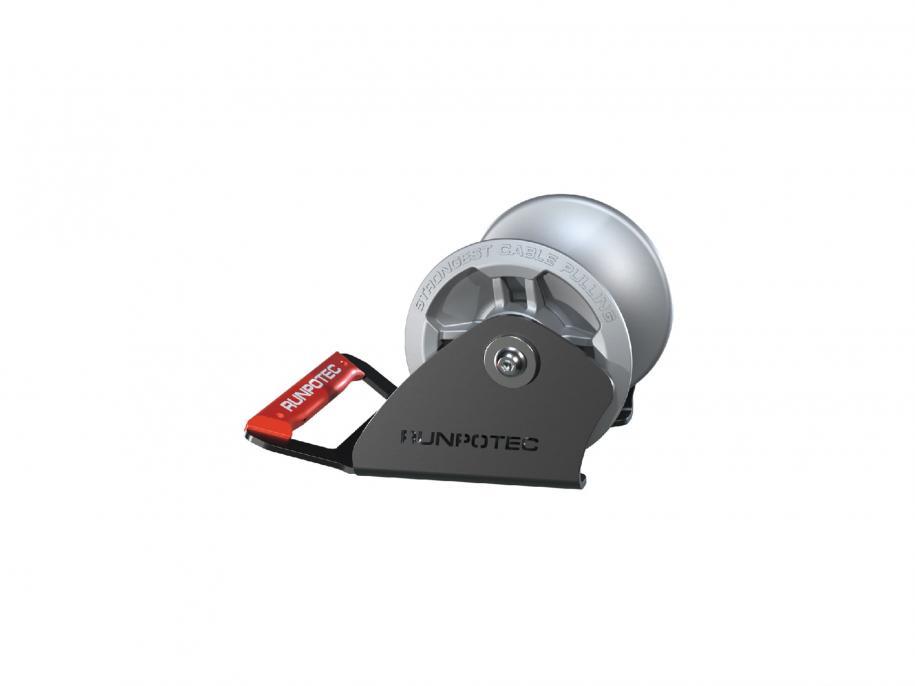

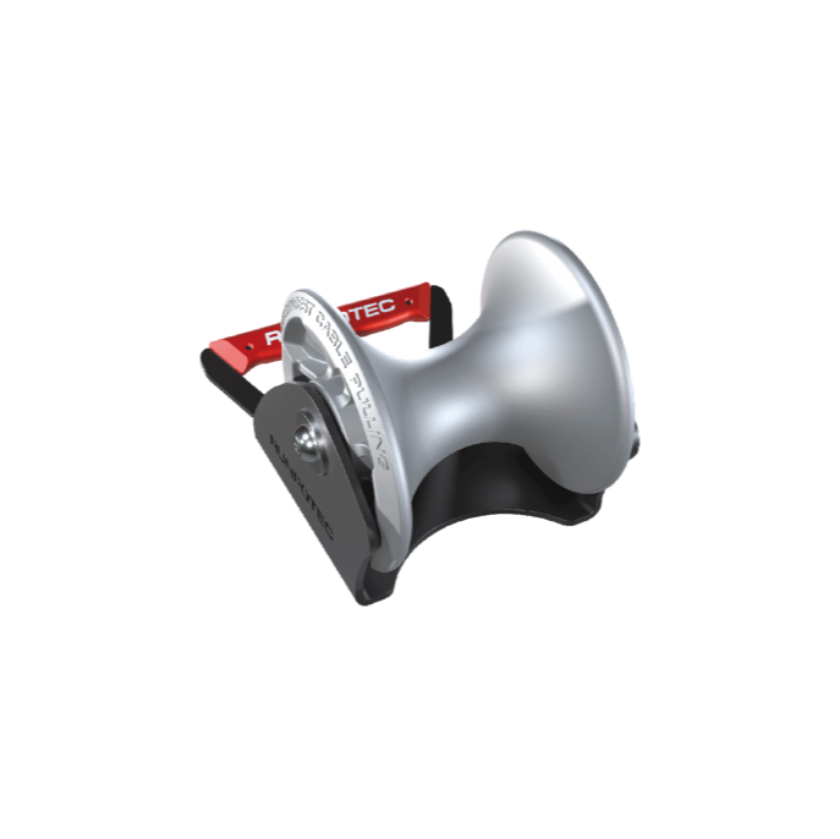

The cable guide roller - shaft is ideally suited for mounting in shafts to pull cables gently around corners with the least possible resistance. It can be secured in place with screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life.

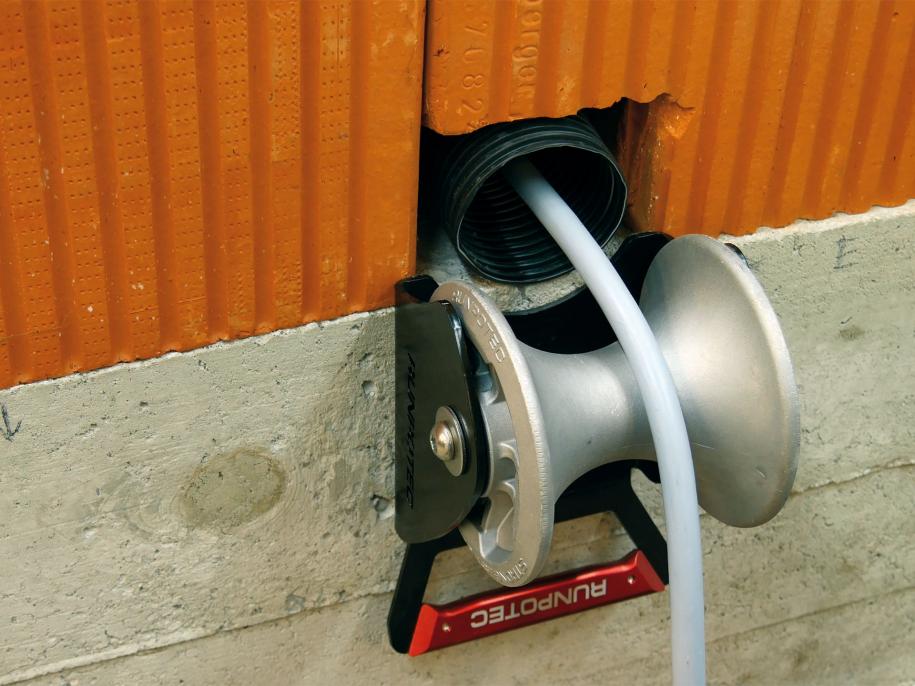

Optimum area of application: to pull cables in shafts gently and effortlessly around corners
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x cable guide roller - shaft

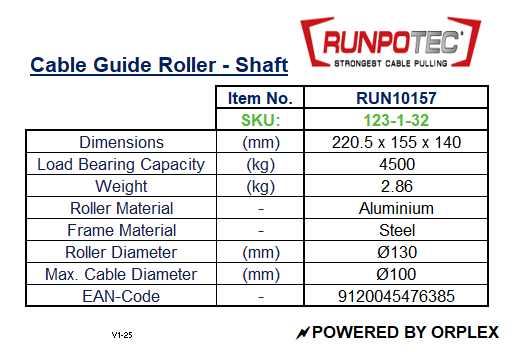

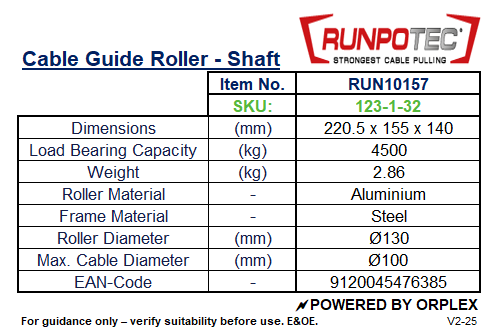

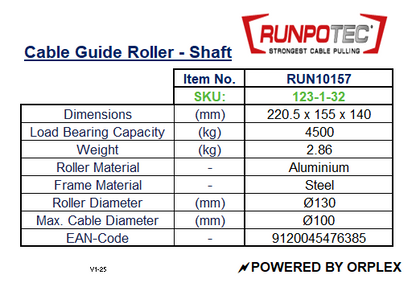

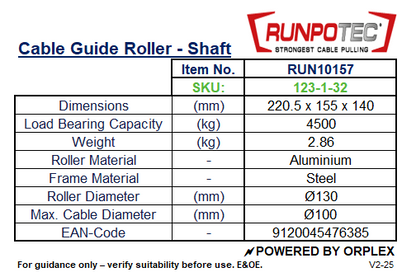

Dimensions: |
L 220,5 x B 155 x H 140 mm |
Weight: |
2,86 kg |
Material: |
Roller: Aluminium / Frame: Steel |
Load bearing capacity: |
1500 kg |
Max. cable diameter: |
Ø 100 mm |
Roll diameter: |
Ø 130 mm |
EAN-Code: |
9120045476385 |
