Gebuwin
SKU: 156-20-1
Gebuwin
SKU: 156-20-1
Read MoreIn stock (9)
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk
Through PayPal Credit - Find out more

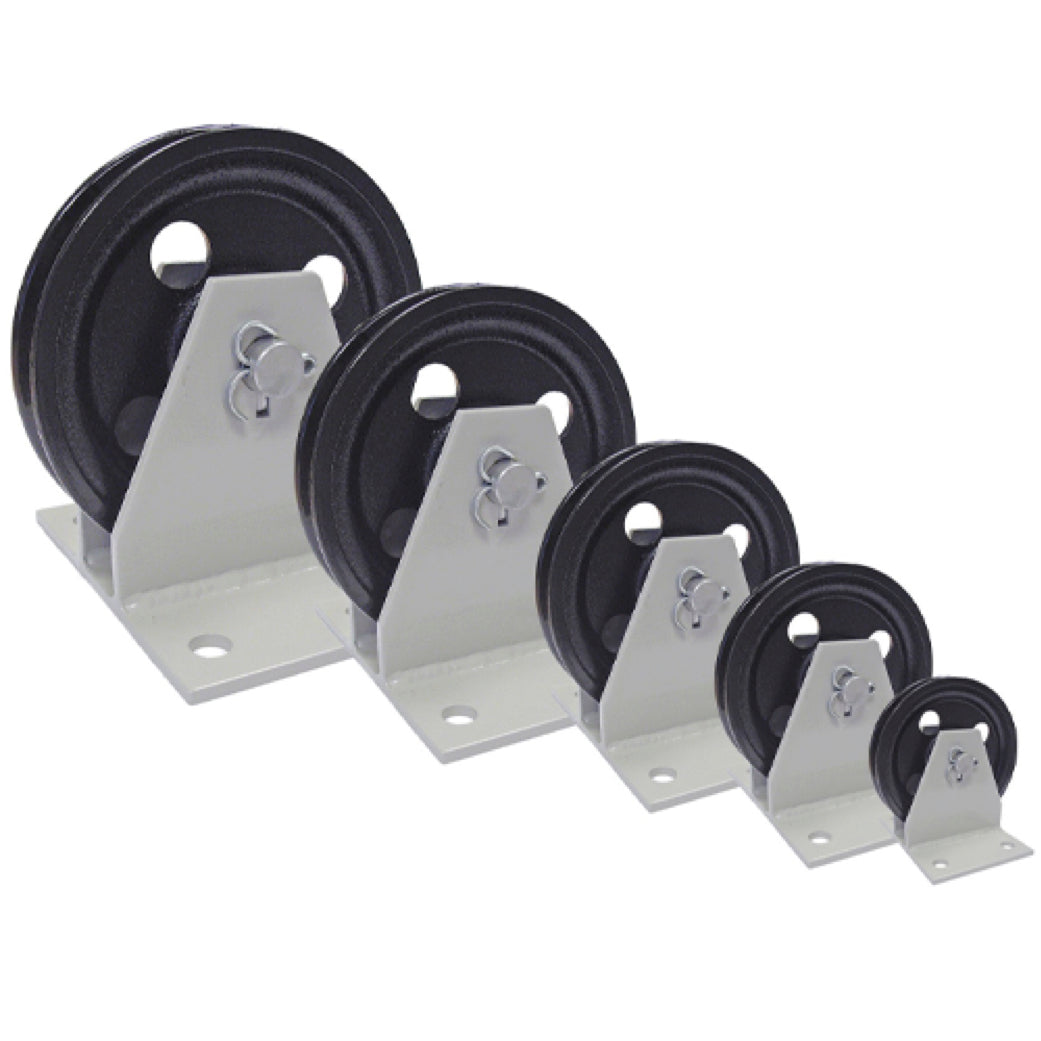

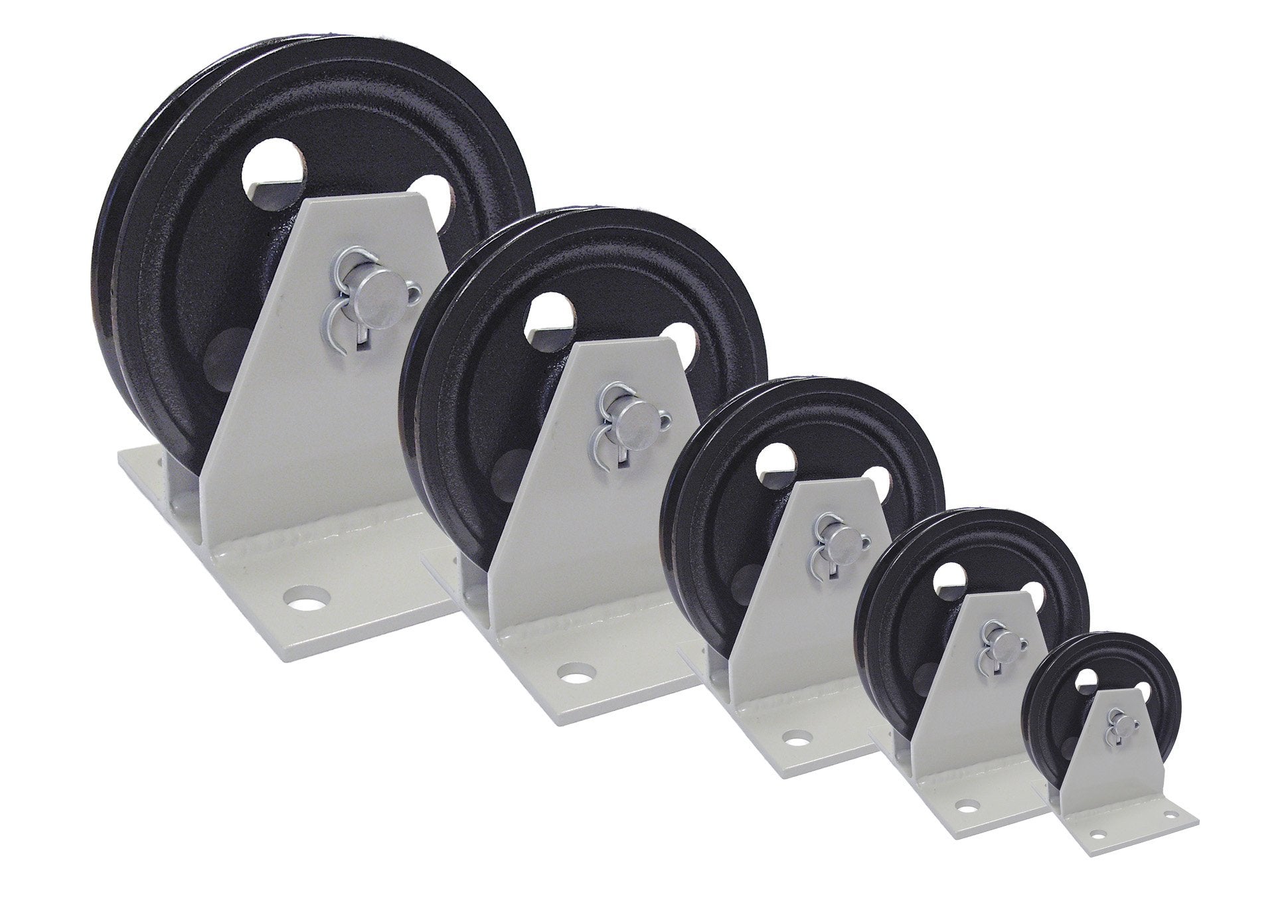

The Gebuwin pedestals are solidly manufactured and are specially developed for hand winch applications. The cable pulleys are manufactured from cast iron and the blocks from steel. The pedestals are supplied painted in grey/ black. The cable pulleys are fitted with a sliding bearing.
Please note, if the quantity you require is more than the quantity shown on our website, please email sales@rigginguk.co.uk for a quotation including lead-time from order.
The coding for the Pulleys is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment of the product. The explanation for the coding is as follows:
Type coding:
KB = Pedestal
Version coding:
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1
EV = electrolyte zinc plated, min. 6 microns
Quick Spec Data
| SKU | 156-20-1 | 156-20-2 | 156-20-3 | 156-20-4 | 156-20-5 | 156-20-6 | 156-20-7 | |
| Model | KB150 | KB300 | KB600 | KB1500 | KB2000 | KB4000 | KB7500 | |
| Max Capacity | (kg) | 150 | 300 | 600 | 1500 | 2000 | 4000 | 7500 |
| Max DIA Cable | (mm) | 4 | 4 | 6 | 10 | 12 | 16 | 21 |
| DIA of Pulley Wheel | (mm) | 90 | 100 | 120 | 155 | 220 | 260 | 310 |
| Bore | (mm) | 14.1 | 14.1 | 25.1 | 25.1 | 35.1 | 35.1 | 45.1 |
| Weight | (kg) | 1 | 1 | 1.5 | 3 | 6.5 | 11.5 | 21 |
Gebuwin KB Pulley with Bracket Data Sheet
