Camlok ACH 3300kg Adjustable Horizontal Plate Clamp

Camlok ACH 3300 Adjustable Horizontal Plate Clamp - 3300kg W.L.L

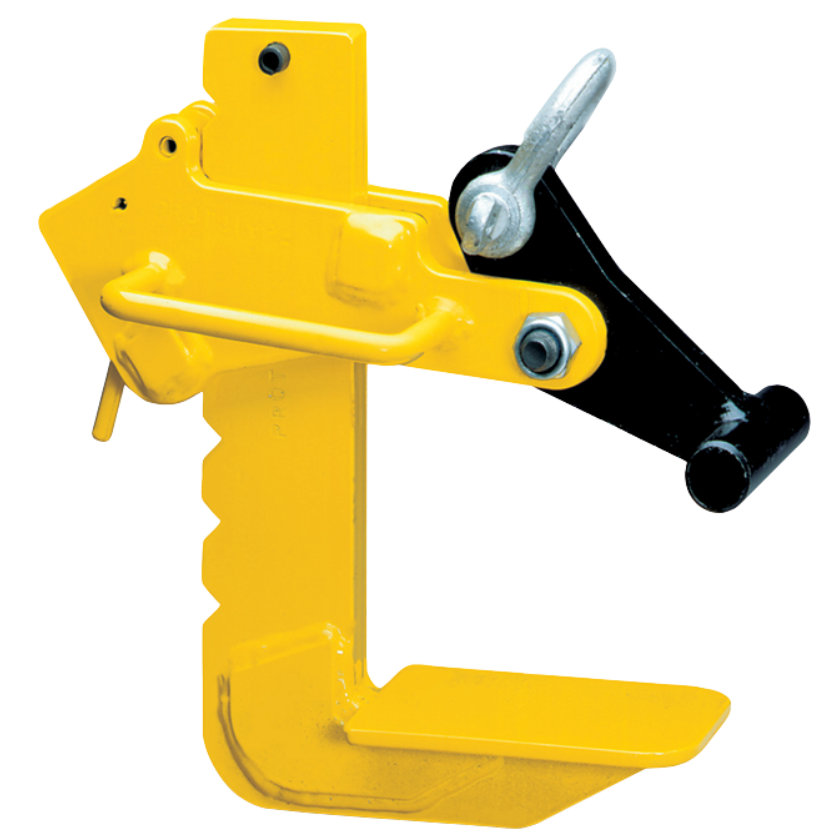

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple ratchet mechanism.

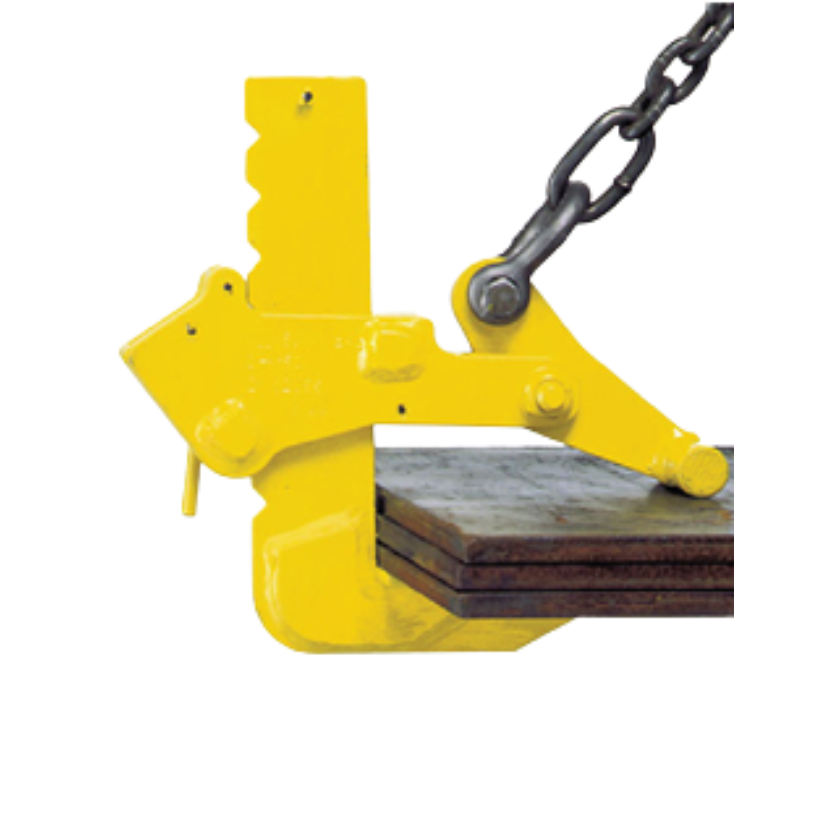

These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Info

The sling angle from the vertical must not exceed 45°!

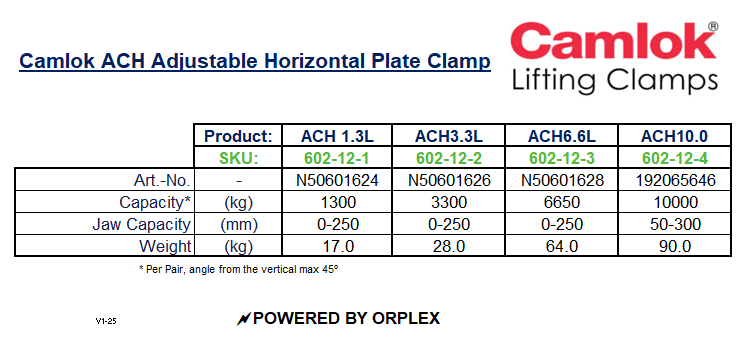

The capacity applies to a pair of lifting clamps.

Use a spreader beam for larger plates.

Chain slings and shackle are not included.
