Description

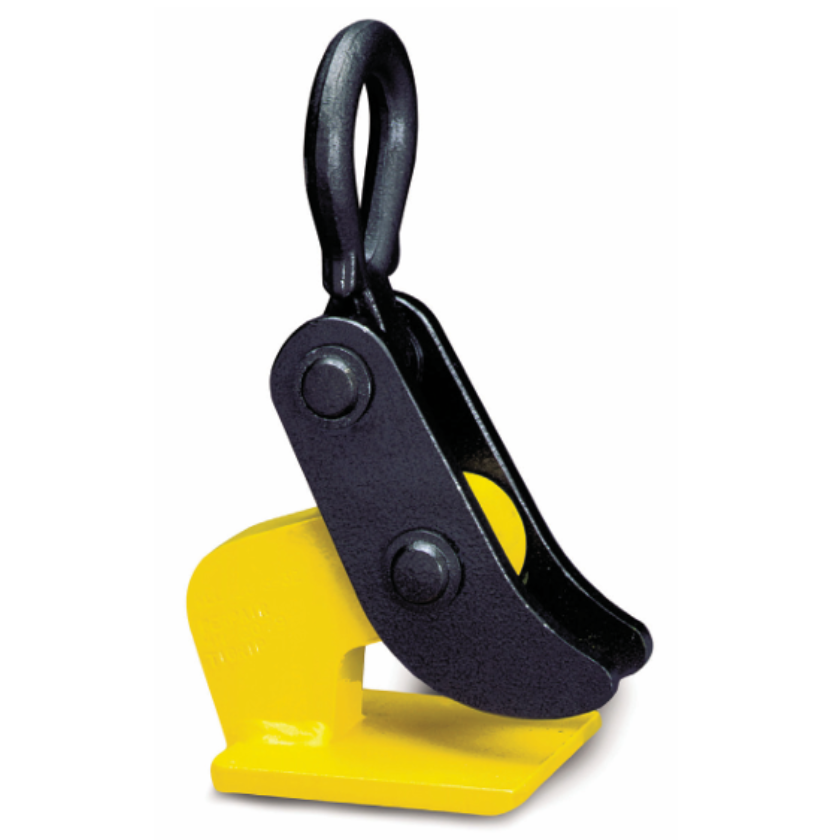

Camlok CH Horizontal Plate Clamp – Smooth Jaw

Industry standard horizontal plate clamps

Working load limit (WLL) 1000 - 10000 kg

The CH horizontal plate clamps have been specifically designed to be used in pairs for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.

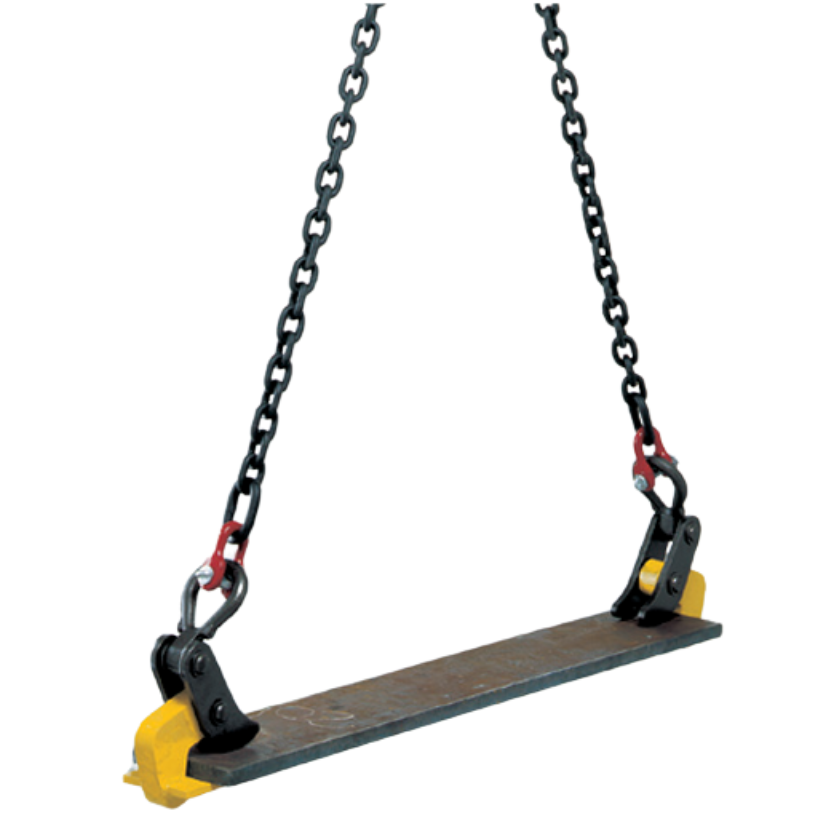

A pair of clamps used with a two legged chain sling are suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for handling larger plates. These units are supplied as standard with a smooth jaw. There is also the option of hardened steel serrated jaws for special applications.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Info

These units must not be used with endless chain slings.

The angle between the chain legs must not exceed 45° from the vertical.

The capacity applies to a pair of lifting clamps.

Chain slings are not included.

CH Smooth Jaw Clamps with a W.L.L. of 8000kg or higher currently have a lead time of 4-6 weeks. Please email our sales team sales@rigginguk.co.uk with your requirements for a personalised quote.

Key

  • W.L.L Working Load Limit
  • (JC) Jaw Capacity

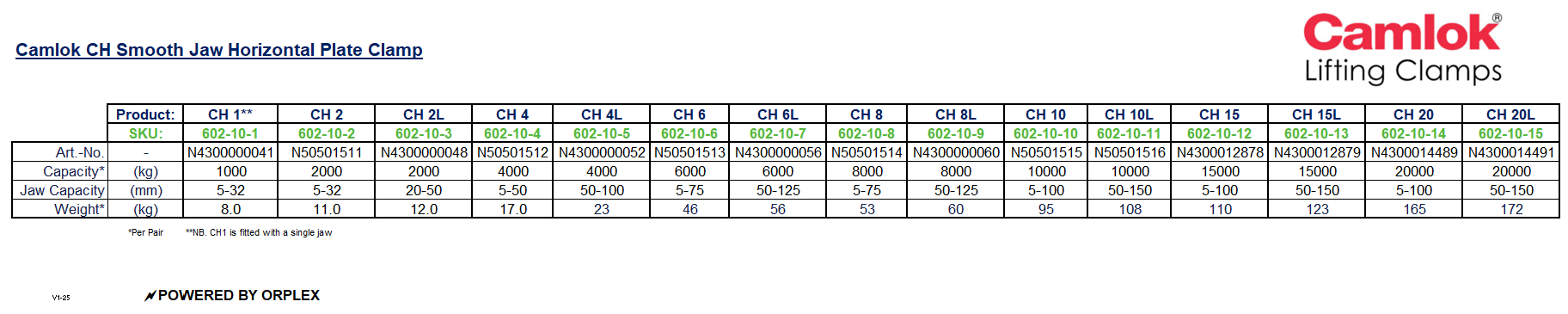

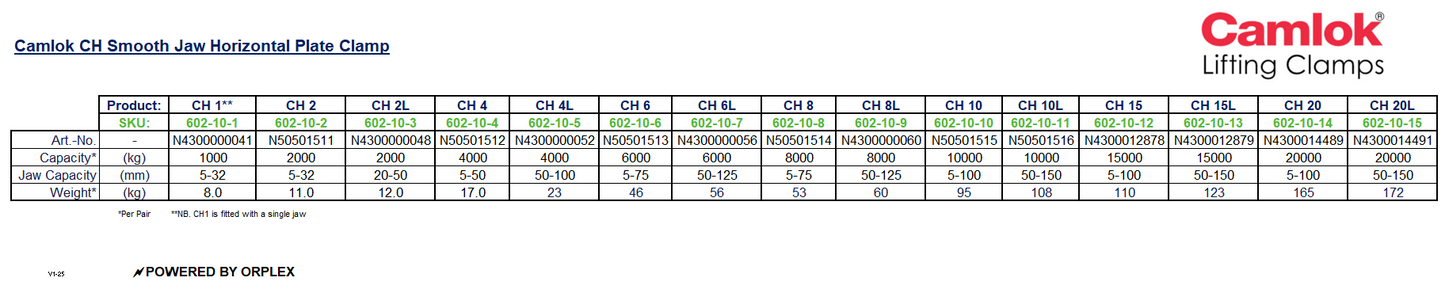

Specification

Specification

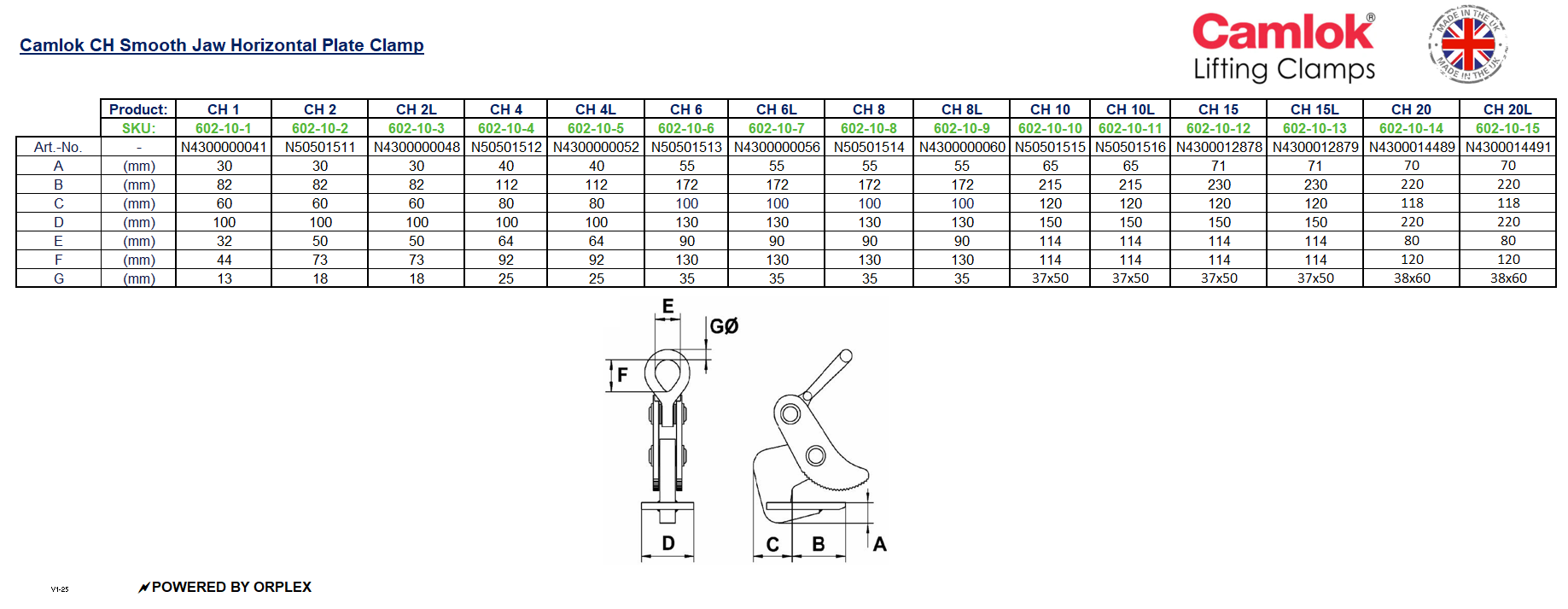

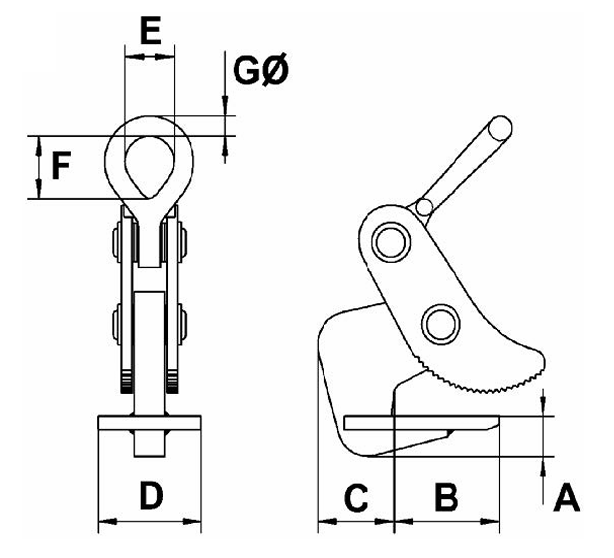

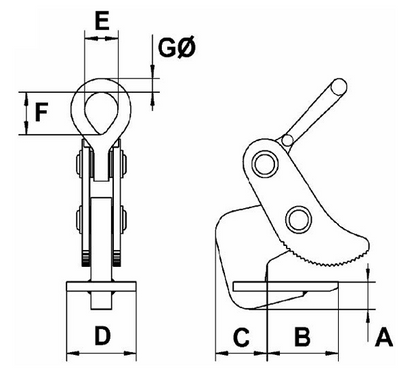

Dimensions
