CAMLOK

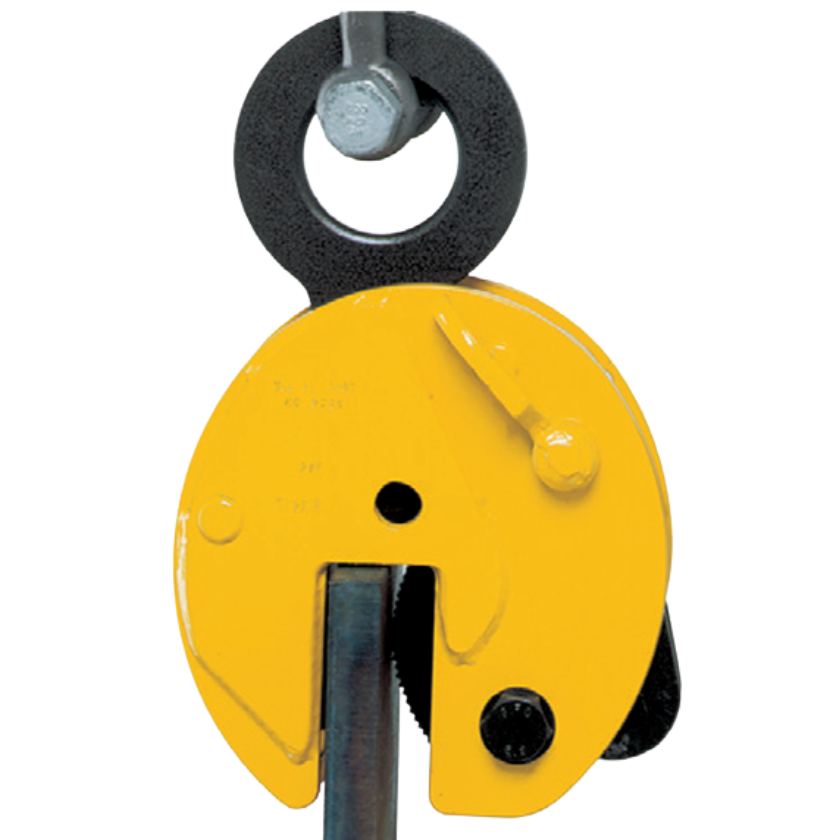

Camlok CZ Heavy Duty Hook Ring Plate Clamp with Lock

Camlok CZ Heavy Duty Hook Ring Plate Clamp with Lock

SKU: 602-2-1

Read More
Regular price £299.89
Regular price RRP Sale price TODAY'S PRICE £299.89

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

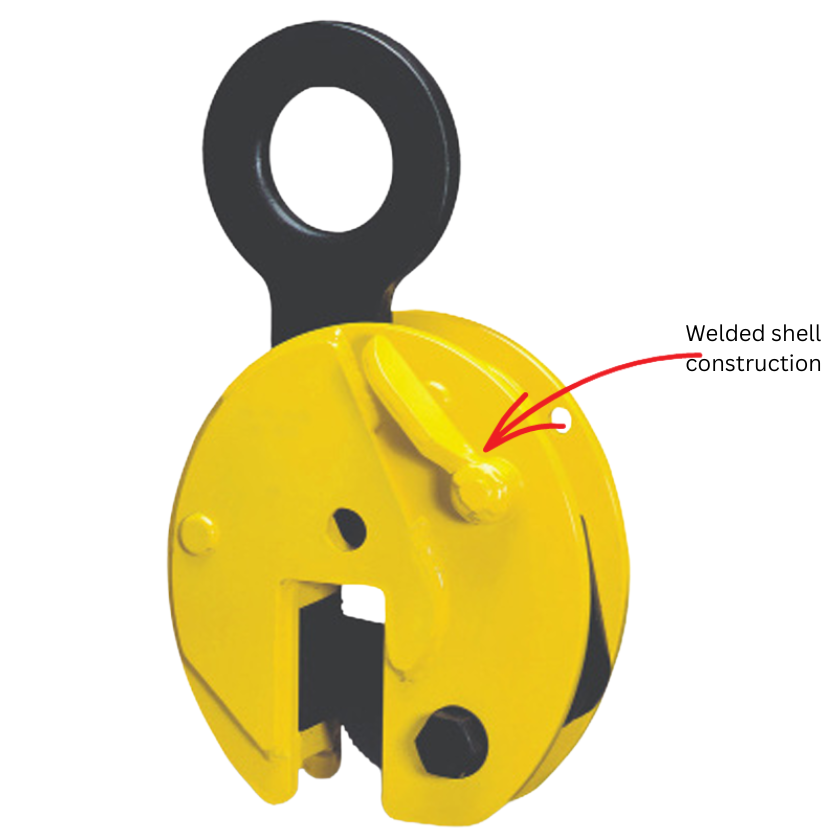

Camlok CZ Heavy Duty Hook Ring Plate Clamp with Safety Lock

Capacity 100 - 30000 kg
These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.

They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long plate.

The CZ hook ring plate clamps with a W.L.L. of 8000kg or higher have a current lead time of 4-6 weeks. Please contact our sales team sales@rigginguk.co.uk with your requirements for a personalised quote.

Function

The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the
jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Note: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300

Key

  • (HR) Hook Ring
  • (LC) Link and Chain
  • W.L.L Working Load Limit
  • (JC) Jaw Capacity

Specification

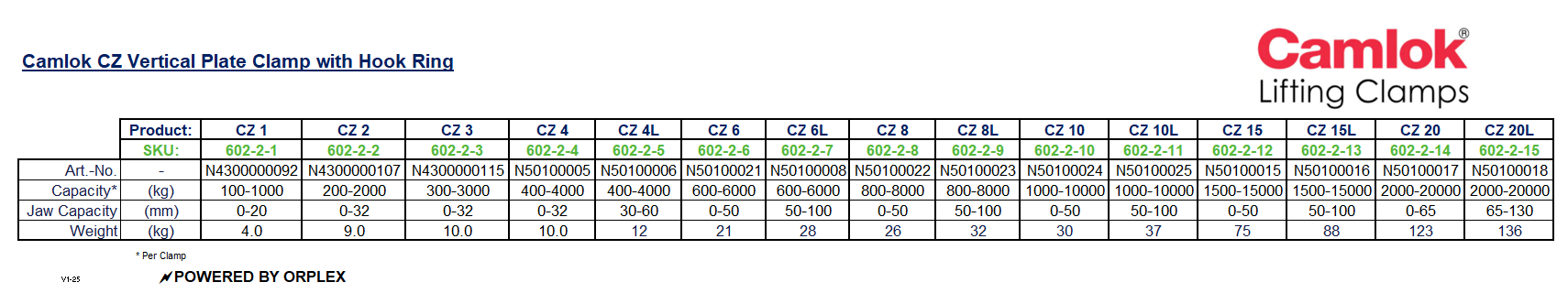

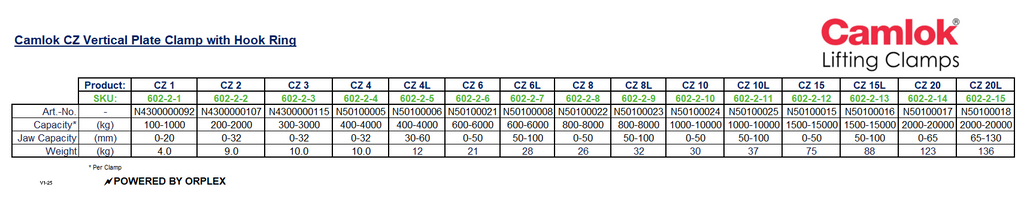

Specification

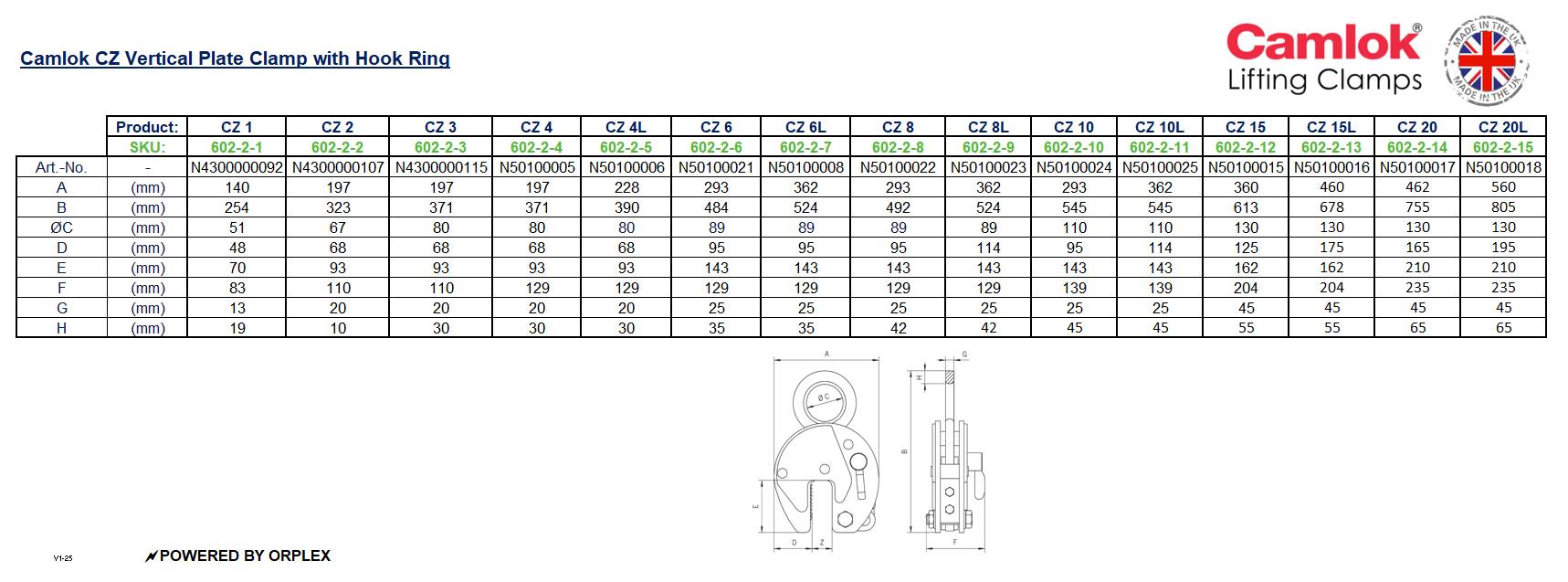

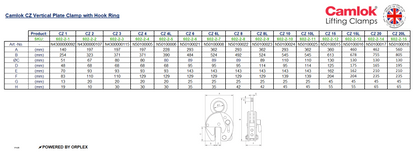

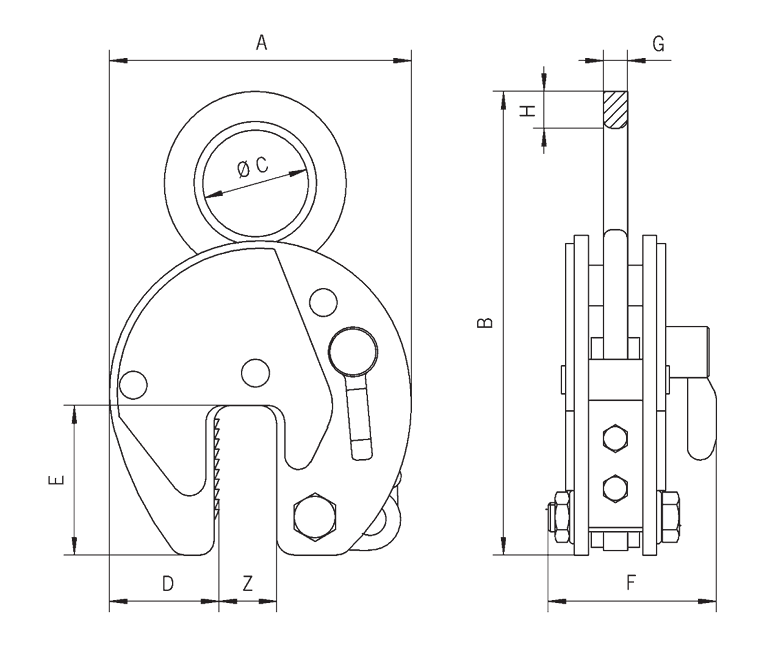

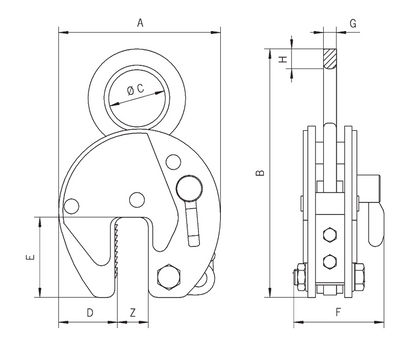

Dimensions
