Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X

Name: Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X
Brand: Cartec
SKU: 286-617-1
Price: 56.70 GBP
Availability: InStock

Cartec SKU: 286-617-1

Pre-order today – estimated dispatch within 3–4 weeks

1 1

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X Grade 10 high resistant alloy steel. Black painted finish. Minimum breaking load... Read More

Cartec SKU: 286-617-1

View more cartec grade 10 lifting lashing points

More From cartec

Product variants

£56.70

Sale TODAY'S PRICE £56.70

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Pre-order today – estimated dispatch within 3–4 weeks

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 to 4 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

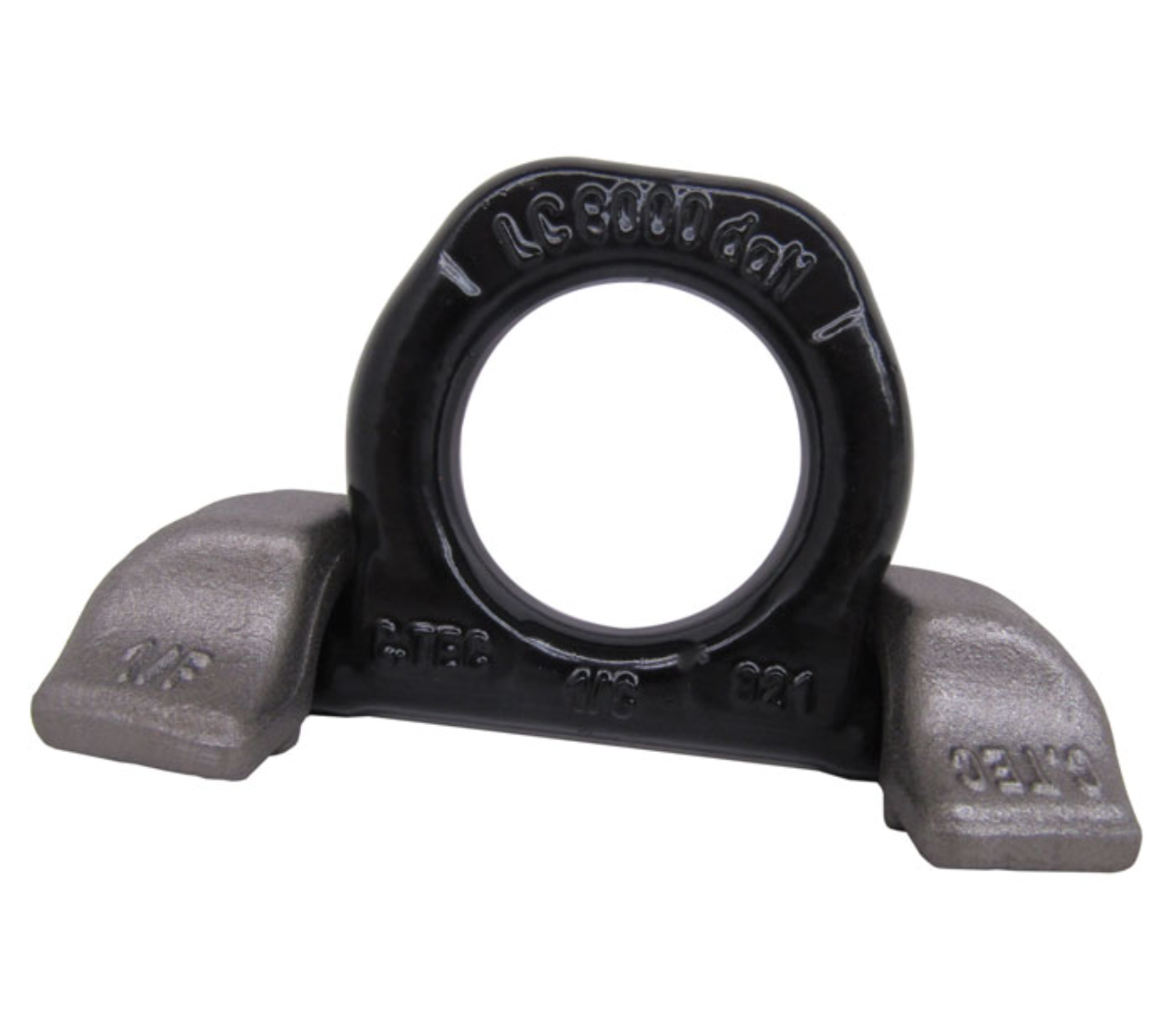

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X

Grade 10 high resistant alloy steel.
Black painted finish.
Minimum breaking load is 2 times the W.L.L.
The entire perimeter of the base must be welded except for the water discharge area.
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
Full CAD support available upon request.
Certification - Declaration Of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

Spec

SKU	W.L.L.	A	B	C	D	E	F	G	H	Welding Thickness	Weight
	daN	mm	mm	mm	mm	mm	mm	mm	mm	HV + Δa	kgs
286-617-1	8,000	14	65	48	29	134	14	60	79	HV 4+3	0.73
286-617-2	13,000	20	83	60	39	169	16	88	103	HV 5.5+3	1.8
286-617-3	20,000	22	96	65	48	196	19.5	98	118	HV 6+4	3
286-617-4	32,000	31	126	90	55	264	29	127	155	HV 8.5+4	5.75
