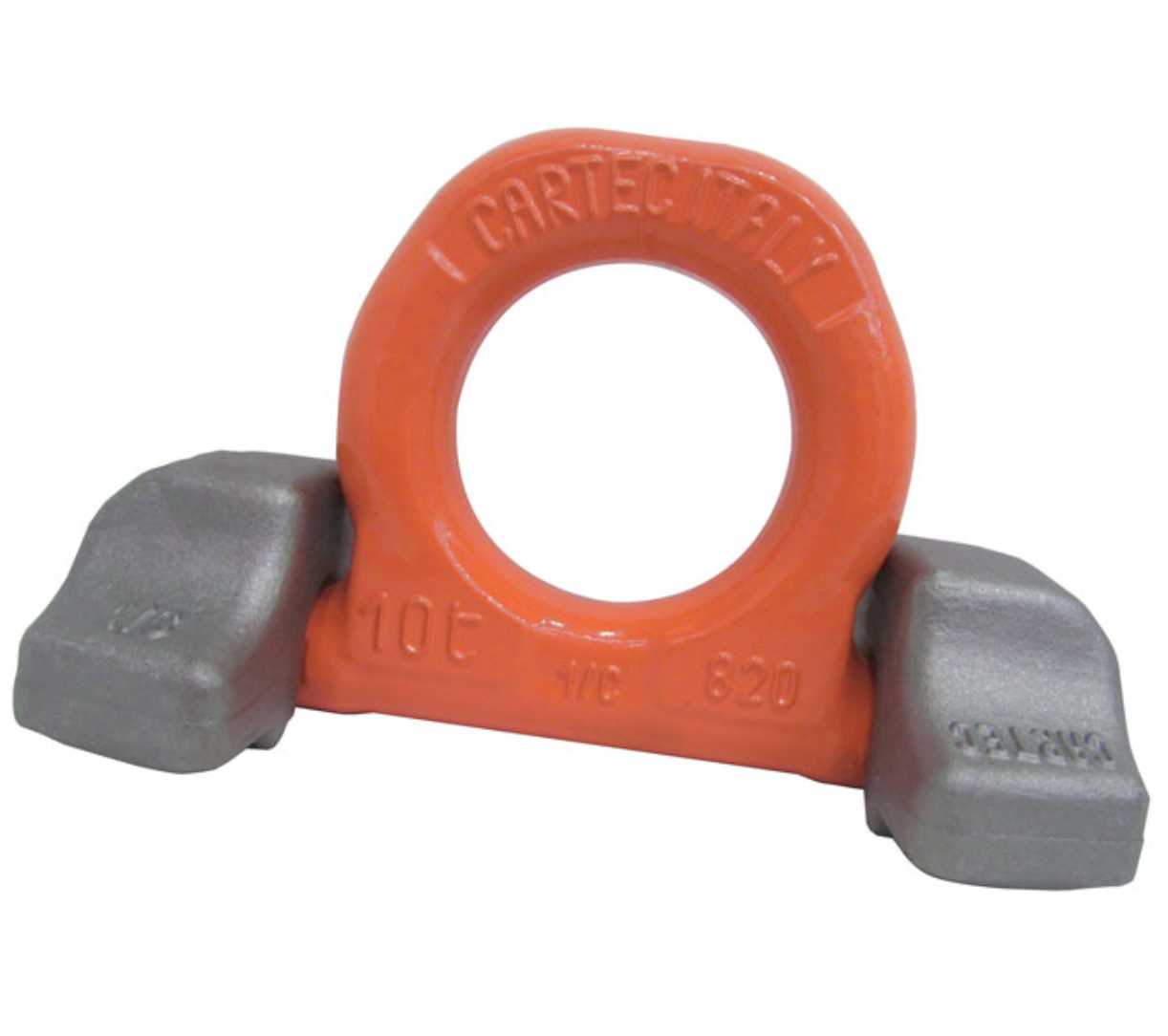

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

SKU: 286-618-1

Read More
Regular price £62.42
Regular price RRP Sale price TODAY'S PRICE £62.42

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X
  • Grade 10 high resistant alloy steel.
  • Black painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • The entire perimeter of the base must be welded except for the water discharge area.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification - Declaration Of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

      SKU W.L.L. A B C D E F G H Welding Thickness Weight
      t mm mm mm mm mm mm mm mm HV + Δa kgs
      286-618-1 4 14 65 48 29 134 14 60 79 HV 4+3 0.73
      286-618-2 6.7 20 83 60 39 169 16 88 103 HV 5.5+3 1.8
      286-618-3 10 22 96 65 48 196 19.5 98 118 HV 6+4 3
      286-618-4 16 31 126 90 55 264 29 127 155 HV 8.5+4 5.75
      286-618-5 30 42 175 130 79 371 45 157 217 HV 15+4 16
