Cartec

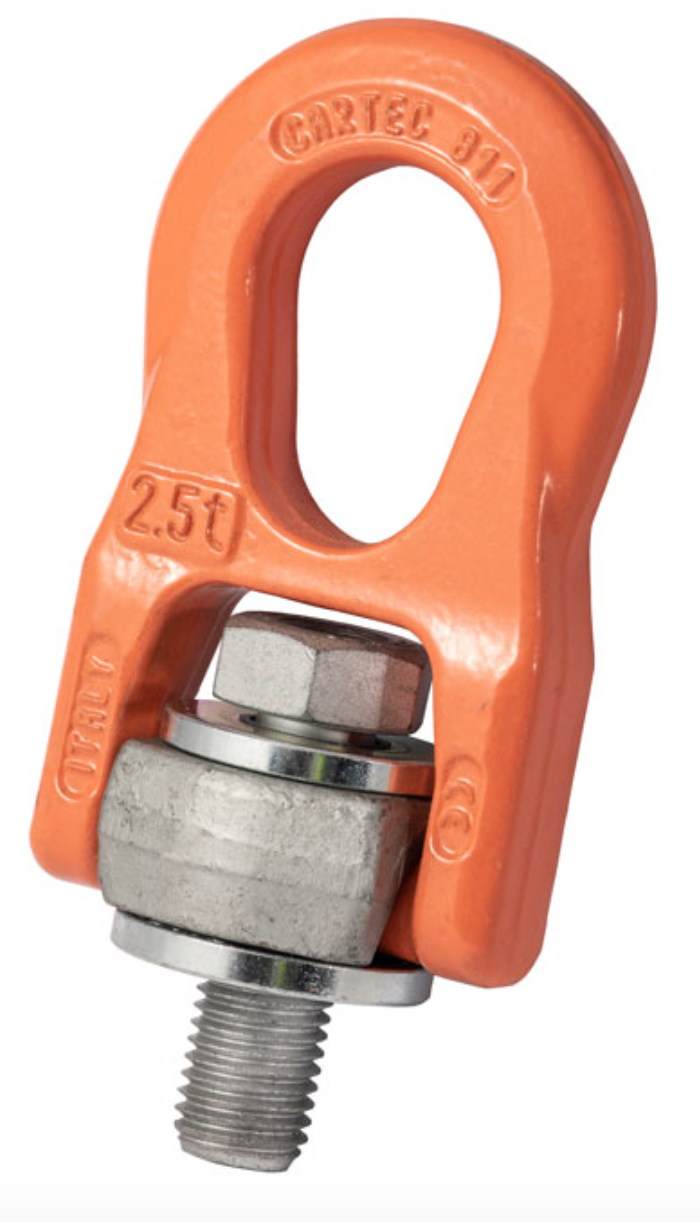

Cartec Grade 10 Heavy Lift Swivel Hoist - 811X

Cartec Grade 10 Heavy Lift Swivel Hoist - 811X

SKU: 286-613-1

Read More
Regular price £108.58
Regular price RRP Sale price TODAY'S PRICE £108.58

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Cartec Grade 10 Heavy Lift Swivel Hoist - 811X
  • Grade 10 alloy steel.
  • Pink painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Can be oriented at 360°.
  • Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Not suitable for rotating under load.
  • Full CAD support available upon request.
  • Certification - Declaration of Conformity
Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

      SKU D L W.L.L. A B C E F G
      mm mm t mm mm mm mm mm mm
      286-613-1 M8 12 0.3 56 28 14 30 55 11
      286-613-2 M10 15 0.6 56 28 14 30 55 11
      286-613-3 M12 18 1 56 28 14 30 55 11
      286-613-4 M14 21 1.3 74.5 38 18 47 78 17
      286-613-5 M16 25 1.6 74.5 38 18 47 78 17
      286-613-6 M18 27 2 74.5 38 18 47 78 17
      286-613-7 M20 30 2.5 74.5 38 18 47 78 17
      286-613-8 M22 33 3 106 56 25 62 114.5 22
      286-613-9 M24 36 4 106 56 25 62 114.5 22
      286-613-10 M27 40 5 106 56 25 62 114.5 22
      286-613-11 M30 45 6.3 106 56 25 62 114.5 22



      SKU H J K CH ch Torque Weight
      mm mm mm mm mm Nm kgs
      286-613-1 99 40 33.5 13 5 10 0.375
      286-613-2 99 40 34.5 17 6 15 0.375
      286-613-3 99 40 35.5 19 7 25 0.375
      286-613-4 135.5 55 46 22 7 30 1.3
      286-613-5 135.5 55 46.5 24 10 60 1.3
      286-613-6 135.5 55 47 27 10 100 1.3
      286-613-7 135.5 55 48 30 12 120 1.3
      286-613-8 198.5 84 63.5 32 12 130 4
      286-613-9 198.5 84 64.5 36 14 200 4
      286-613-10 198.5 84 66.5 41 14 250 4
      286-613-11 198.5 84 68 46 17 350 4
