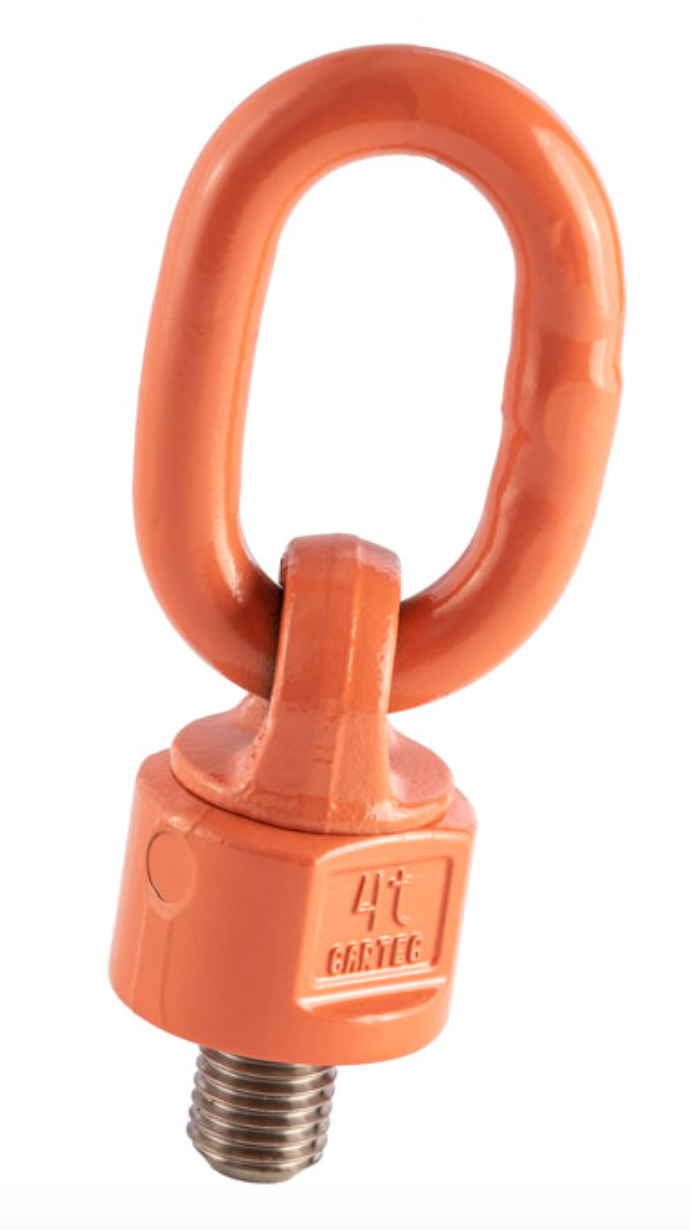

Cartec Grade 10 Rotating Eyebolt with Ring - 800X

Name: Cartec Grade 10 Rotating Eyebolt with Ring - 800X
Brand: Cartec
SKU: 286-611-1
Price: 82.60 GBP
Availability: InStock

Cartec SKU: 286-611-1

1 1

Cartec Grade 10 Rotating Eyebolt with Ring - 800X Grade 10 alloy steel. Pink painted finish. Designed, tested and certified in compliance with the technical directives... Read More

£82.60

Sale TODAY'S PRICE £82.60

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 10 lifting lashing points

Description

Cartec Grade 10 Rotating Eyebolt with Ring - 800X

Grade 10 alloy steel.
Pink painted finish.
Designed, tested and certified in compliance with the technical directives GS-OA15-04 – BS EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360° with self aligning tilting ring at 180°.
On the axial pull there can be variation of +/-5° with a 10% decrease in capacity.
Not suitable for continuous rotation under load.
Full CAD support available upon request.
Certification - Declaration of Conformity

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order, depending on the capacity and quantity of order. Please phone or email for confirmed lead-times.

Specification

SKU	D	L	W.L.L	A	B	C	E	D1	H	SW	Torque	Weight
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm	Nm	kgs
286-611-1	M10	18	0.5	30	13	46	50	38	105	30	16	0.48
286-611-2	M12	18	0.7	30	13	46	50	38	105	30	28	0.5
286-611-3	M16	20	1.4	30	13	46	50	38	105	30	70	0.53
286-611-4	M20	30	1.7	30	13	46	50	38	105	30	135	0.53
286-611-5	M20	30	2.5	34	16	57	61	50	131	40	135	1.05
286-611-6	M24	30	1.7	30	13	46	50	38	105	30	230	0.53
286-611-7	M24	30	4	40	18	70	68	58	153	48	230	1.63
286-611-8	M30	35	4	40	18	70	68	58	153	48	465	1.63
286-611-9	M30	35	6.7	45	22	65	71	80	156	70	465	2.85
286-611-10	M30	45	8	50	23	91	86	90	200	80	465	4.4
286-611-11	M36	54	10	50	23	91	86	90	200	80	814	4.62
286-611-12	M42	63	12.5	50	23	91	86	90	200	80	1304	5.2
286-611-13	M45	60	12.5	50	23	91	86	90	200	80	1670	5.2
286-611-14	M48	72	12.5	50	23	91	86	90	200	80	1981	5.2
286-611-15	M45	60	16	70	32	120	112	100	262	100	1670	10.9
286-611-6	M48	60	17	70	32	120	112	100	262	100	1981	10.9
286-611-17	M56	78	18	70	32	120	112	100	262	100	3000	10.9
286-611-18	M64	96	20	70	32	120	112	100	262	100	4738	10.9
286-611-19	M64	96	28	90	45	124	165	140	333	140	4738	29
286-611-20	M72	108	31.5	90	45	124	165	140	333	140	6913	29
286-611-21	M80	120	35	90	45	124	165	140	333	140	9625	29
286-611-22	M90	135	40	90	45	124	165	140	333	140	14000	29
