Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X

Name: Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X
Brand: Cartec
SKU: 286-614-1
Price: 53.27 GBP
Availability: InStock

Cartec SKU: 286-614-1

1 1

Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X Grade 10 high resistant alloy steel. Black painted finish. Minimum breaking load is 2 times the... Read More

£53.27

Sale TODAY'S PRICE £53.27

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 10 lifting lashing points

Description

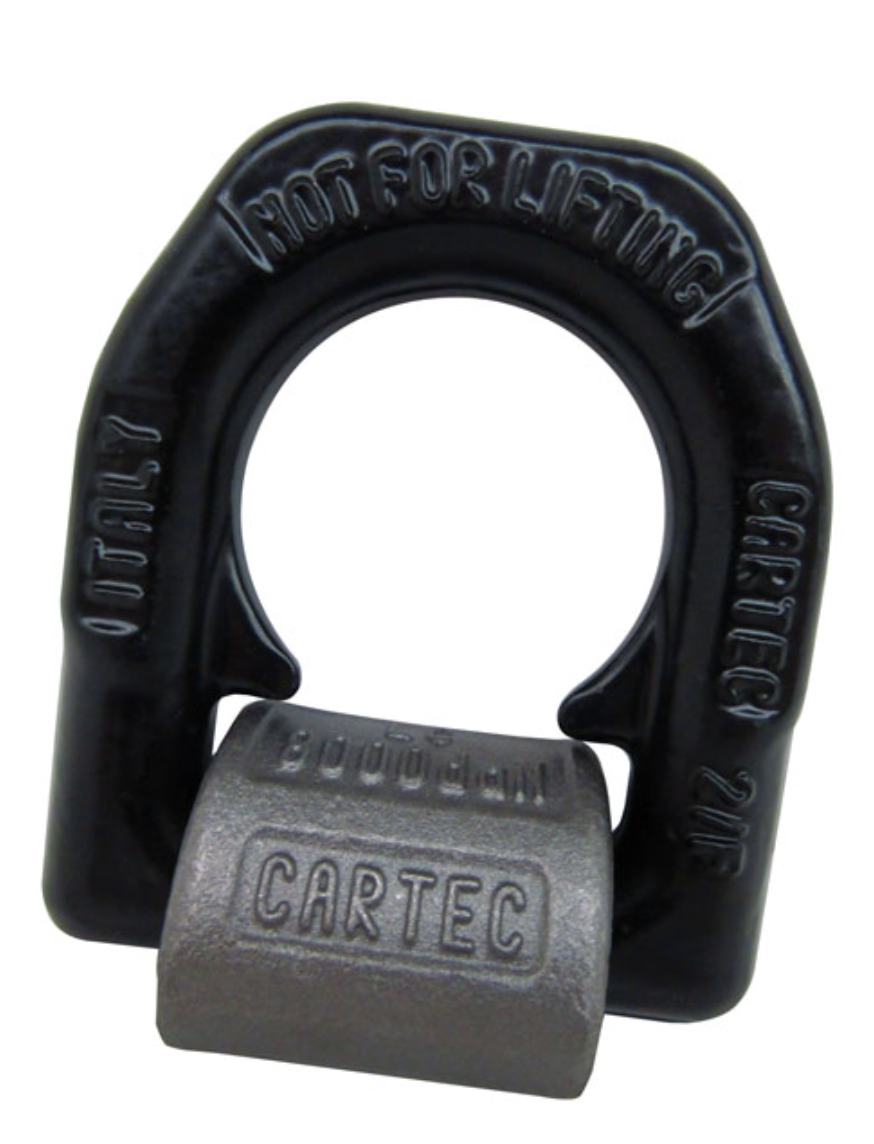

Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X

Grade 10 high resistant alloy steel.
Black painted finish.
Minimum breaking load is 2 times the W.L.L.
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
Full CAD support available upon request.
Certification - Declaration of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle

Accompanying product image

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

Specification

SKU	W.L.L.	A	B	C	D	E	F
	daN	mm	mm	mm	mm	mm	mm
286-614-1	3,000	14	65	38	25	66	16
286-614-2	5,000	16	75	45	27	677	18
286-614-3	8,000	18	84	51	32	87	20
286-614-4	13,400	24	117	67.3	44	115	26
286-614-5	20,000	31	126	67	55	129	28.5
286-614-6	32,000	45	174	100	69	190	42

SKU	G	H	Welding Thickness	Weight
	mm	mm	HV + Δa	kgs
286-614-1	31	79	HV 5+3	0.39
286-614-2	34.5	91	HV 7+3	0.59
286-614-3	40	102	HC 8+3	0.87
286-614-4	58.5	141	HV 12+4	2.23
286-614-5	70.5	157	HV 16+4	3.33
286-614-6	87	219	HV 25+6	9.28
