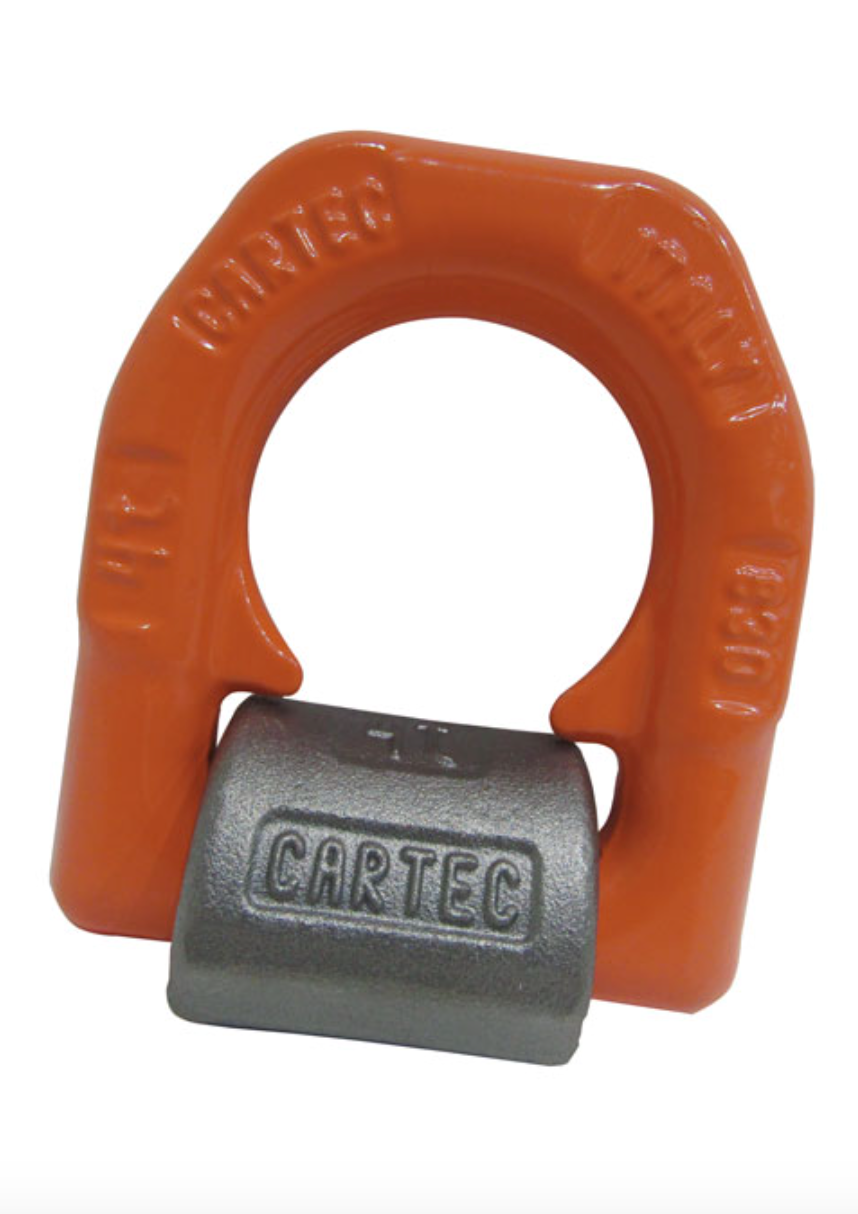

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X

Name: Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X
Brand: Cartec
SKU: 286-615-1
Price: 55.94 GBP
Availability: InStock

Cartec SKU: 286-615-1

1 1

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X Grade 10 high resistant alloy steel. Black painted finish. Minimum breaking load is 4 times the... Read More

£55.94

Sale TODAY'S PRICE £55.94

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 10 lifting lashing points

Description

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X

Grade 10 high resistant alloy steel.
Black painted finish.
Minimum breaking load is 4 times the W.L.L.
Bracket must be aligned to the pulling direction (tolerance allowed +/- 10º).
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
Full CAD support available upon request.
Certification - Declaration of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

Accompanying product image

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	Welding Thickness	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	HV + Δa	kgs
286-615-1	1.5	14	65	38	25	66	16	31	79	HC 5+3	0.39
286-615-2	2.5	16	75	45	27	77	18	34.5	91	HV 7+3	0.59
286-615-3	4	18	84	51	32	87	20	40	102	HV 8+3	0.87
286-615-4	6.7	24	117	67.3	44	115	26	58.5	141	HV 12+4	2.23
286-615-5	10	31	126	67	55	129	28.5	70.5	157	HV 16+4	3.33
286-615-6	16	45	174	100	69	190	42	87	219	HV 25+6	9.28
