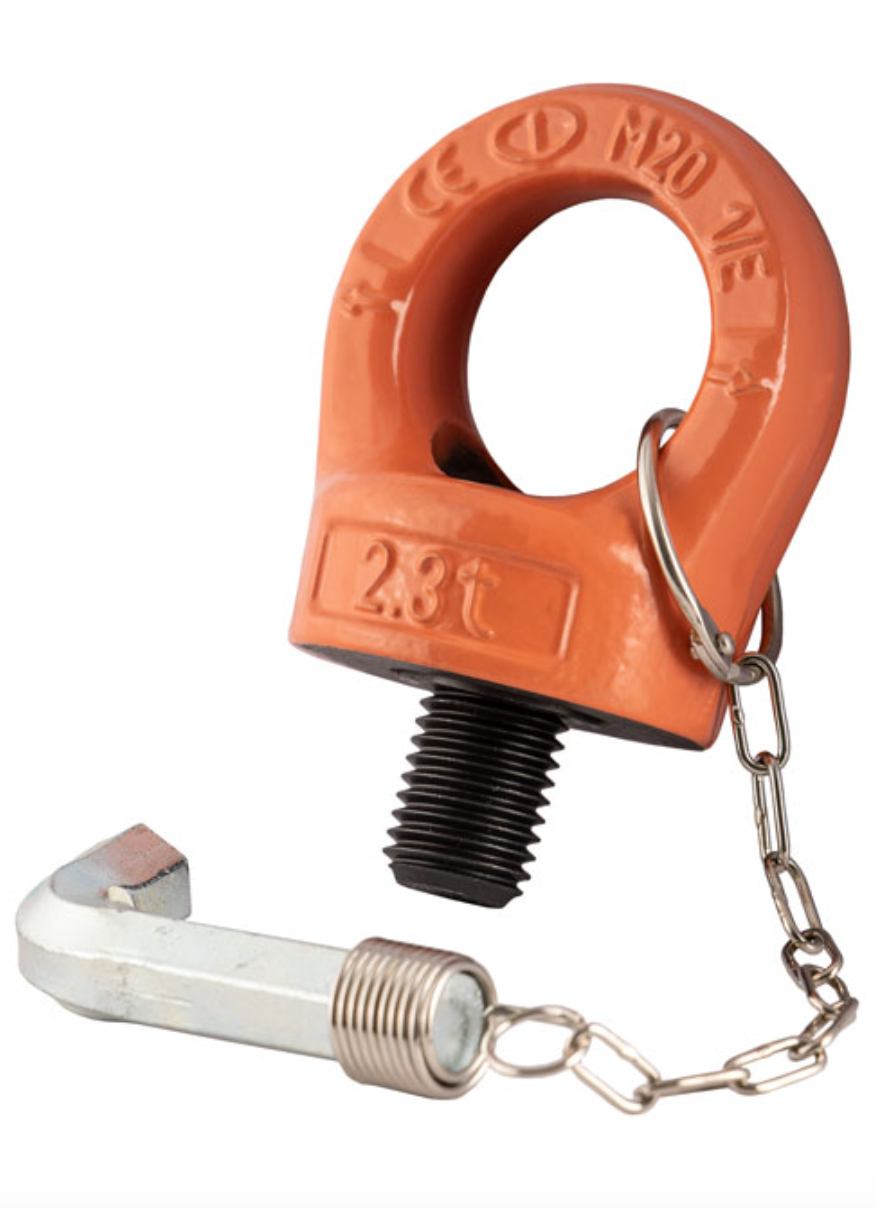

Cartec Grade 10 Swivel Eyebolt with Key - 807X

Name: Cartec Grade 10 Swivel Eyebolt with Key - 807X
Brand: Cartec
SKU: 286-616-1
Price: 67.12 GBP
Availability: InStock

Cartec SKU: 286-616-1

1 1

Cartec Grade 10 Swivel Eyebolt with Key - 807X

Cartec Grade 10 Swivel Eyebolt with Key - 807X Grade 10 alloy steel. Pink painted finish. Minimum breaking load is 4 times... Read More

Cartec SKU: 286-616-1

£67.12

Sale TODAY'S PRICE £67.12

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 10 lifting lashing points

Description

Cartec Grade 10 Swivel Eyebolt with Key - 807X

Grade 10 alloy steel.
Pink painted finish.
Minimum breaking load is 4 times the W.L.L.
Non standard threading and stem length available.
Can be oriented at 360°.
Captive screws.
On the axial pull there can be variation of +/-5º with a 10% decrease in capacity.
Not suitable for rotating under load.
Full CAD support available upon request.
Certification - Declaration of Conformity

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order, depending on the capacity and quantity of order. Please phone or email for confirmed lead-times.

Spec

SKU	D	L	W.L.L.	A	B	C	M
	mm	mm	t	mm	mm	mm	mm
286-616-1	M8	12	0.3	44.5	8	10	29
286-616-2	M10	16	0.4	44.5	8	10	29
286-616-3	M12	18	0.75	53.5	11	11	34
286-616-4	M16	24	1.5	56.5	13	14.5	39
286-616-5	M20	30	2.3	67	14	17	42
286-616-6	M24	36	3.2	80	18	19	52
286-616-7	M30	43	4.5	101	22	27	62
286-616-8	M36	54	7	125	37	38	80
286-616-9	M42	64	9	148	40	41	90
286-616-10	M48	72	12	165	45	47	95

SKU	E	K	Torque	Weight
	mm	mm	Nm	kgs
286-616-1	32	45	8	0.3
286-616-2	32	45	16	0.3
286-616-3	44	56	28	0.46
286-616-4	56	65	70	0.9
286-616-5	58	70	135	1.15
286-616-6	73	88	230	2.05
286-616-7	80	106	465	3.12
286-616-8	95	154	814	6.7
286-616-9	105	170	1304	9.5
286-616-10	120	185	1981	13.55
