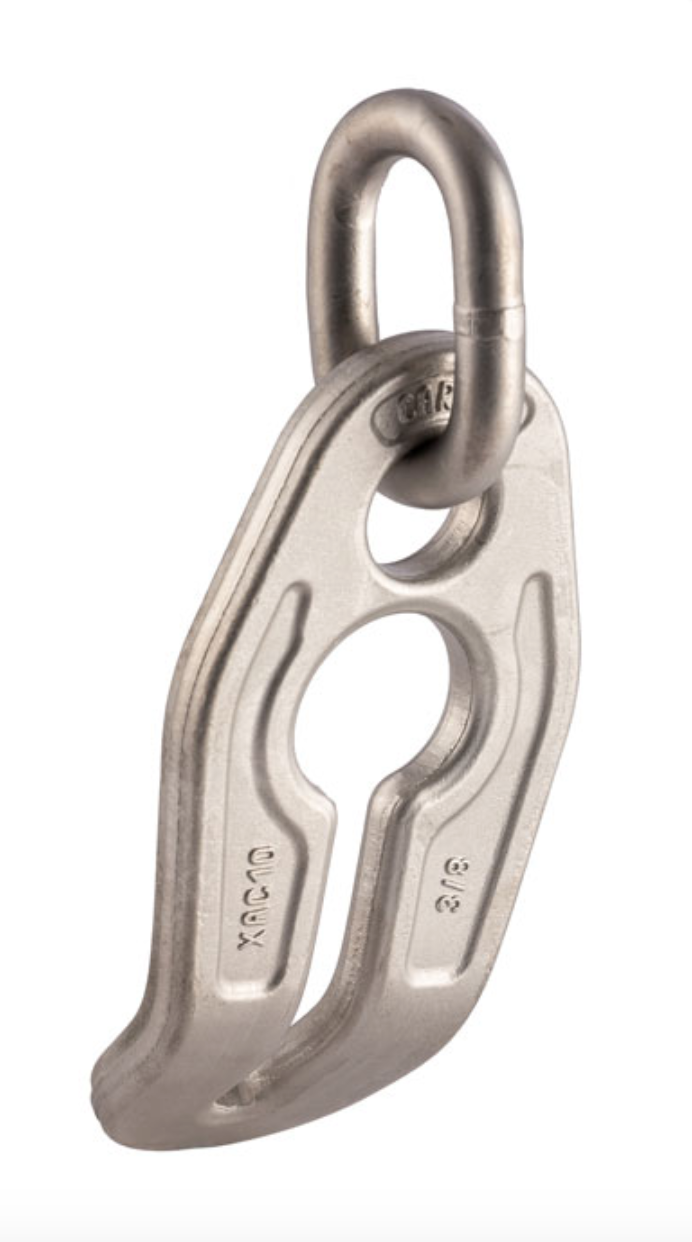

Cartec Grade 6 AISI 316L Shortening Clutch
Cartec SKU: 286-316-1
Grade 6 Shortening Clutch Material: Grade 6 stainless steel, AISI 316L Finish: Surface blasted for a uniform, smooth finish Markings:... Read More
Regular price
ÂŁ138.00
Regular price
Sale
Sale price
TODAY'S PRICE
ÂŁ138.00
Unit price
per
In stock
StockTax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
Grade 6 Shortening Clutch
- Material: Grade 6 stainless steel, AISI 316L
- Finish: Surface blasted for a uniform, smooth finish
- Markings: Clearly marked with CE, material grade, manufacturer's ID, size, product ID mark, and traceability code
- Support: Full CAD support available upon request
- Certification: Declaration of Conformity (DoC)

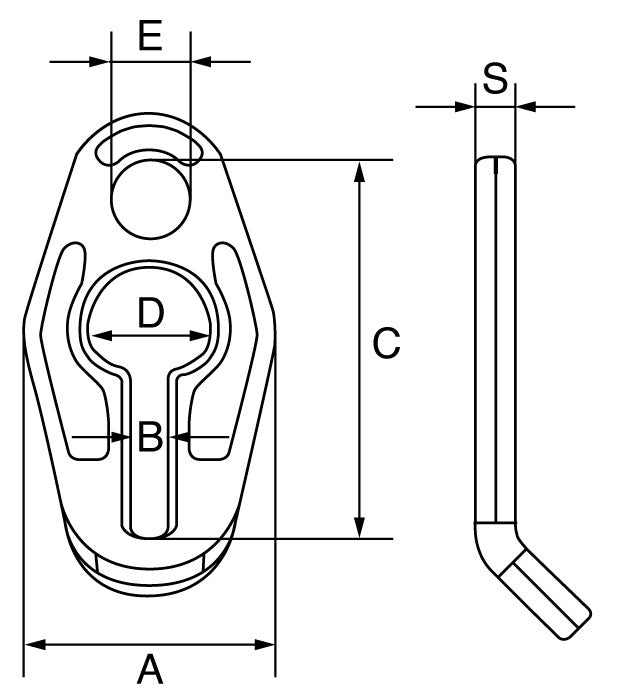

Specification
| SKU | Chain Dia | A | B | C | D | E | S |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-316-1 | 5/6 | 55 | 8 | 81 | 26 | 16 | 8.5 |
| 286-316-2 | 7/8 | 71 | 11 | 110 | 34 | 22 | 10.5 |
| 286-316-3 | 10 | 90 | 12 | 135 | 40 | 26 | 13 |
| 286-316-4 | 13 | 112 | 17 | 170 | 52 | 32 | 16.5 |
| 286-316-5 | 16 | 135 | 20.5 | 202 | 64 | 38 | 20 |
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 5/6 | 0.9 | 18 | 36 | 0.25 |
| 7/8 | 1.6 | 32 | 63 | 0.59 |
| 10 | 2.5 | 50 | 99 | 1.13 |
| 13 | 4.25 | 84 | 167 | 2.37 |
| 16 | 6.3 | 124 | 248 | 4.12 |
