Cartec Grade 6 Stainless Steel AISI 316L Rotating Eyebolt
Cartec SKU: 286-610-1
Cartec Grade 6 Stainless Steel Rotating Eyebolt Material: Grade 6 stainless steel, AISI 316L Finish: Surface blasted for a uniform, smooth finish Orientation:... Read More
Regular price
£132.00
Regular price
Sale
Sale price
TODAY'S PRICE
£132.00
Unit price
per
In stock
StockTax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

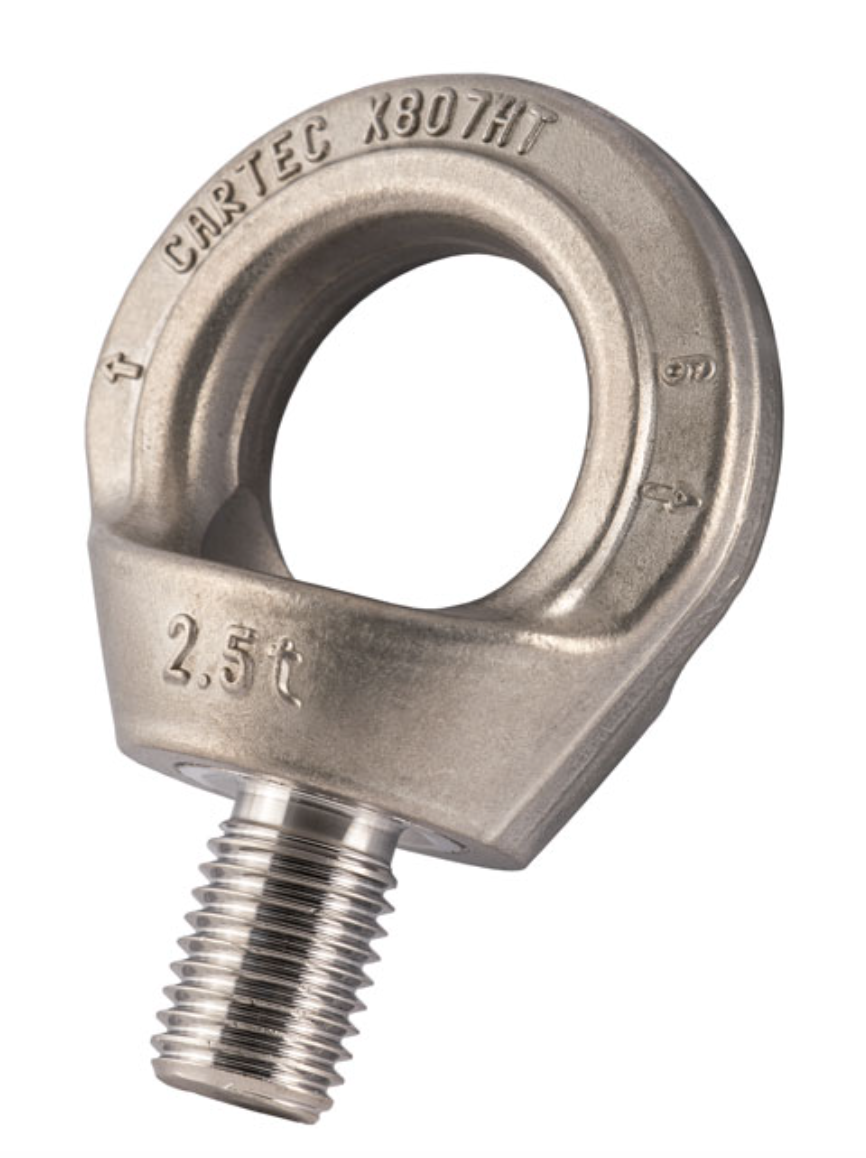

Cartec Grade 6 Stainless Steel Rotating Eyebolt
- Material: Grade 6 stainless steel, AISI 316L
- Finish: Surface blasted for a uniform, smooth finish
- Orientation: Can be oriented 360º
- Captive Screws: Ensures secure fastening
- Axial Pull: Allows for a variation of +/- 5º with a 10% decrease in capacity
- Markings: Clearly marked with CE, W.L.L, material grade, manufacturer's ID, product ID mark, and traceability code
- Usage Note: Not suitable for rotation under load
- Support: Full CAD support available upon request
- Certification: Declaration of Conformity (DoC)

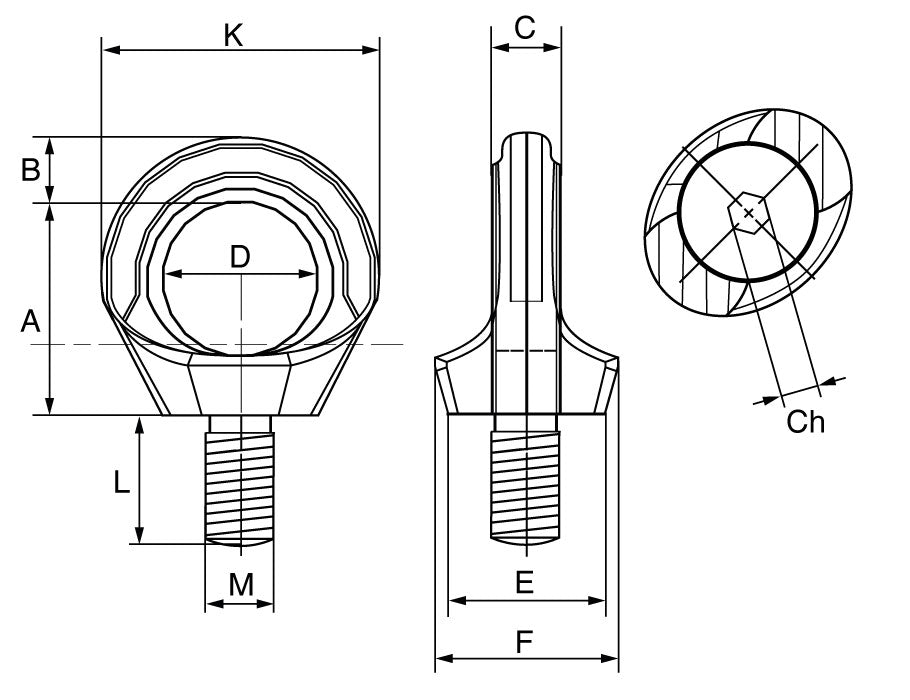

Specification
| SKU | M | L | A | B | C | D | E | F | K | Ch |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 286-610-1 | M12 | 18 | 43 | 12.5 | 11.5 | 30 | 30 | 36.5 | 55.5 | 8 |
| 286-610-2 | M16 | 24 | 49.5 | 14.5 | 15.7 | 35 | 35 | 41.8 | 64.5 | 10 |
| 286-610-3 | M20 | 30 | 58 | 16 | 18 | 40 | 42 | 51.5 | 74.5 | 12 |
| 286-610-4 | M24 | 36 | 69 | 20.5 | 22 | 49 | 50 | 58 | 90 | 12 |
| SKU | Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-610-1 | M12 | 0.5 | 10 | 20 | 0.2 |
| 286-610-2 | M16 | 1 | 20 | 40 | 0.35 |
| 286-610-3 | M20 | 2 | 40 | 79 | 0.6 |
| 286-610-4 | M24 | 2.5 | 50 | 99 | 1 |
Downloads
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

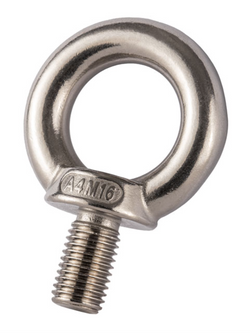

Stainless Steel Commercial Eyebolt 6mm
Regular price
From £2.62
Regular price
Sale price
£2.62
Unit price
per

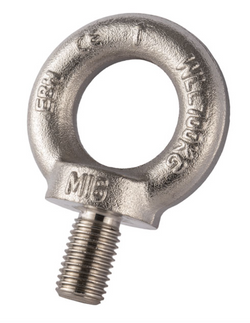

Stainless Steel Load Rated Eyebolt - AISI 316 0.34t / 12mm
