GT

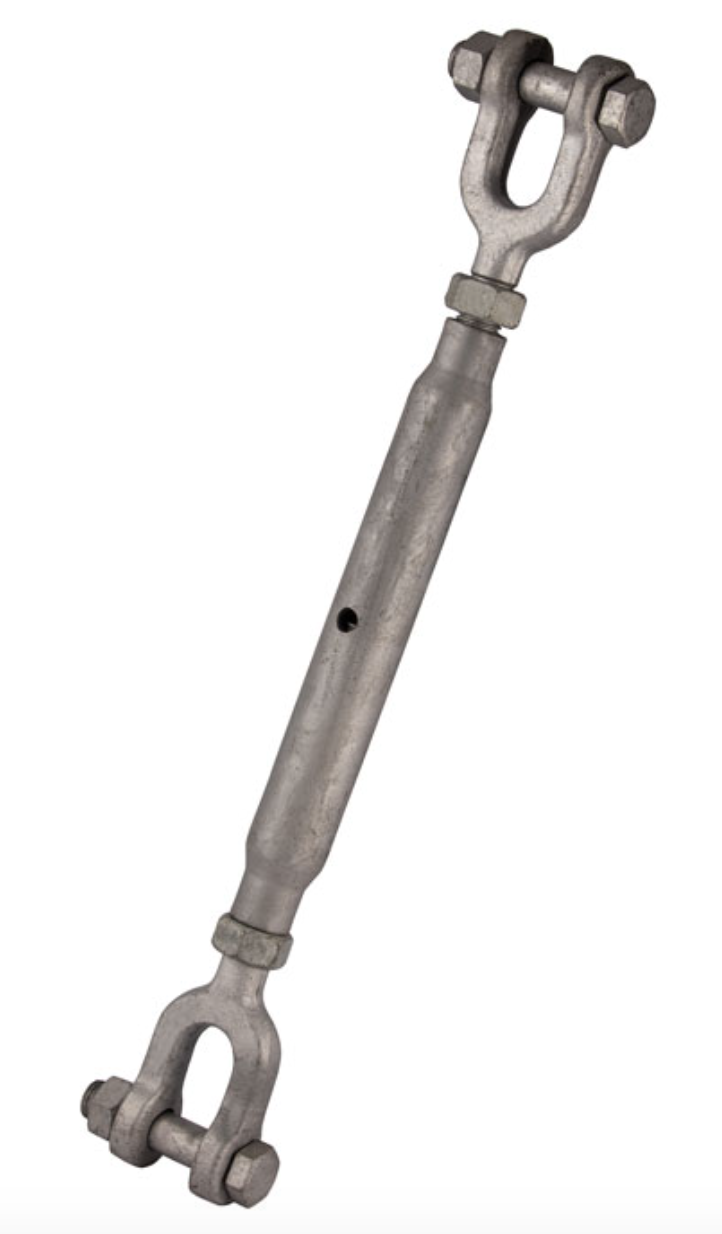

Closed Body Rigging Screw Jaw/Jaw

Closed Body Rigging Screw Jaw/Jaw

SKU: 286-903-1

Read More
Regular price £4.32
Regular price RRP Sale price TODAY'S PRICE £4.32

In stock (10)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Closed Body Rigging Screw Jaw/Jaw

  • Mild steel.
  • 6-8mm size is Electro galvanised finish.
  • 10mm size and above have hot dipped galvanised finish.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • Metric Threads.
  • Marked with CE, W.L.L, manufacturers ID and traceability code.
  • Certification - Declaration of Conformity

Specification

      SKU
      W.L.L. A B C - Closed D - Open E F G H I Weight
      t mm mm mm mm mm mm mm mm mm kgs
      286-903-1
      0.2 6 100 175 255 5 19 7 20 13 0.146
      286-903-2
      0.32 8 108 199 282 6 25 9 24 14 0.26
      286-903-3
      0.5 10 125 222 320 8 26 10.5 28 19 0.42
      286-903-4
      0.7 12 195 320 479 10 32 13 33 22 0.81
      286-903-5
      1.2 16 230 388 572 12 39 18 42 28 1.44
      286-903-6
      1.5 20 270 454 672 16 46 20 51 33 2.28
      286-903-7
      2.2 22 295 490 730 20 55 25 55 38 3.23
      286-903-8
      3.2 24 325 558 819 22 63 30 70 46 4.34
      286-903-9
      4.8 33 370 681 977 30 85 38 82 60 9.56
      286-903-10
      6 39 400 710 1017 33 86 45 85 76 11.12
      286-903-11
      8.5 45 400 760 1050 39 105 50 100 86 16.4
      286-903-12
      11 48 400 820 1110 45 120 58 118 92 24
