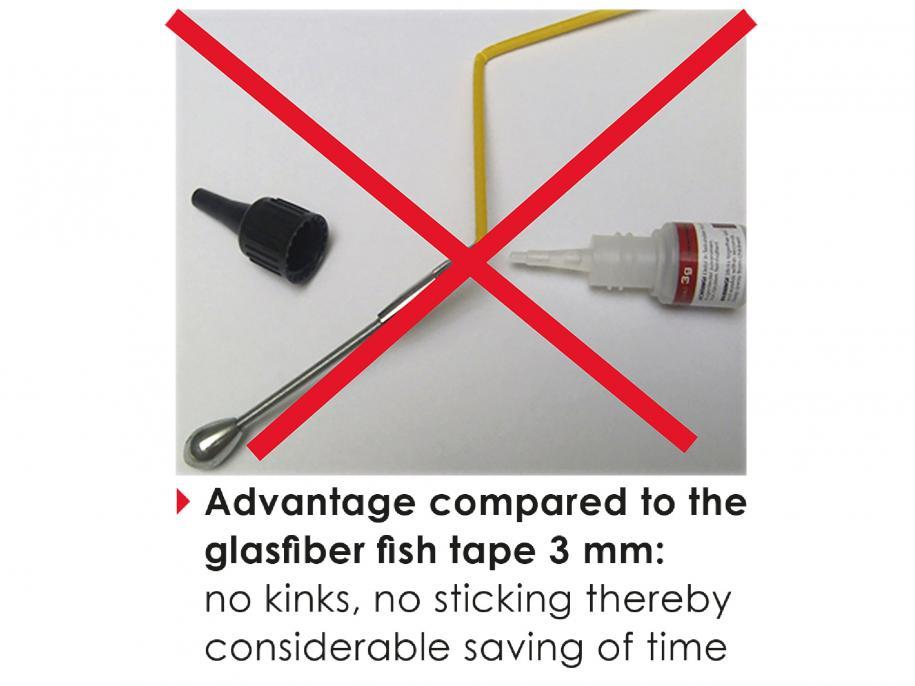

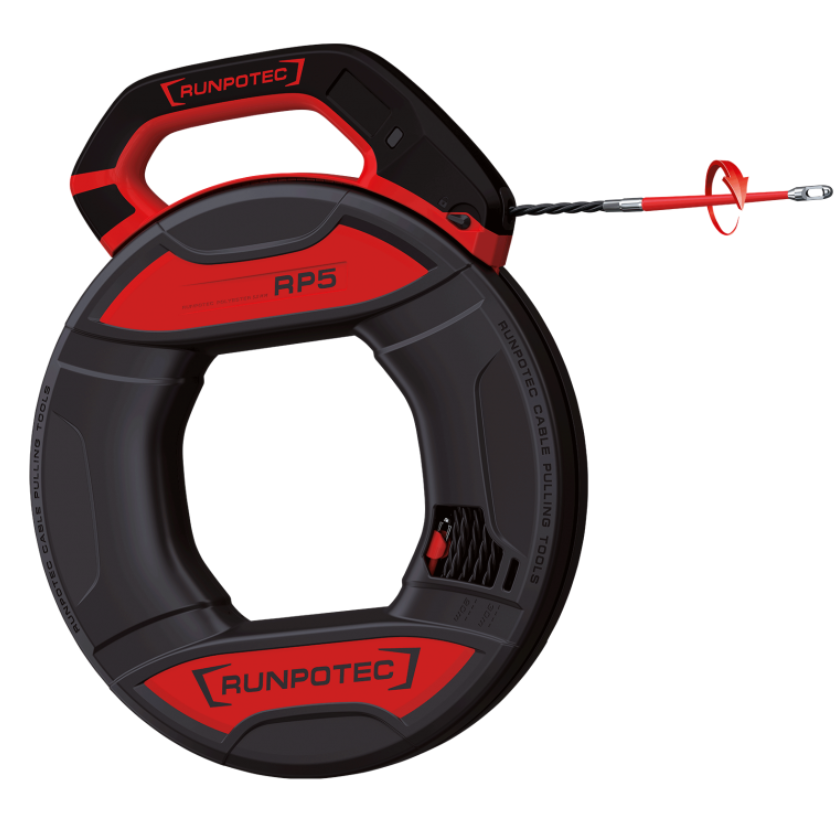

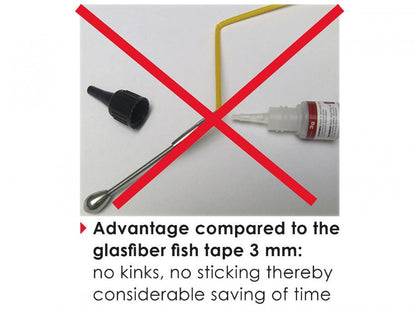

The RP5 - RUNPOTEC Polyester Ø 5.5 mm is a cable pulling tool without a meter counter. The triple-twisted special plastic tape with a diameter of 5.5 mm has an even better shearing effect than the 3 mm fiberglass rod; the frictional resistance is only half the normal value due to spot contact.

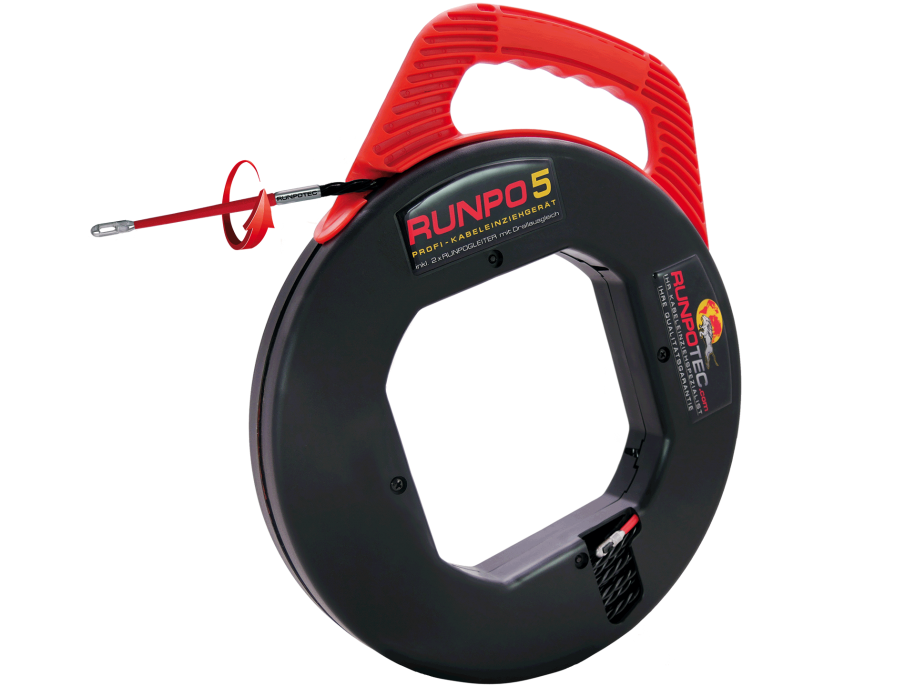

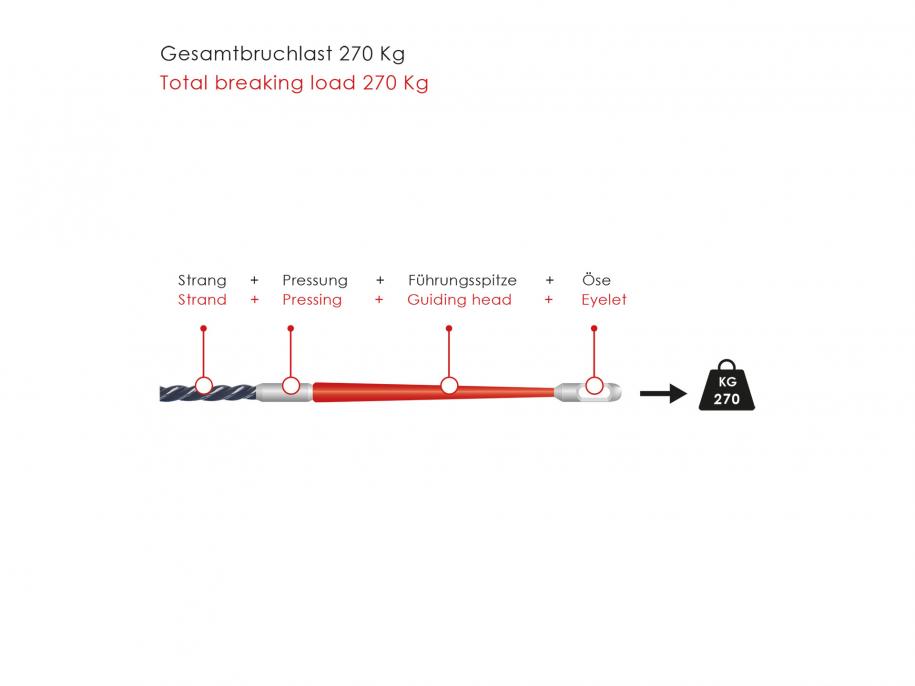

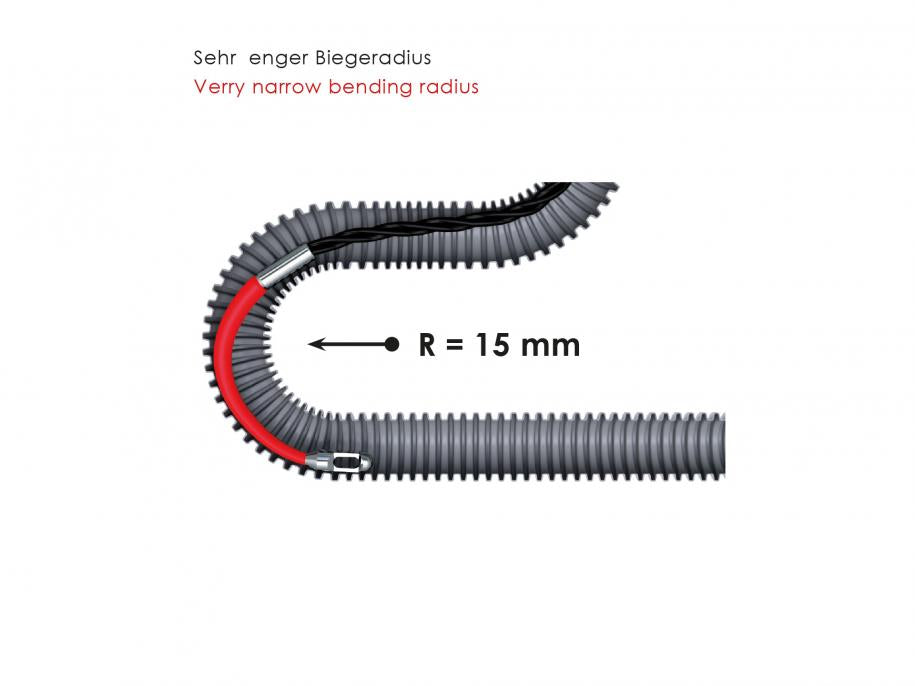

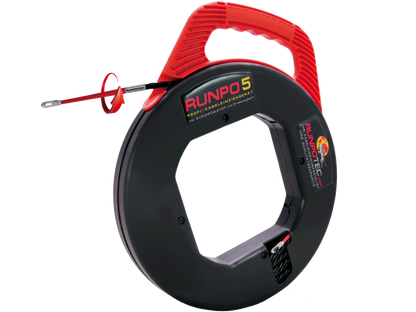

The patented RG7 guiding head with swivel Ø 5.5 mm (pressed at the beginning and end of the tape) allows overcoming tight radii (bending radius 15 mm). The RP5 - RUNPOTEC Polyester Ø 5.5 mm is stored in a jobsite suitable and robust storage box with an ergonomic carrying handle. It is equipped with the new glide back protection (only stops the RG7 guiding head), which prevents the cable pulling strap from slipping back accidentally. The incredible total breaking load of 270 kg refers to the entire pulling system. Labour- and time-consuming repair work is no longer necessary, as this cable pulling system is virtually breakage-free. The RP5 is available in 20m and 30 m lengths. The RP5 replacement strap cannot be stored in the box.

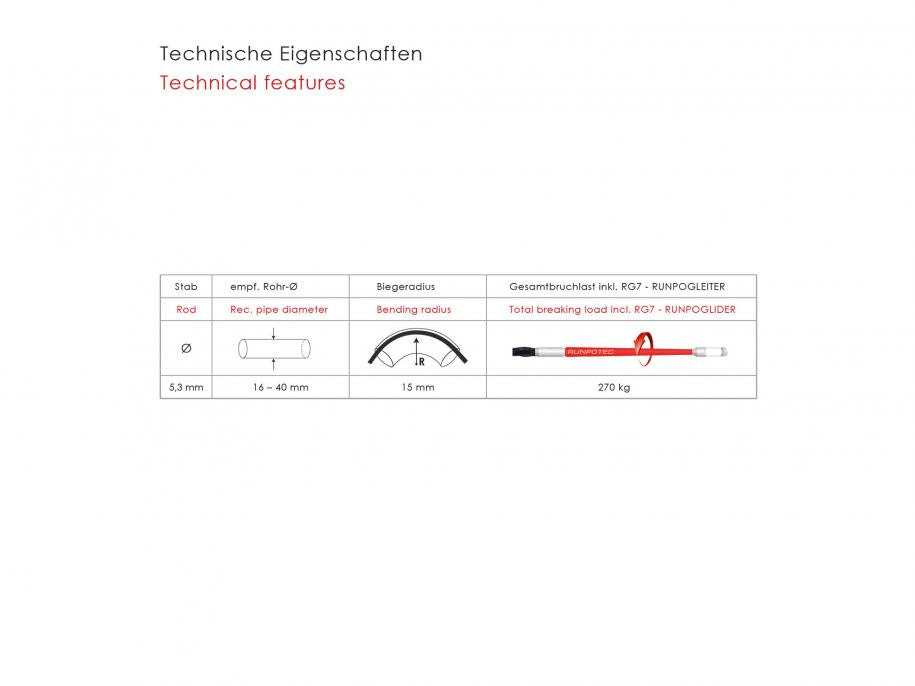

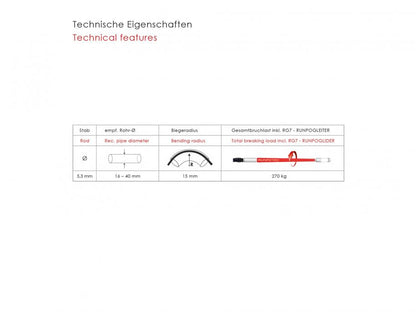

Optimal field of application: for pipe inner diameter 9 - 32 mm

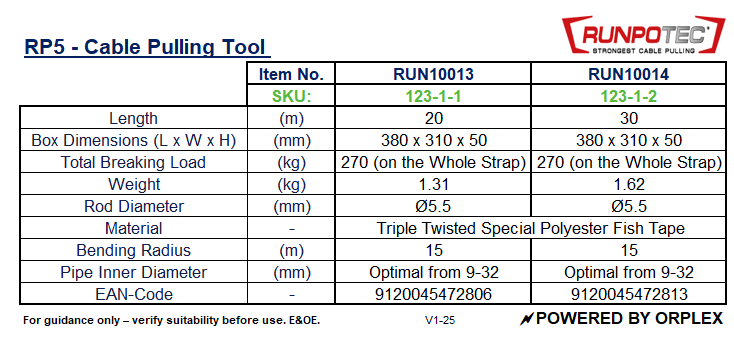

Scope of supply: 1 x RP5 cable pulling tape Ø 5,5 mm without meter counter in a plastic box, length: 30 m, including 2 x RG7 RUNPOGLEITER with swivel (pressed on both sides)

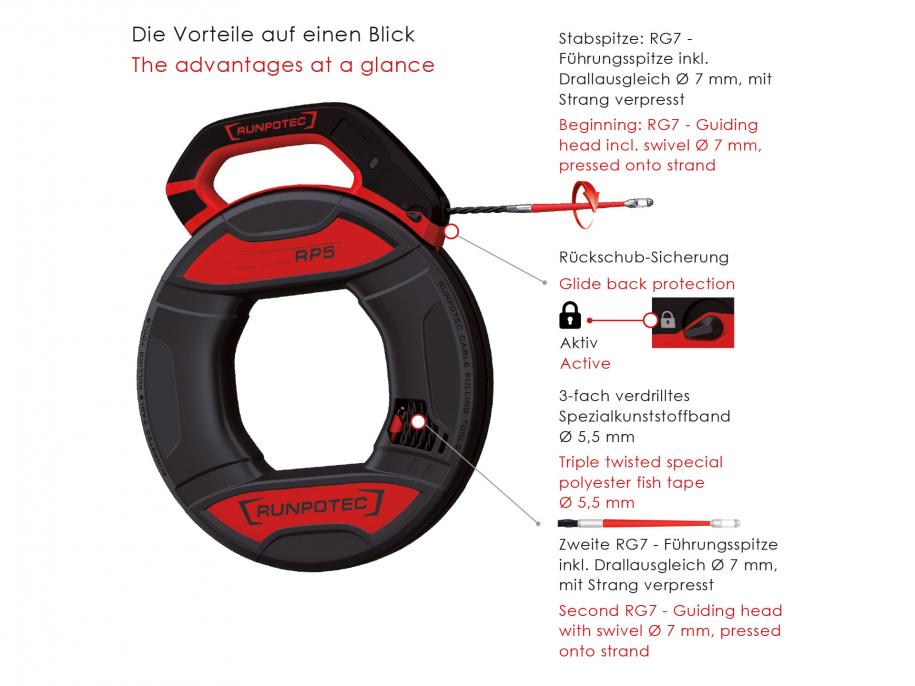

Advantages

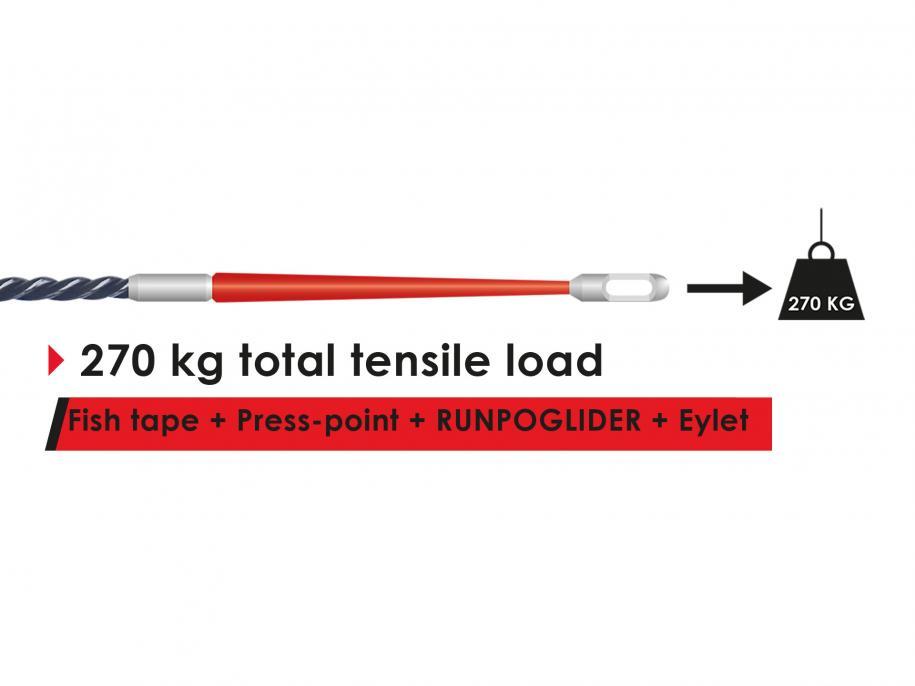

• Total breaking load 270 kg
• 2 x RG7 - Guiding head with swivel Ø 7 mm
• Glide back protection (only stops the RG7 guiding head)
• Triple twisted special plastic tape Ø 5,5 mm

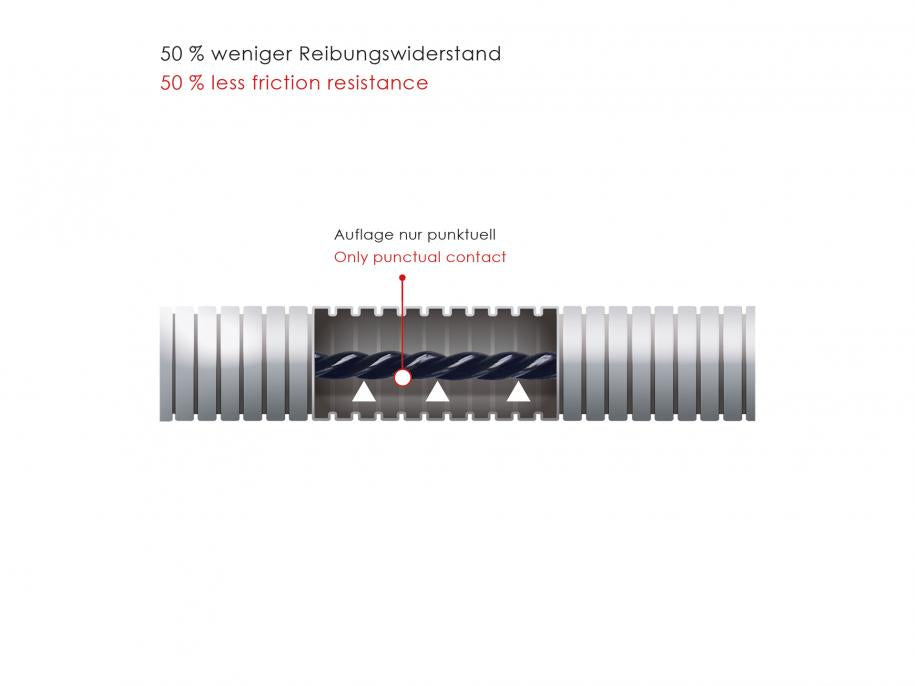

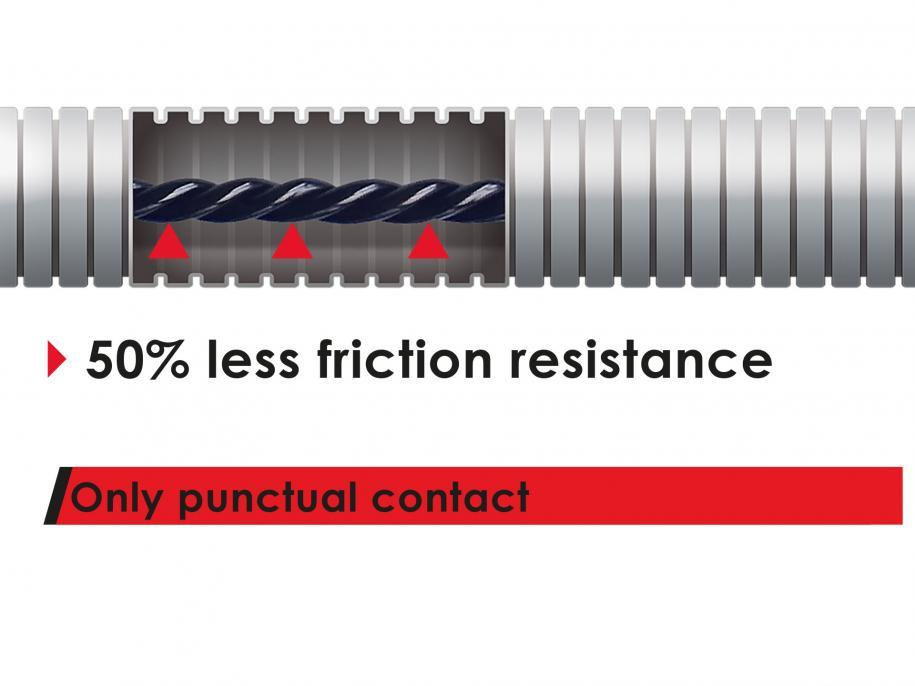

• 50 % less frictional resistance

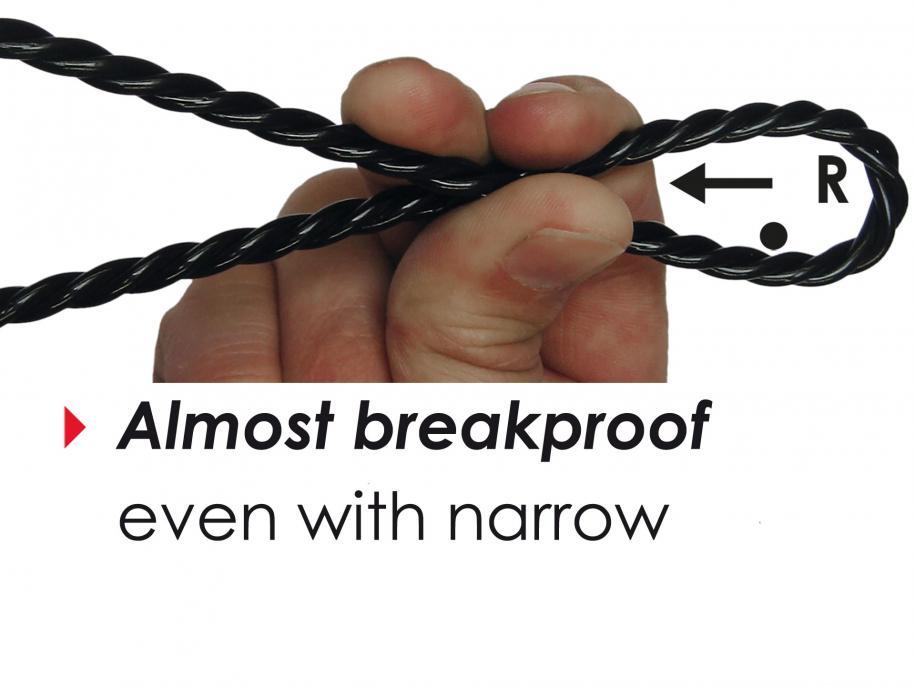

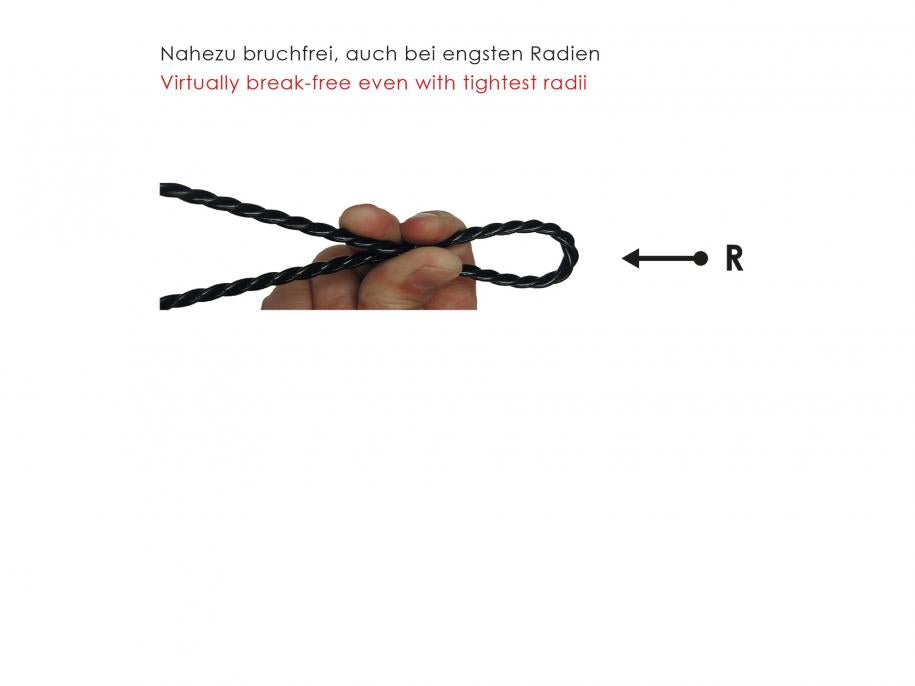

• Virtually break-free, even with the tightest radii


Download - EN-RUNPOTEC-Data-sheet-RP5-cable-pulling-tool-without-meter-counter-10013-10014.pdf
