Goliath

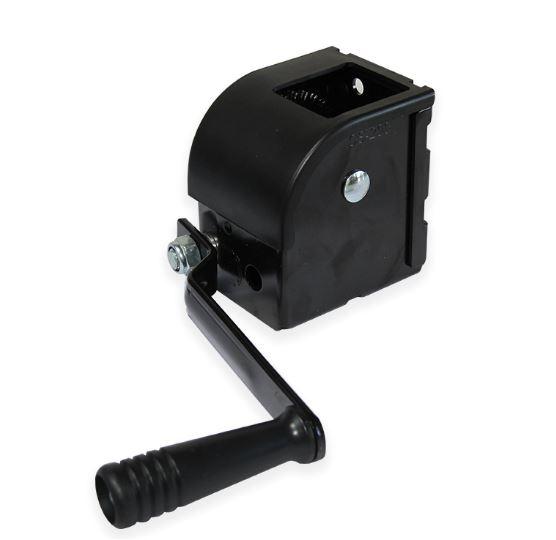

CS100PS Goliath Webbing Hand Winch 170kg

CS100PS Goliath Webbing Hand Winch 170kg

SKU: 151-6-3

Read More
Regular price £78.00
Regular price RRP Sale price TODAY'S PRICE £78.00

In stock (49)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

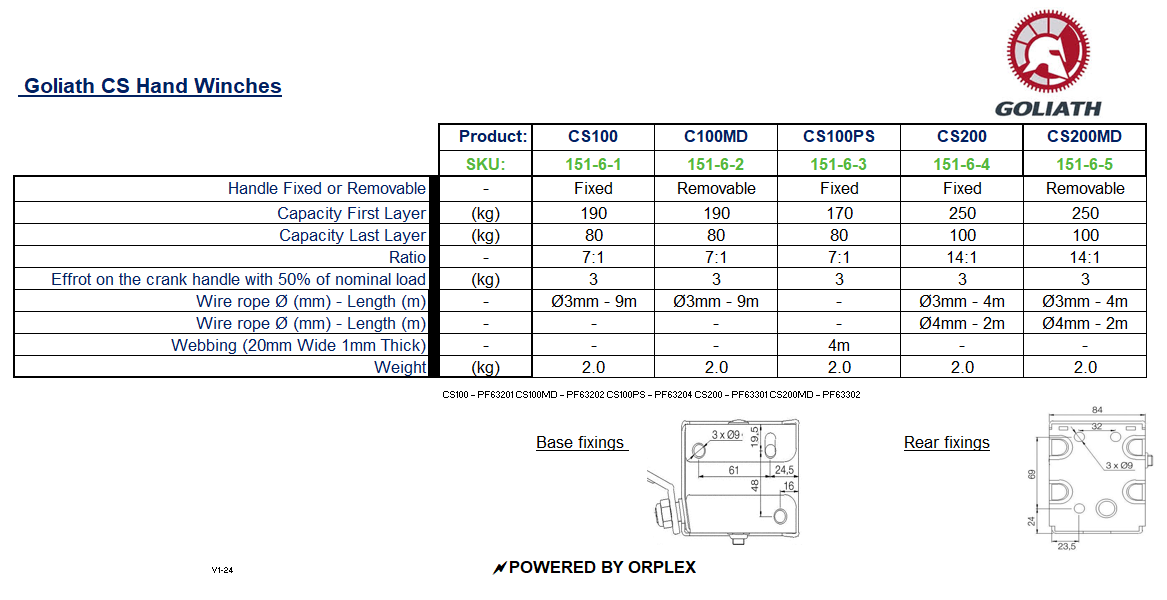

CS100 PS Data Sheet : Ref: 151-6

 Lifting capacity 170 kg

Compact and sturdy self sustaining lifting winches for loads up to 170 kg
Model CS100
Small and inexpensive
For base or wall mounting
Self locking worm gear and protective cover for greater safety
Quiet in operation; no brake ratchets
Ideal for regular short moving strokes
Meets the requirements of BS EN 13157

**As Standard supplied without Webbing - Prices available on request**

Spec

CS 100 with removable handle

Downloads

Product data sheet

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • Can you explain how the self-sustaining brake function works on the CS100 winch please?

    In order for the self-sustaining brake function to work a minimum of between 7% to 10% of the overall load that the winch can take needs to be applied to webbing strapping, this allows the brake to engage when you take your hand of the winch crank handle (so the load is held in either travel direction). So between 12 to 17kgs of load applied to the webbing allows the self sustaining brake to work. Until the winch system (Winch and Rope) is installed with a load applied the braking function on the CS100 will not work.

  • Hi. Can you confirm if the CS100PS Worm Gear hand winch 170kg has a lock mechanism or self sustaining brake. We are proposing to use it for a washing line. Thanks

    The CS100 has self-sustaining worm gearing, when you stop cranking the winch handle the winch holds the load. The winch has to be working at a minimum of approx. 7 to 10% of the maximum working load for the self-sustainingh braking to operate as mentioned (so between 12 to 17kgs of load applied to the webbing). Until the winch system (Winch, Rope + Pulley if needed) is installed the braking function will not work. In additon the winch does not have a free wheel function.

Customer Reviews

Based on 6 reviews
83%
(5)
0%
(0)
17%
(1)
0%
(0)
0%
(0)
N
NIGEL fleet
Winch

Disappointed that strap was not attached, I had to fit it myself. I also think it is a Otón money when compared against a side winding winch

M
Martin K.
Very satisfied!

From online order to delivery to the US, my experience was great...and timely! And my satisfaction extends to the Goliath winch itself. It is well designed, sturdy, and works well. Thank you, Winch Shop.

R
ROBERET M.
GOLIATH WEBBING HAND WINCH.

EXCELLENT PRODUCT, EXCELLENT SUPPORT TEAM WHO UNDERSTOOD YOUR NEEDS AND THE PRODUCTS. SHIPPING TO CYPRUS WAS WITHIN 2 DAYS, AND THE PRODUCT IS EXACTLY WHAT I EXPECTED. WELL DONE TO ALL AND THANK YOU.

R
ROBERET M.
GOLIATH WEBBING HAND WINCH.

EXCELLENT PRODUCT, EXCELLENT SUPPORT TEAM WHO UNDERSTOOD YOUR NEEDS AND THE PRODUCTS. SHIPPING TO CYPRUS WAS WITHIN 2 DAYS, AND THE PRODUCT IS EXACTLY WHAT I EXPECTED. WELL DONE TO ALL AND THANK YOU.

R
ROBERET M.
GOLIATH WEBBING HAND WINCH.

EXCELLENT PRODUCT, EXCELLENT SUPPORT TEAM WHO UNDERSTOOD YOUR NEEDS AND THE PRODUCTS. SHIPPING TO CYPRUS WAS WITHIN 2 DAYS, AND THE PRODUCT IS EXACTLY WHAT I EXPECTED. WELL DONE TO ALL AND THANK YOU.
