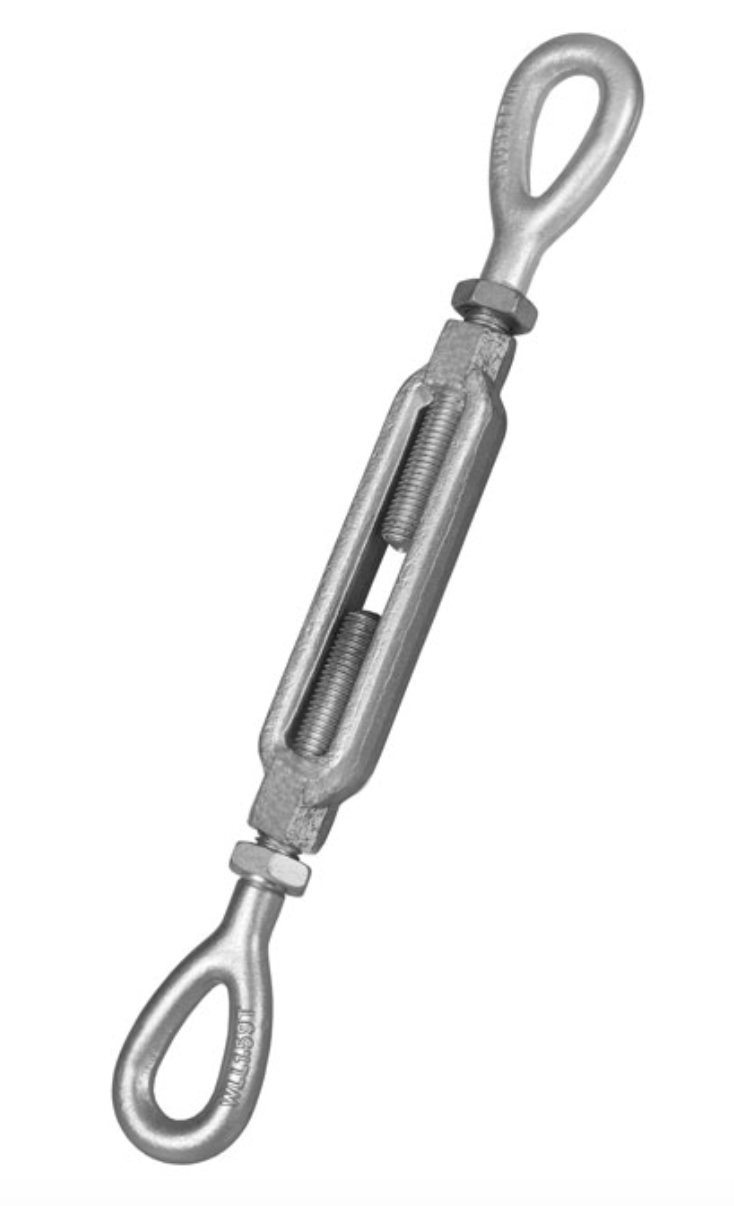

Drop Forged Turnbuckle Eye/Eye

Drop Forged Turnbuckle Eye/Eye

SKU: 286-901-1

Read More
Regular price £3.72
Regular price RRP Sale price TODAY'S PRICE £3.72

In stock (4)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Drop Forged Turnbuckle Eye/Eye - US Style

  • Drop forged, high tensile steel, SAE 1035 or SAE 1045.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification - Declaration of Conformity

    Specification



        SKU Size Take Up W.L.L. A B R S C O Weight
        inches inches t mm mm mm mm mm mm kgs
        286-901-1 3/8 6 0.54 180 152 28.5 13.5 308 460 0.34
        286-901-2 1/2 6 1 190 152 36.5 18 380 532 0.71
        286-901-3 1/2 9 1 267 229 36.5 18 456 685 0.85
        286-901-4 1/2 12 1 343 305 36.5 18 510 815 1
        286-901-5 5/8 6 1.59 203 152 45 22.5 398 550 1.17
        286-901-6 5/8 9 1.59 279 229 45 22.5 474 703 1.42
        286-901-7 5/8 12 1.59 355 305 45 22.5 550 855 1.67
        286-901-8 5/8 18 1.59 1.92
        286-901-9 3/4 6 2.36 213 152 53 25.4 448 600 1.87
        286-901-10 3/4 9 2.36 289 229 53 25.4 524 753 2.22
        286-901-11 3/4 12 2.36 365 305 53 25.4 600 900 2.57
        286-901-12 3/4 18 2.36 517 457 53 25.4 752 1209 3.27
        286-901-13 7/8 12 3.27 374 304 60 32 630 934 3.77
        286-901-14 7/8 18 3.27 527 457 60 32 782 1239 4.7
        286-901-15 1 6 4.54 233 152 76 37 552 704 4.1
        286-901-16 1 12 4.54 385 305 76 37 704 1009 5.33
        286-901-17 1 18 4.54 537 457 76 37 856 1313 6.56
        286-901-18 1 24 4.54 690 610 76 37 1010 1620 7.83
        286-901-19 1 1/4 12 6.89 388 305 90 46 776 1081 9.1
        286-901-20 1 1/4 18 6.89 541 457 90 46 928 1385 10.94
        286-901-21 1 1/4 24 6.89 693 610 90 46 1080 1690 12.75
        286-901-22 1 1/2 12 9.71 403 305 103 53.8 838 1143 12.93
        286-901-23 1 1/2 18 9.71 555 457 103 53.8 990 1447 15.43
        286-901-24 1 1/2 24 9.71 708 610 103 53.8 1144 1754 17.97
        286-901-25 1 3/4 18 12.7 571 457 117 60.5 1076 1544 23.37
        286-901-26 1 3/4 24 12.7 724 610 117 60.5 1230 1840 26.91
        286-901-27 2 24 16.8 740 610 146 68 1400 2010 39.93
        286-901-28 2 1/2 24 27.2 795 610 165 79 1490 2100 70.96
        286-901-29 2 3/4 24 34 795 610 178 82.5 1562 2172 82.22
