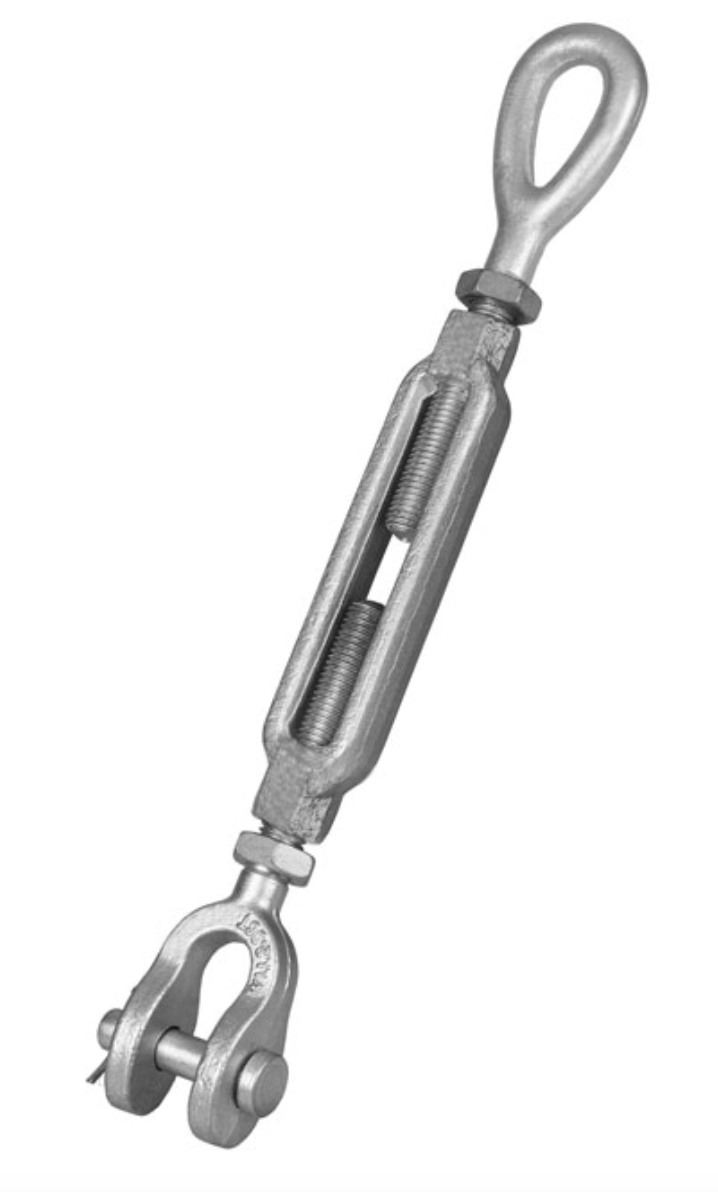

Drop Forged Turnbuckle Jaw/Eye

Drop Forged Turnbuckle Jaw/Eye

SKU: 286-902-1

Read More
Regular price £3.84
Regular price RRP Sale price TODAY'S PRICE £3.84

In stock (15)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Drop Forged Turnbuckle Jaw/Eye - US Style

  • Drop forged, high tensile steel.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2.5 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Up to 5/8″ with safety bolt, 3/4″ and above with cotter pins.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification available DoC



          Spec

          SKU
          Size Take Up W.L.L. A B D E F R S C O Weight
          inches inches t mm mm mm mm mm mm mm mm mm kgs
          286-902-X
          1/4 4 0.23 120 102 11.5 15.75 7.5 20 8.5 215 307 0.14
          286-902-X
          5/16 4 1/2 0.36 138 114 12.7 21.2 7.6 24 11.2 249 354 0.2
          286-902-1
          3/8 6 0.54 180 152 13.7 21.5 9 28.5 13.5 308 460 0.34
          286-902-2
          1/2 6 1 190 152 16 26.5 11 36.5 18 380 532 0.71
          286-902-3
          1/2 9 1 267 229 16 26.5 11 36.5 18 456 685 0.85
          286-902-4
          1/2 12 1 343 305 16 26.5 11 36.5 18 510 815 1
          286-902-5
          5/8 6 1.59 203 152 21 33 14 45 22.5 398 550 1.17
          286-902-6
          5/8 9 1.59 279 229 21 33 14 45 22.5 474 703 1.42
          286-902-7
          5/8 12 1.59 355 305 21 33 14 45 22.5 550 855 1.67
          286-902-8 5/8 18
          286-902-9
          3/4 6 2.36 213 152 26 37.25 17.5 53 25.4 448 600 1.87
          286-902-10
          3/4 9 2.36 289 229 26 37.25 17.5 53 25.4 524 753 2.22
          286-902-11
          3/4 12 2.36 365 305 26 37.25 17.5 53 25.4 600 905 2.57
          286-902-12
          3/4 18 2.36 517 457 26 37.25 17.5 53 25.4 752 1209 3.27
          286-902-13
          7/8 12 3.27 374 304 31 42.75 20.5 60 32 630 934 3.77
          286-902-14
          7/8 18 3.27 527 457 31 42.75 20.5 60 32 782 1239 4.7
          286-902-15
          1 6 4.54 233 152 33 52 24 76 37 552 704 4.1
          286-902-16
          1 12 4.54 385 305 33 52 24 76 37 704 1009 5.33
          286-902-17
          1 18 4.54 537 457 33 52 24 76 37 856 1313 6.56
          286-902-18
          1 24 4.54 690 610 33 52 24 76 37 1010 1620 7.83
          286-902-19
          1.1/4 12 6.89 388 305 47 70.5 31 90 46 776 1081 9.1
          286-902-20
          1.1/4 18 6.89 541 457 47 70.5 31 90 46 928 1385 10.94
          286-902-21 1.1/4 24 6.89 693 610 47 70.5 31 90 46 1080 1690 12.75
          286-902-22
          1.1/2 12 9.71 403 305 47 70.5 31 103 53.8 838 1143 12.93
          286-902-23
          1.1/2 18 9.71 555 457 57 70.5 37 103 53.8 990 1447 15.43
          286-902-24
          1.1/2 24 9.71 708 610 57 70.5 37 103 53.8 1144 1754 17.97
          286-902-25
          1.3/4 18 12.7 571 457 66 85 44 117 60.5 1076 1544 23.37
          286-902-26
          1.3/4 24 12.7 724 610 66 85 44 117 60.5 1230 1840 26.91
          286-902-27
          2 24 16.78 740 610 66.3 92 54 146 68 1400 2010 39.93
          286-902-28
          2.1/2 24 27.22 795 610 78 110.8 60.5 165 79 1490 2100 70.96
          286-902-29
          2.3/4 24 34.02 795 610 93.5 104.5 73 178 82.5 1562 2172 82.22
