Electric e-Winch

This electric winch is truly one of Gebuwin’s eye catchers. It’s a robust winch that has been reissued by Gebuwin this year and in which the team of engineers have incorporated all of today’s innovations.

This makes Gebuwin’s e-Winch a nice strong but affordable product in its price class. Gebuwin hopes to be able to satisfy its customers even better with this winch. This winch is suitable for both lifting* and pulling applications and is equipped with a powerful three-phase motor. Strong in its power, caring for your budget.

*The e-Winch is available with or without limits, if used for lifting applications limits are required above for all models with a WLL above 1,000kg.

Please note this product has a minimum lead-time of 4 to 6 weeks depending on the model. Please email sales@rigginguk.co.uk for a formal quotation, specifying any additional items required.

Specification

• Robust and safe electric lifting and pulling winch
• Maintenance free bearings
• Protection classification IP54, insulation class F
• Standard overload protection as from 1000 kg
• Powerful three-phase motor for multirange voltage 380 – 415V / 50 Hz or 60 Hz

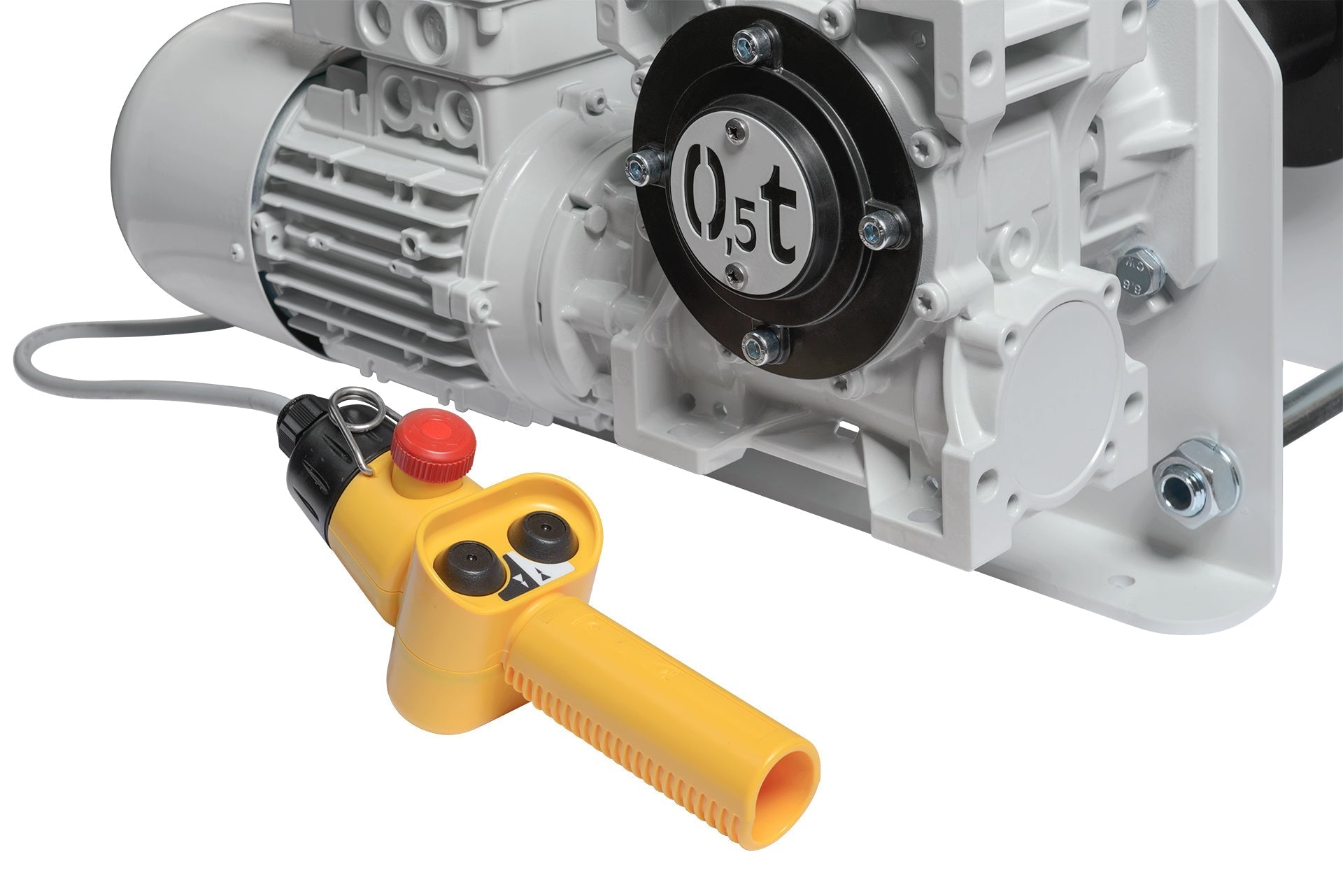

• 1 speed pendant control with 1m cable
• Standard 2 meter power cable including 16A CEE plug
• Paint thickness is 60-80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL7035/9005

Options

• Pendant control switch*
• Control cable per metre (additional)
• Increase in cable storage
• Grooved drum (GD)
• Pressure roller (PR)
• 2 drum compartment (2D)
• Radio control (RC)
• External limit switch (EL)
• Protection class IP55 (IP55)
• 2 speed available as from e-W1000 (2S)
• Frequency control available as from eW1000 (FC)
• Soft start/stop available as from e-W1000 (SS)
• Low voltage control (48V) + overload protection***
• Manual emergency crank

* Pendant control and 1 metre control cable included

*** 1000kg > low voltage & overload protection included

Downloads

Product data sheet
