Description

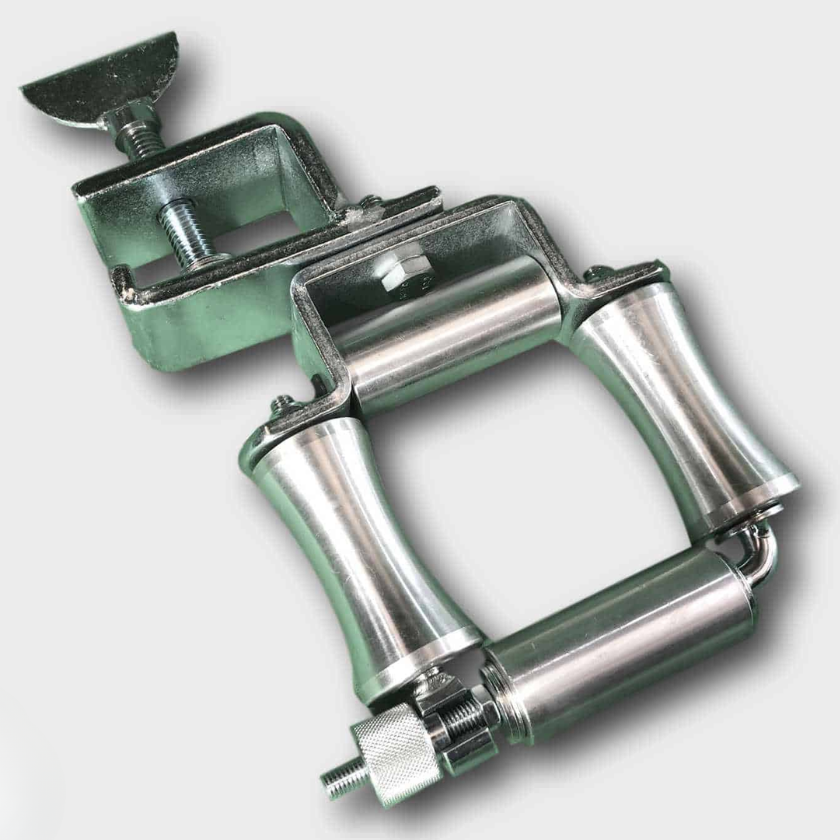

The EPD Clamping Quadrant Roller is a versatile cable roller designed for fast, secure installation without tools. It clamps directly to beams, trays, or racks, and by removing the clamp section it can also be bolted onto Unistrut or trays for fixed use.

Built from heavy-duty tubular steel with a zinc plated finish, it is fitted with two steel diablo rollers and two parallel rollers, all supported by sealed precision roller bearings for smooth, reliable cable handling.

Key Features

  • Clamp-on design – attaches to beams, trays, or racks without tools.

  • Dual mounting option – can also be bolted directly to Unistrut or trays when the clamp section is removed.

  • Hinged gate with knurled nut for quick cable extraction.

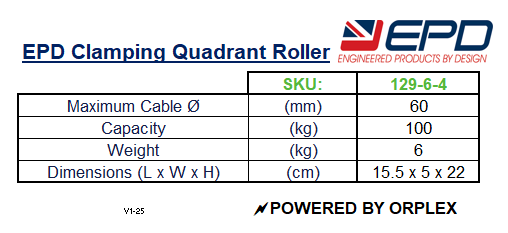

  • Handles cables up to 60mm diameter with 100kg load capacity.

  • Heavy-duty tubular steel construction with zinc plated finish.

  • Two diablo rollers + two parallel rollers for smooth guiding.

  • Sealed precision roller bearings for reliable performance.

  • Compact size: 15.5cm (L) x 5cm (W) x 22cm (H).

  • Weight: 6kg – robust yet manageable for site use.

Product Brochure

Download - EPD_Clamping_Quadrant_Roller_Product_Brochure_55d9afbe-d7d8-4b4e-8650-0b0ffdeb00a4.pdf
