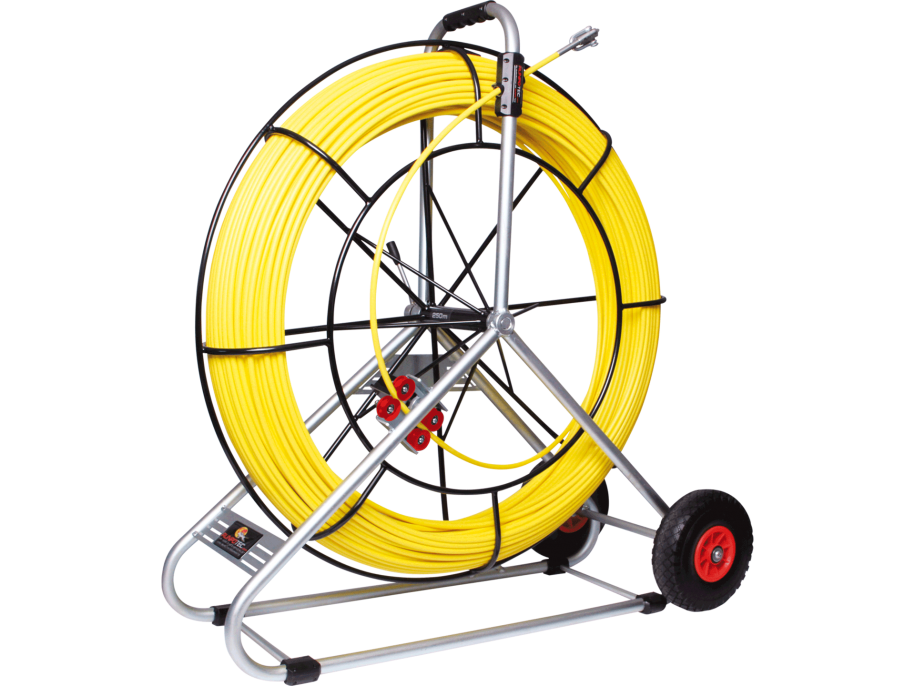

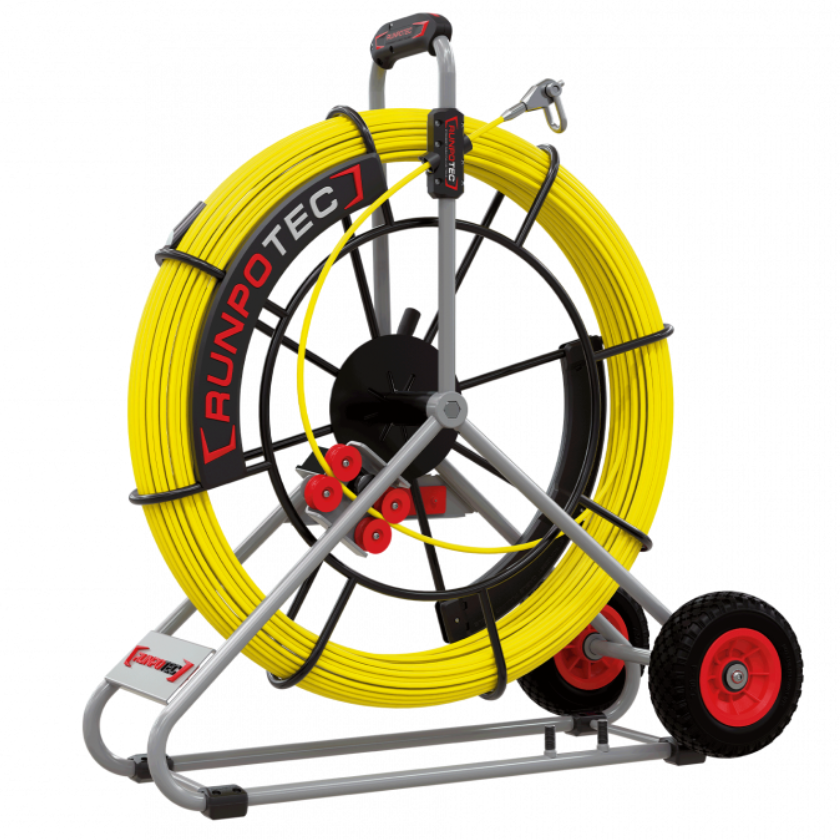

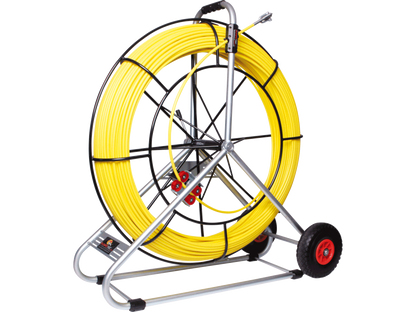

GF9 cable puller fiberglass rod (duct rodders) Ø 9 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (CDP/powder coated) Ø 730 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling grip (sock), RC2 inspection camera and the like. Fiberglass rod breaking load 4500 kg, total breaking load 460 kg.
Optimal field of application: for pipe diameters 60 mm - 200 mm
Scope of delivery: 1 x GF9 fiberglass rod Ø 9 mm, Length: 40 m, ending joint with RUNPOTEC thread Ø 12 mm on both sides (start/end), 1 x mobile steel reel Ø 730 mm incl. double run-out system, 1 x meter counter, 1 x shackle

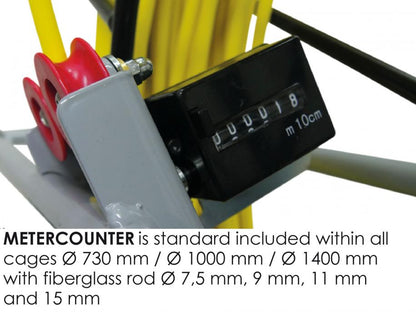

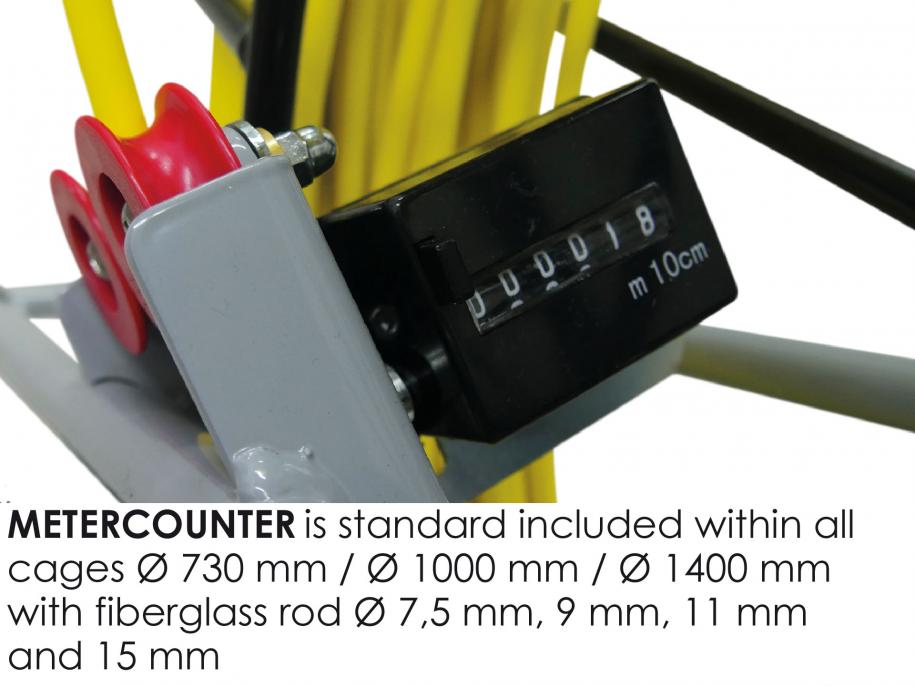

- incl. steel reel and metre counter

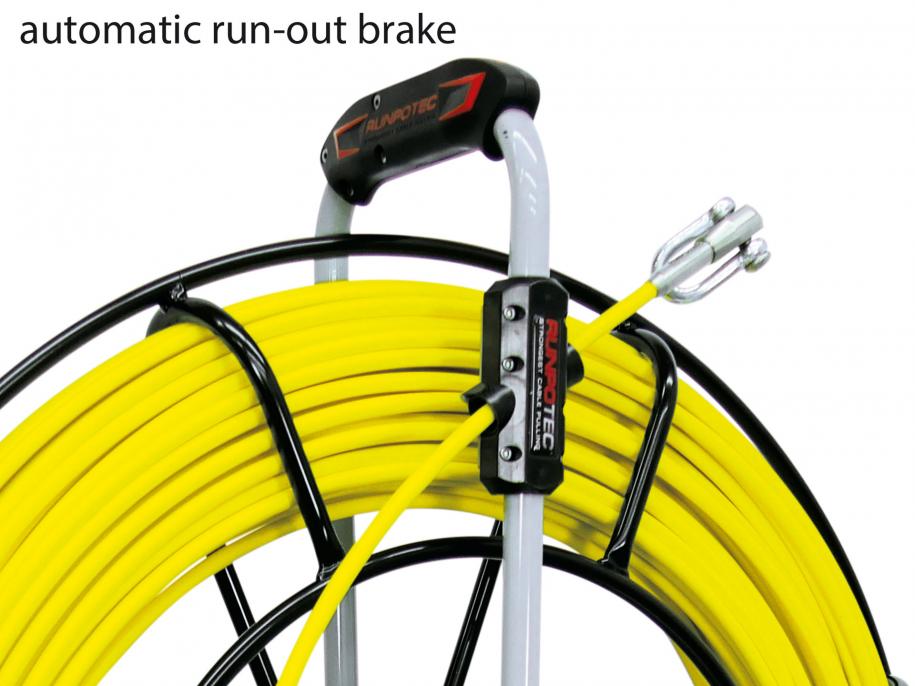

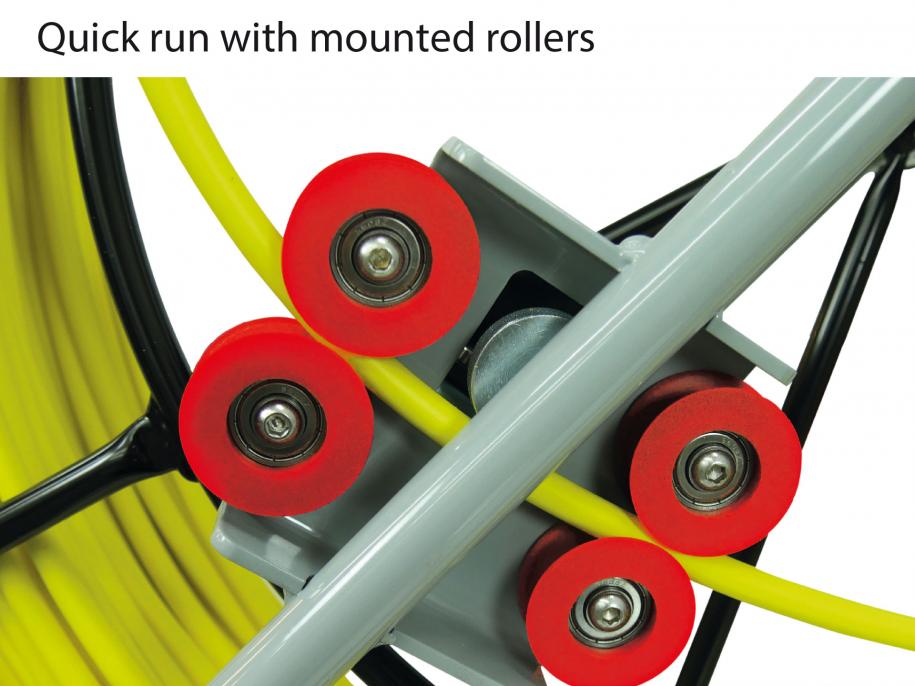

- Double run-out system (automatic run-out brake and fast run-out)
- Additional parking brake
- Fiberglass rod breaking load 4500 kg
- Total breaking load 460 kg
- Bending radius with ending joint 620 mm
- Bending radius only rod 140 mm
