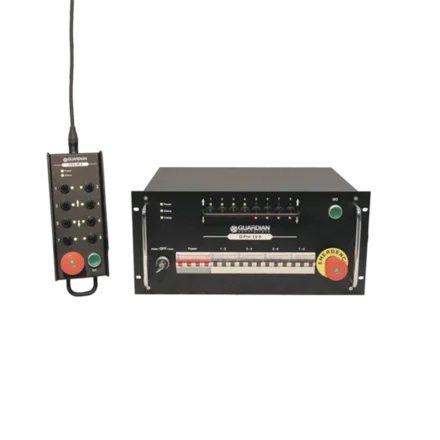

G-Pro 8 Way Rack Mounted Low Voltage Touring Hoist Controller

G-Pro 8 Way Rack Mounted Low Voltage Touring Hoist Controller KIT

This G-Pro 8 Way Kit includes Main 19" Rack Mount, 8 Way Remote Hand with 15m of Cable, 2 x Power and 2 x Control Break Outs (19 Pin Soca to 4 Pin CEE)

• 8 channels of linkable control housed in a 5U 19” rack mounted enclosure
• 8 channel controller power - 63A, 400V, 3Ph- Outs power and control via Socapex connectors- 2 for power, 2 for control

• Local control or via optional digital remote handset
• Linkable GO & E-stop network for linked systems
• Remote in/ link secure digital network via Neutrik 7 Pin XLR connector

• Switchable between pickle/or auto enable mode
• Automatic phase correction
• Automatic voltage check
• LED GO button & channel direction
• LED status/error check
• Optional load cell alarm input link to E-stop
• Works with any G-Pro remote handset but limited by max channels on handset/controller
• CE certified

DIGITAL REMOTE HANDSET FOR G-PRO SERIES

• Aluminium enclosure
• Neutrik 7pin XLR connector
• Toggle switches with dust/ water resistant covers
• LED GO button & channel direction
• LED status/ error check
• Acts as a master GO & E-stop in linked systems
• Works with any G-Pro series controller but limited by max channels on handset/controller
