Galvanised Malleable Iron Block Oval Eye Treble / 6inch / 24mm

Name: Galvanised Malleable Iron Block Oval Eye Treble / 6inch / 24mm
Brand: GT Viper
SKU: 286-538-1
Price: 30.94 GBP
Availability: InStock

GT Viper SKU: 286-538-1

1 1

Galvanised Malleable Iron Block Swivel Oval Eye Galvanised malleable iron body. Hot dipped galvanised finish. Fitted with plain bore as standard with grey iron sheave. Also... Read More

£30.94

Sale TODAY'S PRICE £30.94

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

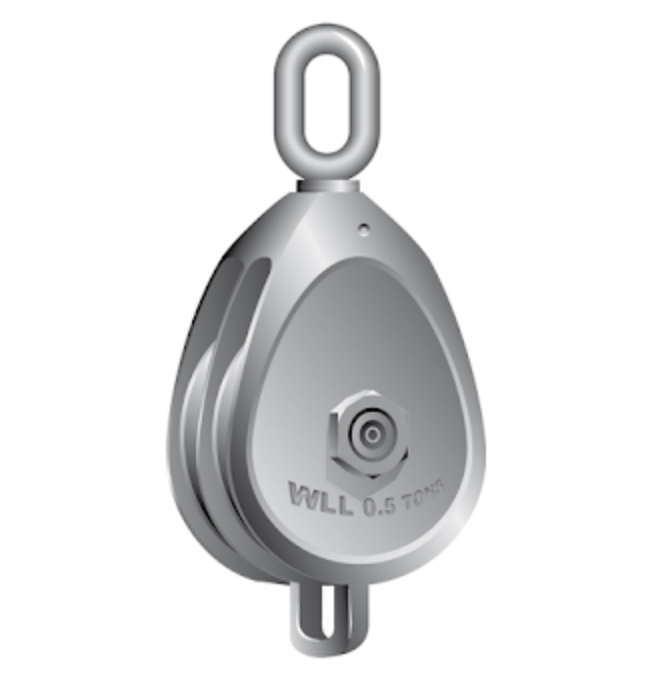

Galvanised Malleable Iron Block Swivel Oval Eye

Galvanised malleable iron body.
Hot dipped galvanised finish.
Fitted with plain bore as standard with grey iron sheave.
Also available with steel sheave and bronze brush.
Marked with CE, W.L.L, size and rope.
Certification available
For use with fibre rope.

Specification

Size	Single Sheave			Double Sheave			Treble Sheave			Fibre Rope Dia
inch	SKU	W.L.L. t	Weight kgs	SKU	W.L.L. t	Weight kgs	SKU	W.L.L. t	Weight kgs	mm
3	286-538-1	0.2	0.9	286-538-10	0.4	1	286-538-20	0.6	1.9	12
4	286-538-2	0.4	1.5	286-538-11	0.9	2	286-538-21	1	2.6	16
5	286-538-3	0.5	2.2	286-538-12	1.1	3.3	286-538-22	1.5	5	18
6	286-538-4	1	4	286-538-13	2	5.5	286-538-23	3	7	24
