Description

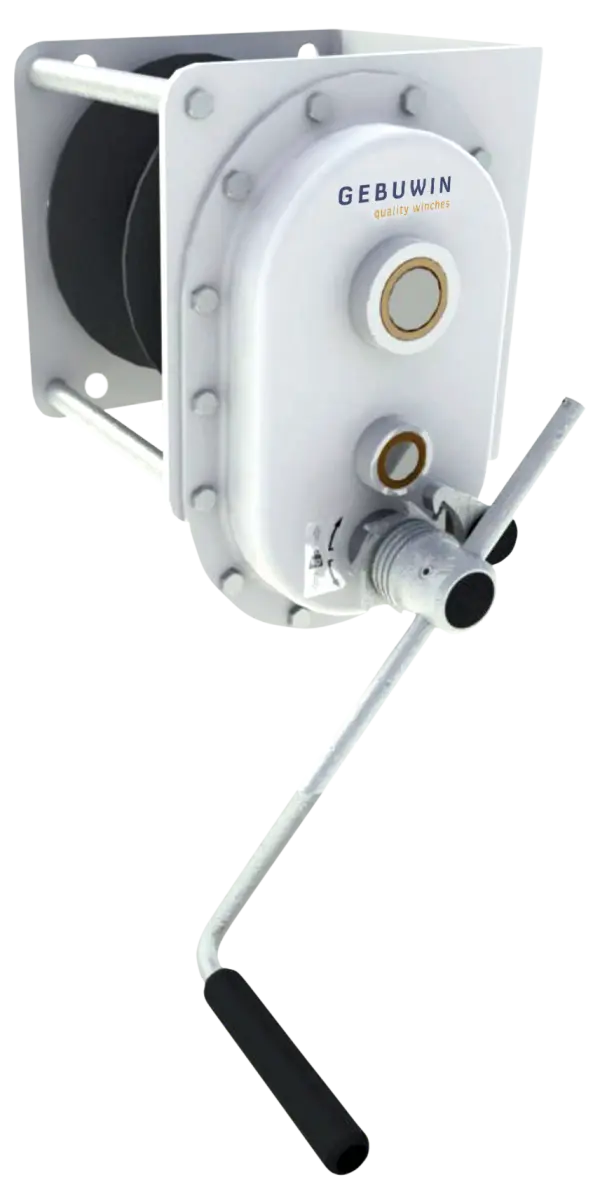

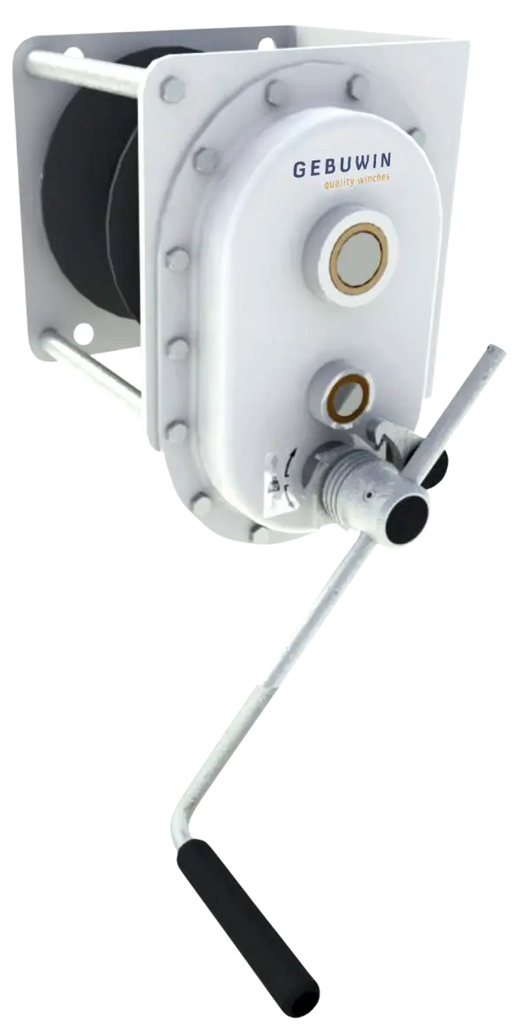

Gebuwin ATEX Spur Gear Hand Winch 1000kg

Beautifully executed spur gear winch, fast and easy. The winch can be mounted to both the wall and the floor. When used for pulling a free spool mechanism is available to disengage the drum. The hand winch is IP54 standardised, which means that it is resistant to water splashes. In addition to its normal version, this winch is also available in stainless steel 304 (156-15-20).

In short, this is a robust player among hand winches that goes the extra mile when it comes to possibilities and capacity.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • protection classification IP54
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards, downwards or at the left
  • closed gearbox to protect against environmental influence
  • adjustable crank
  • suitable for wall and floor mounting
  • 1 layer of paint

Spec

Capacity 1st layer

1000 kg

Capacity 4th layer

726 kg

Capacity top layer

614 kg

Rope diameter-Ø

8 mm

Rope storage 1st layer

3,5 meter

Rope storage 4th layer

19,5 meter

Rope storage top layer

33 meter

Lift per crank rotation

20 mm

Crank effort at full load

11 daN

Weight (without rope)

27 kg
