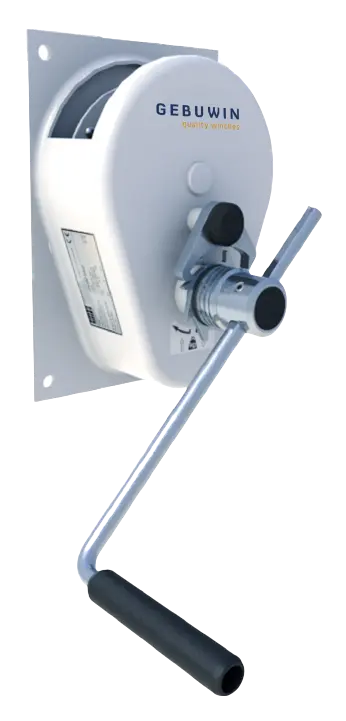

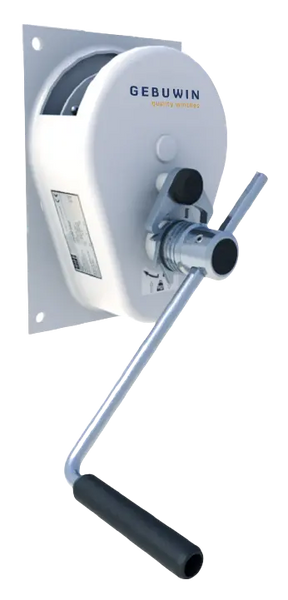

Gebuwin ATEX Spur Gear Hand Winch 300kg

Name: Gebuwin ATEX Spur Gear Hand Winch 300kg
Brand: Gebuwin
Price: 592.80 GBP
Availability: OutOfStock

Gebuwin SKU: 156-15-31

1 2

Gebuwin ATEX Spur Gear Hand Winch 300kg

Gebuwin ATEX Spur Gear Hand Winch 300kg This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system... Read More

Gebuwin SKU: 156-15-31

£592.80

Sale TODAY'S PRICE £592.80

Out of stock (0)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

Description

Gebuwin ATEX Spur Gear Hand Winch 300kg

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

winch suitable for lifting and pulling in compliance with EN13157
static safety factor 4
load pressure brake with double ratchet system for safe stable hold of the load
cable outlet upwards
adjustable crank
suitable for wall mounting
1 layer of paint

Spec

Capacity 1st layer	300 kg
Capacity 4th layer	234 kg
Capacity top layer	172 kg
Rope diameter-Ø	4 mm
Rope storage 1st layer	2,3 meter
Rope storage 4th layer	12,5 meter
Rope storage top layer	35,4 meter
Lift per crank rotation	32 mm
Crank effort at full load	5,5 daN
Weight (without rope)	10 kg
