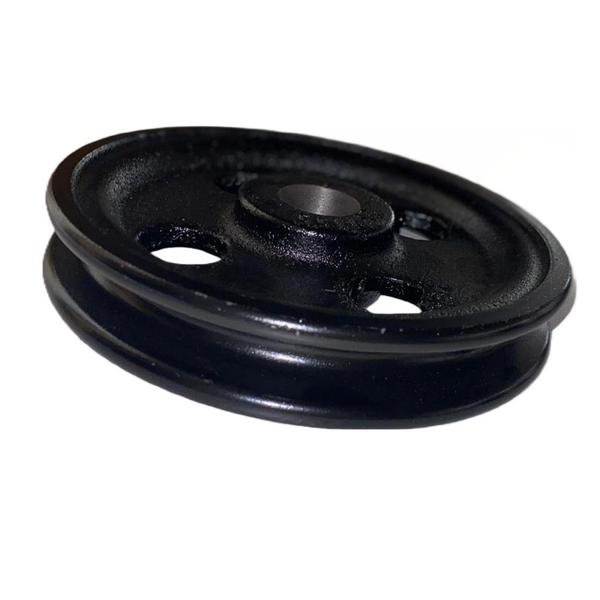

Gebuwin Pulleys (Pulley only) 150-7500kg

Name: Gebuwin Pulleys (Pulley only) 150-7500kg
Brand: Gebuwin
SKU: 156-20-3A
Price: 44.97 GBP
Availability: OutOfStock

Gebuwin SKU: 156-20-3A

1 1

Pulley KB 150-7500 kg *****(Pulley only no bracket)****** The Gebuwin pulley are solidly manufactured and are specially developed for hand winch applications. Product specifications Robust construction due to a cast iron cable pulley in a steel frame Suitable only for hand winch applications Cable pulleys are fitted wi Read More

£98.93

Sale TODAY'S PRICE £98.93

In stock (3)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Pulley KB 150-7500 kg

*****(Pulley only no bracket)******

The Gebuwin pulley are solidly manufactured and are specially developed for hand winch applications.

Product specifications

Robust construction due to a cast iron cable pulley in a steel frame
Suitable only for hand winch applications
Cable pulleys are fitted with sliding bearings
The numbers in the product name correspond with the maximum load capacities
Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M

The coding for the Pulleys is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment of the product. The explanation for the coding is as follows:

SKU		156-20-1a	156-20-2a	156-20-3a	156-20-4a	156-20-5a	156-20-6a	156-20-7a
Model		KB150	KB300	KB600	KB1500	KB2000	KB4000	KB7500
Max Capacity	(kg)	150	300	600	1500	2000	4000	7500
Max DIA Cable	(mm)	4	4	6	10	12	16	21
DIA of Pulley Wheel	(mm)	90	100	120	155	220	260	310
Bore	(mm)	14.1	14.1	25.1	25.1	35.1	35.1	45.1
Weight	(kg)	1	1	1.5	3	6.5	11.5	21

Type coding:
KB = Pedestal

Version coding:
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1 EV = electrolyte zinc plated, min. 6 microns

Technical Area:

Pulley Cat 2018
