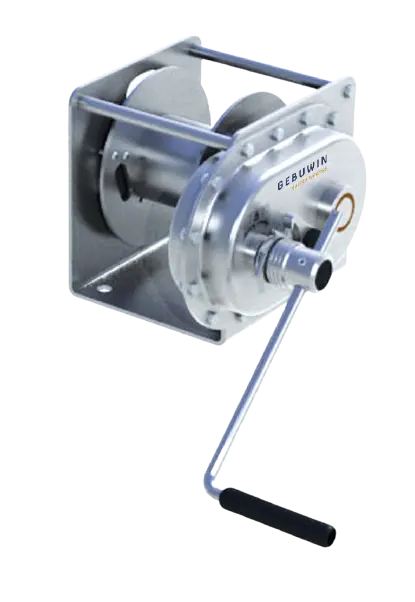

Gebuwin Spur Gear Hand Winch 1500kg, Stainless Steel

Gebuwin Spur Gear Hand Winch 1500kg, Stainless Steel

SKU: 156-15-21

Read More
Regular price £1,732.80
Regular price RRP Sale price TODAY'S PRICE £1,732.80

Out of stock (0)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Gebuwin Spur Gear Hand Winch 1500kg, 304 Stainless Steel

Beautifully executed spur gear winch, fast and easy. The winch can be mounted to both the wall and the floor. When used for pulling a free spool mechanism is available to disengage the drum.

The hand winch is IP54 standardised, which means that it is resistant to water splashes. In addition to its normal version, this winch is also available in stainless steel 304.

In short, this is a robust player among hand winches that goes the extra mile when it comes to possibilities and capacity.

  • winch suitable for lifting and pulling in compliance with EN13157
  • static safety factor 4
  • protection classification IP54
  • load pressure brake with double ratchet system for safe stable hold of the load
  • cable outlet upwards, downwards or at the left
  • closed gearbox to protect against environmental influence
  • adjustable crank
  • suitable for wall and floor mounting
  • 1 layer of paint

Spec

Finish

Full stainless steel grade 304

Capacity 1st layer

1500 kg

Capacity 4th layer

1025 kg

Capacity top layer

927 kg

Rope diameter-Ø

10 mm

Rope storage 1st layer

2,5 meter

Rope storage 4th layer

15,4 meter

Rope storage top layer

21 meter

Lift per crank rotation

14 mm

Crank effort at full load

12 daN

Weight (without rope)

27,5 kg
