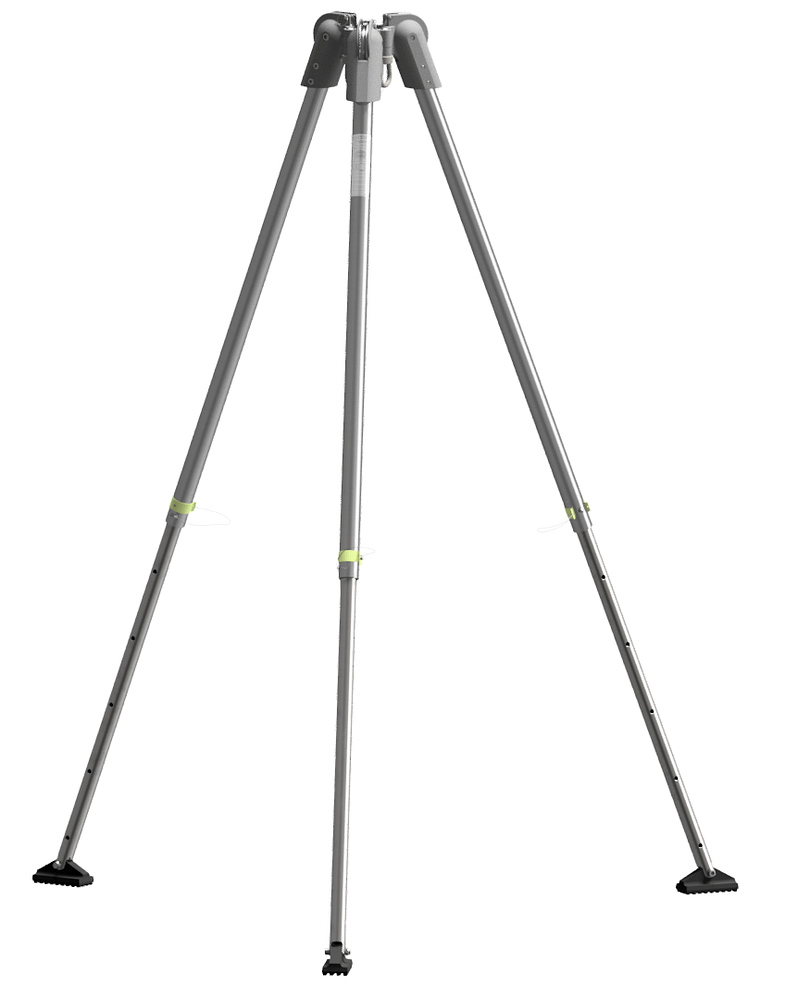

Globestock SENTRY Tripod 230 Standard

The SENTRY Tripod 230 is an EN795 (class B) + TS16415 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access.

Maximum working load (MWL) 200kg for personnel use (safety factor 10:1), and 250kg for movement of loads.

There are two sizes available: GSE230S Standard Model (weight 21kg) or GSE230C Compact (weight18kg).

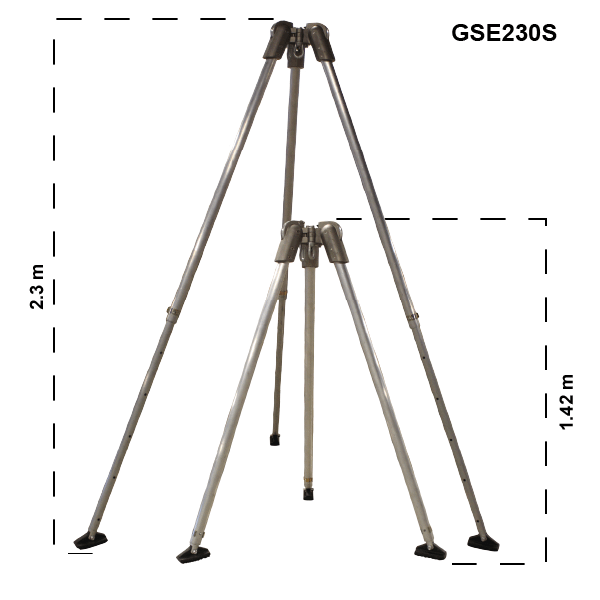

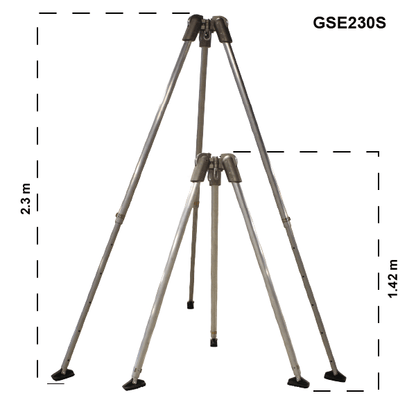

GSE230S Standard model assembled height at lowest setting is 1421mm.

GSE230S Standard model assembled height at highest setting is 2307mm.

It may be used as an anchor by more than one person simultaneously, providing the MWL is not exceeded.

The three-pulley head means that equipment can be fitted to any of the legs.  The mounting eyes on the underside of the head allow for equipment to also be fitted beneath the head, such as a chain hoist.

The SENTRY Tripod™ can also be supplied with brackets to suit the following equipment:

• The Globestock SAVER or STOP

• The Globestock 250kg WINCH fitted with Galvanised Steel Wire Rope
• The Globestock 200kg WINCH fitted with Stainless Steel Wire Rope

Features;

• 250kg Maximum Working Load for movement of materials.
• 200kg Maximum Working Load for movement of personnel.

• Tubular Aluminium Construction
• Telescopic Adjustable Legs with Rubber Cups
• Allows 2 Devices to be Mounted
• Suitable for use with Globestock SAVER , WINCH or STOP
• Brackets to fit the SAVER, WINCH or STOP  to the SENTRY Tripod can be purchased here.
• If you require a transport bag to help move the SENTRY Tripod around, these can be purchased here
• CE Certification
• Conforms to EN795

Globestock SENTRY Tripod - 230 Standard Model
