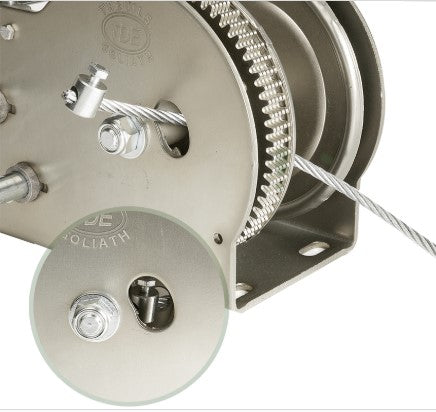

Goliath N Range of Pulling Winches with Ratchet (for use with Wire Rope)
-
Winches for pulling applications only (0% incline or load independently secured)
-
Reversible ratchet with 3 positions, except for 3N1 models (2 positions)
-
Speed options: 1 to 3 speeds available
- 1 speed: 3N1, 5N1, 7N1, 9N1
- 2 speeds: 16N2, 16N2F
- 3 speeds: 25N3F
-
Surface treatment: Zinc plated
-
Pulling capacity: From 470kg to 2,700kg
-
Handle options:
- Fixed on 3N1, 5N1, 7N1, 9N1
- Removable on 16N2, 16N2F, 25N3F
-
Speed-reducing brake: Available on 16N2F and 25N3F models
The N range of winches can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.
These winches are designed for use with wire rope, which is not included as standard but can be purchased as an optional extra.
*Important note for all users / purchasers :
These winches are neither designed according to EC standard nor for the transport of people or for lifting applications and must not be used for such purposes.
When in operation DO NOT reverse or change the ratchet position until the load has been secured safely.
Do not come with safety brake.
Like any other ratchet winch on the market, the N series cannot be labelled CE.
Attention: any pulled or lifted load must be secured by another device while operating (except on a horizontal surface).
Spec
**Warning: These winches are not designed according to EC standard
Do not come with safety brake
Model
|
SKU
|
Pulling Capacity
|
Handle
|
Brake
|
Maximum Cable 1 Ø (mm) / length (m)
|

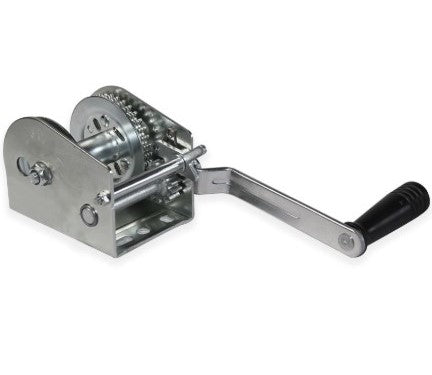

Goliath 3N1
|
151-9-1
|
470kg
|
Fixed |
No
|
ø3/22m
|

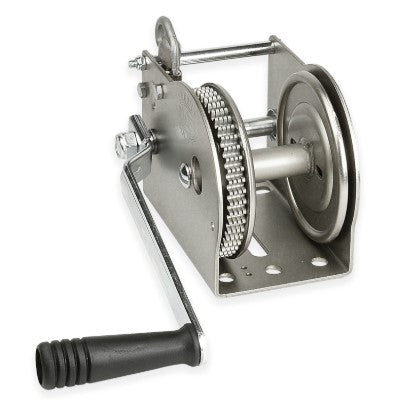

Goliath 5N1
|
151-9-2
|
596kg
|
Fixed |
No
|
ø5/17m
|

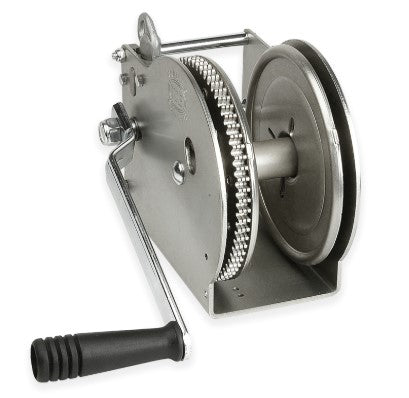

Goliath 7N1
|
151-9-3
|
723kg
|
Fixed |
No
|
ø5/32m
|

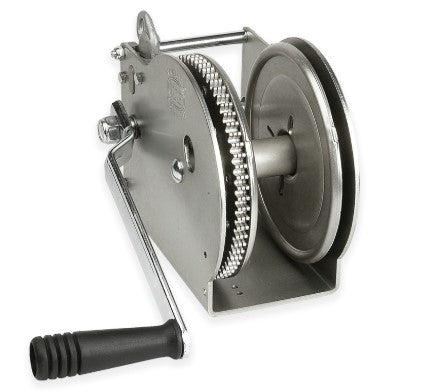

Goliath 9N1
|
151-9-4
|
894kg
|
Fixed |
No
|
ø6/21m
|

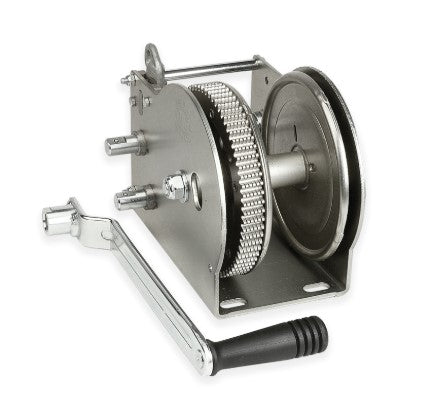

Goliath 16N2F
|
151-9-5
|
1556kg
|
Removable |
No
|
ø7/14m
|

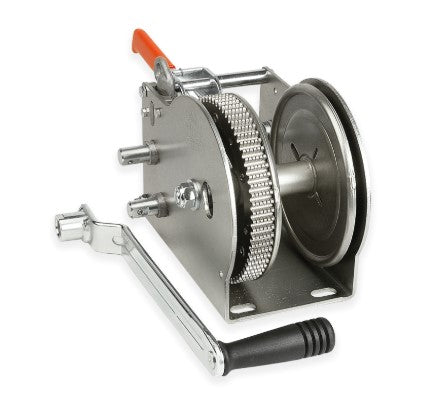

Goliath 16N2F
|
151-9-6
|
1556kg
|
Removable |
Speed reducing brake
|
ø7/14m
|

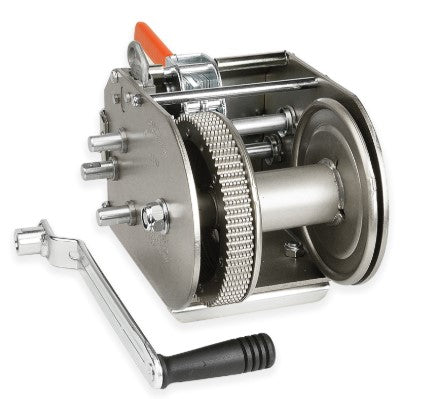

Goliath 25N3F
|
151-9-7
|
2741kg
|
Removable |
Speed reducing brake
|
ø8/14m
|
Downloads
Product Data sheet
