Goliath

Goliath TA Winch TA1200

Goliath TA Winch TA1200

SKU: 151-15-12

Customers rate us 4.8/5 based on 710 reviews.
View more ta tpv winches
More From goliath
1 1

Goliath

Goliath TA Winch TA1200

Goliath TA Winch TA1200

SKU: 151-15-12

Read More
Customers rate us 4.8/5 based on 710 reviews.
View more ta tpv winches
More From goliath
£156.00
RRP TODAY'S PRICE £156.00

Tax included. Shipping calculated at checkout.
European Union Buy from our EU store

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £500

- View options

Click & Collect from BL9 6EY

- Collect from our warehouse

View full details

Description

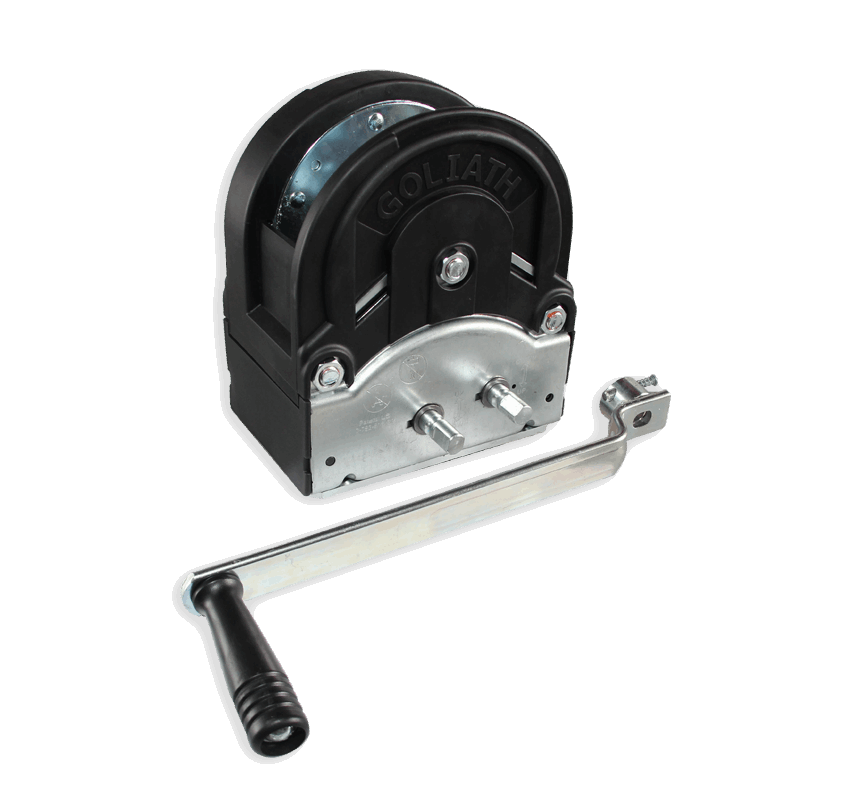

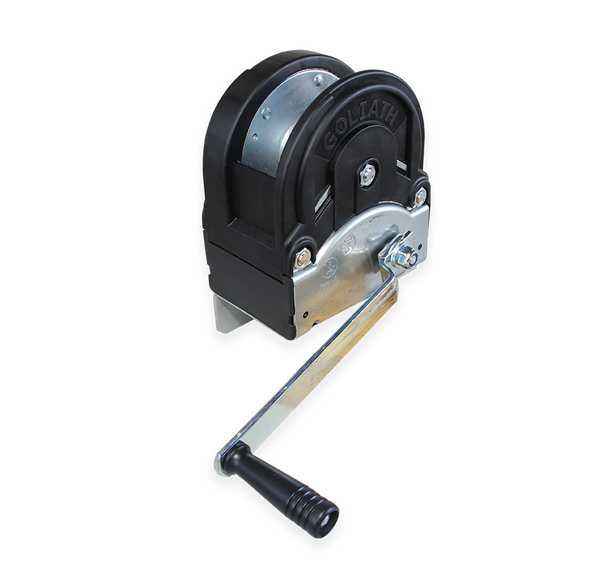

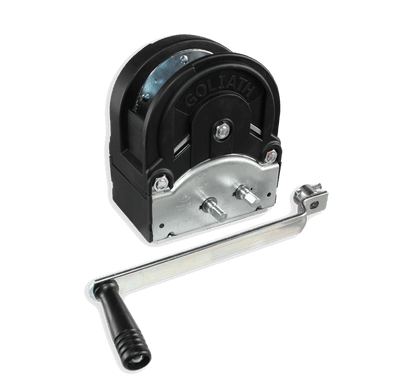

Goliath TA Winch

GOLIATH has been designing and making, for more than 30 years, winches that are used in a great number of industries.

The manual winch is a safety device governed by strict technical rules and whose design is framed by the European standard EN13157 A1.

Winches with new generation high safety self-braking system.

- Lifting capacity up to 900kg
- Towing capacity up to 1,600kg
- Double speed, protection cover
- Handle: fixed, removable, two, left and right
- Quick cable mounting

TA900 (151-15-12) Suits: 6mm DIA Cable

TA1200 (151-15-13) Suits: 7mm DIA Cable

Spec

 Type TA900 TA1200
SKU 151-15-12 151-15-13
Lifting Capacity 1st Layer: 700kg 900kg
Lifting Capacity Last Layer: 325kg 500kg
Cable 1 Ø (mm) / length (m) 6 / 15 7 / 10
Cable 2 Ø (mm) / length (m) 5 / 22 6 / 13
Number of Speeds 1 2
Reduction Ratio 1 1/4.85 1/4.85
Reduction Ratio 2 - 1/9.71
Reduction Ratio 3 - -
Drum Hub Ø 54mm 63mm
Type of Winch Lateral. Setup/Removable Handle Lateral. Setup/Removable Hand
Handle Removable Removable
Handle Length: 290mm 290mm
Weight: 5.7kg 6.6kg


 Downloads:

Legislation

The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
