Description

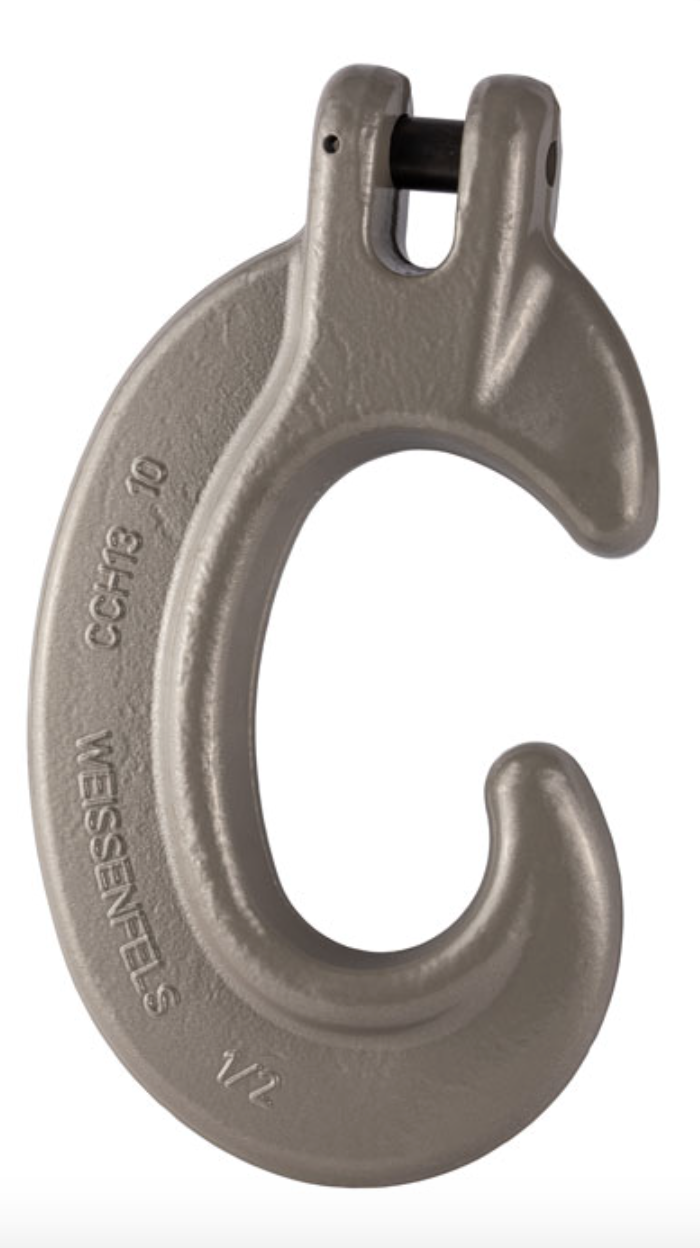

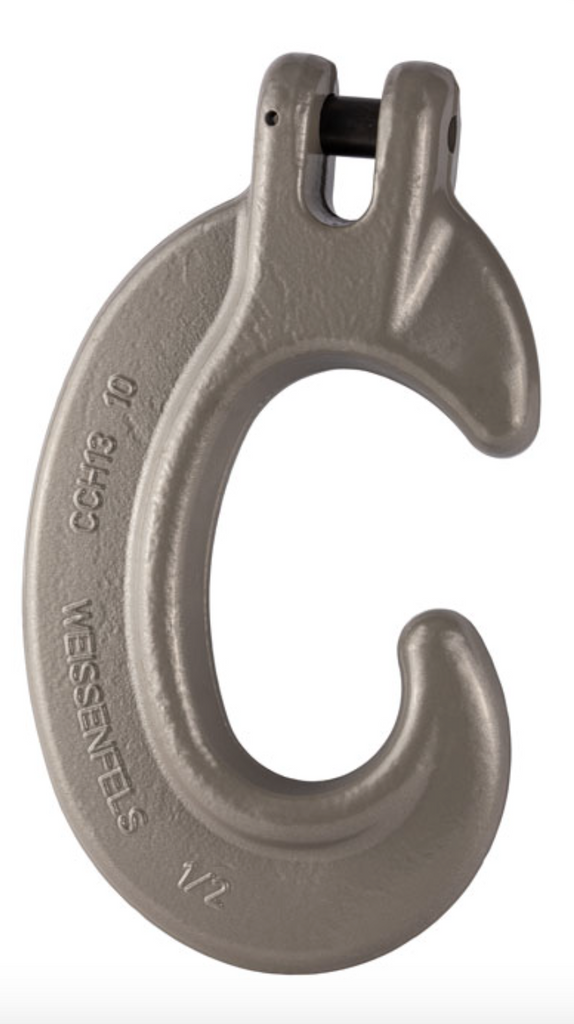

 KITO WEISSENFELS Grade 10 Clevis C Hook
  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Clevis fitting enables direct connection to chain.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity



            Spec

            SKU
            Chain Dia A G H O R P x L
            mm mm mm mm mm mm mm
            286-231-1
            7/8 9.5 22 27.5 20 90 9.6 x 23
            286-231-2
            10 12 28 38.5 28 129 12.5 x 29.5
            286-231-3
            13 15 35 51 41 166 16 x 37



            Technical Data

            SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
            mm t kN kN kgs
            286-231-1 7/8 2.5 62.8 100 0.58
            286-231-2 10 4 98.2 157 1.46
            286-231-3 13 6.7 166 265 3
