KITO - Grade 10 Clevis Sling Hook c/w Safety Catch to BS-EN 1677-2

Name: KITO - Grade 10 Clevis Sling Hook c/w Safety Catch to BS-EN 1677-2
Brand: KITO Weissenfels
SKU: 286-225-1
Price: 15.86 GBP
Availability: InStock

KITO Weissenfels SKU: 286-225-1

1 1

KITO WEISSENFELS - Grade 10 Clevis Sling Hook c/w Safety Catch Grade 10 alloy steel, quenched and tempered. Grey painted... Read More

£15.86

Sale TODAY'S PRICE £15.86

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more kito weissenfels grade 10 chain slings and fittings

Description

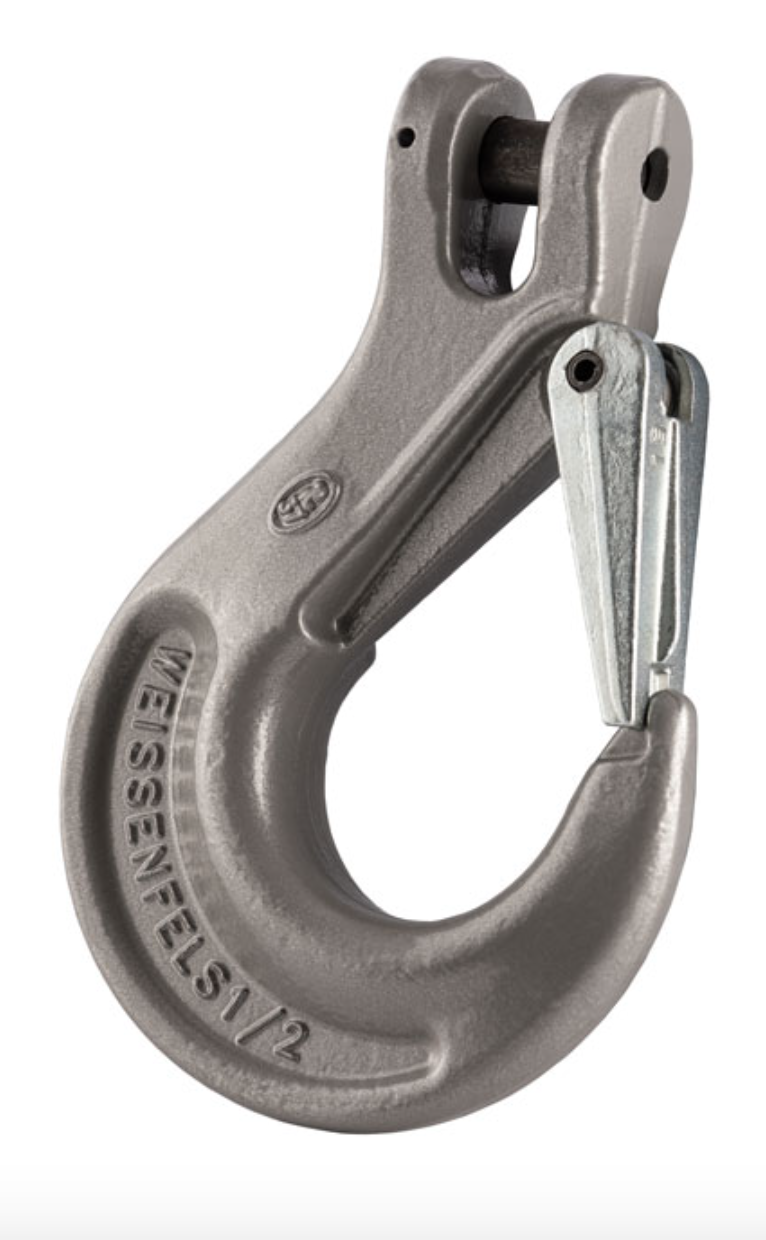

KITO WEISSENFELS - Grade 10 Clevis Sling Hook c/w Safety Catch

Grade 10 alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of BS EN 1677-4 +25% of loads.
Clevis fitting enables direct connection to chain.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Certification - Declaration of Conformity

Specification

SKU	Chain Dia	A	D	G	H	O	O1	R	P x L
	mm	mm	mm	mm	mm	mm	mm	mm	mm
286-225-1	6	7	18	16.5	20	27	19	69	7.4 x 16.5
286-225-2	7/8	9	25	19	28	33.5	26	94.5	9.5 x 23
286-225-3	10	11.5	30	25	33	40	31	109	12.5 x 29.5
286-225-4	13	14.5	38	30	40	50	39	135	16 x 37
286-225-5	16	17.5	44	37	47	58	45	155	20 x 52
286-225-6	19/20	23	52	51	52	61	53	183	24 x 73

Technical Data

SKU	Chain Dia	W.L.L.	M.P.F.	M.B.F.	Weight
	mm	t	kN	kN	kgs
286-225-1	6	1.4	35.3	56.5	0.27
286-225-2	7/8	2.5	62.8	100	0.61
286-225-3	10	4	98.2	157	1.12
286-225-4	13	6.7	166	265	2
286-225-5	16	10	251	402	3.4
286-225-6	19/20	16	393	628	6.8
