KITO - Grade 10 Quad Master Link Assembly - DG4 Series to BS-EN 1677-4

Name: KITO - Grade 10 Quad Master Link Assembly - DG4 Series to BS-EN 1677-4
Brand: KITO Weissenfels
SKU: 286-217-1
Price: 107.64 GBP
Availability: InStock

KITO Weissenfels SKU: 286-217-1

1 1

KITO - Grade 10 Quad Master Link Assembly - DG4 Series to BS-EN 1677-4

KITO WEISSENFELS Grade 10 Quad Master Link Assembly – DG4 Series Grade... Read More

KITO Weissenfels SKU: 286-217-1

£107.64

Sale TODAY'S PRICE £107.64

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more kito weissenfels grade 10 chain slings and fittings

Description

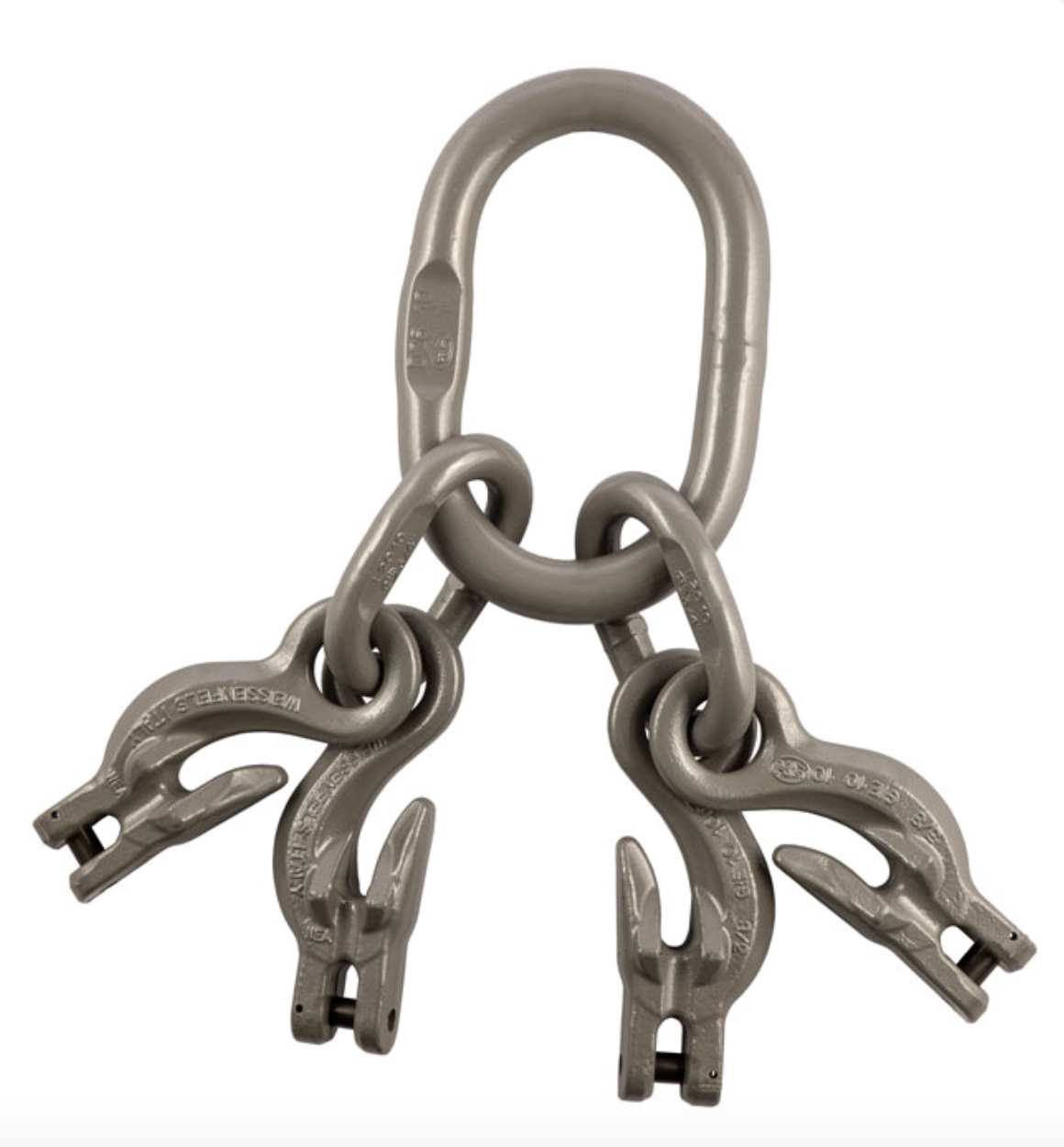

KITO WEISSENFELS Grade 10 Quad Master Link Assembly – DG4 Series

Grade 10 alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of BS EN 1677-4 +25% of loads.
Suitable for use with grade 10 chains and wire/fibre rope slings.
Specially designed for direct clevis connection of hooks to chain.
No reduction in W.L.L. of sling when using the shortening hook.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Certification - Declaration of Conformity

Spec

SKU	Chain Dia 3-4 legs	W.L.L.	M.P.F.	M.B.F.	D	L	L1	W	Weight
	mm	t	kN	kN	mm	mm	mm	mm	kgs
286-217-1	6	3	73.6	118	19	135	283	75	2.46
286-217-2	7/8	5.3	130	208	23	160	347	90	4.8
286-217-3	10	8.4	206	330	27	180	413	100	8.6
286-217-4	13	14	343	549	33	200	500	110	16.8
286-217-5	16	21.2	520	832	38	275	647	150	29.3
