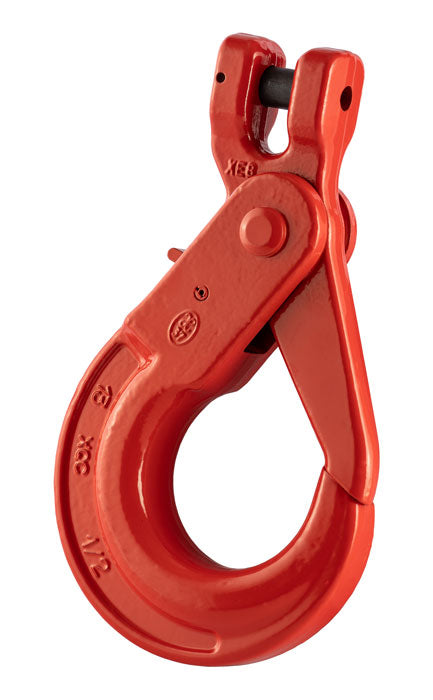

Grade 8 Clevis Self Locking Hook (103 Series) to BS-EN 1677-3
- Alloy steel, quenched and tempered.
- Red painted finish.
- Conforms to BS EN 1677-3.
- Temperature range -40°C to +400°C (Reductions in W.L.L apply).
- Clevis fitting enables direct connection to chain.
- Certification - Declaration of Conformity
Spec
SKU
|
Chain Dia |
Part No. |
C |
D |
E |
F |
G |
H |
L |
M |
|
mm |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-15-1
|
7/8 |
103-7/8 |
20 |
33 |
25 |
10 |
28 |
45 |
122 |
165 |
286-15-2
|
10 |
103-10 |
27 |
44 |
35 |
12.5 |
35 |
58 |
151 |
207 |
286-15-3
|
13 |
103-13 |
31 |
54.5 |
40 |
16 |
38 |
71 |
184 |
255 |
286-15-4
|
16 |
103-16 |
40 |
67 |
52 |
20 |
50 |
84 |
212 |
300 |
286-15-5
|
20 |
103-20 |
48 |
90 |
62 |
24 |
80 |
90 |
243 |
340 |
Technical Data
SKU |
Chain Dia |
W.L.L. |
M.P.F. |
M.B.F. |
Weight |
|
mm |
t |
kN |
kN |
kgs |
286-15-1 |
7/8 |
2 |
50.3 |
80.4 |
0.93 |
286-15-2 |
10 |
3.15 |
78.5 |
126 |
1.73 |
286-15-3 |
13 |
5.3 |
133 |
212 |
3.1 |
286-15-4 |
16 |
8 |
201 |
322 |
6 |
286-15-5 |
20 |
12.5 |
314 |
503 |
7.5 |
