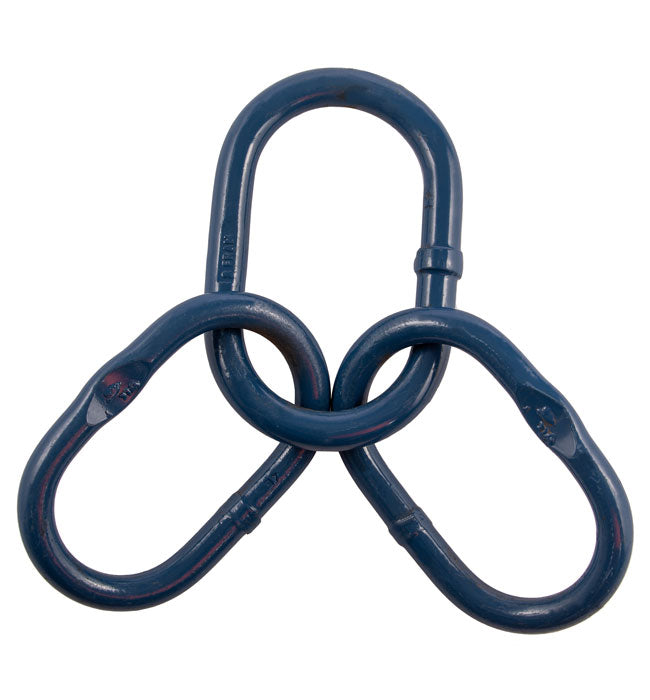

Grade 8 Fram Quad Master Link Assembly
- Alloy steel, quenched and tempered.
- Blue painted finish.
- Type approved according to DNV GL.
- Conforms to BS EN 1677-4.
- Minimum breaking load is 5 times the W.L.L.
- Certification - Declaration of Conformity
Spec
SKU
|
Part No |
D1 |
L1 |
W1 |
D2 |
L2 |
W2 |
W.L.L. |
Weight |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
t |
kgs |
286-32-1
|
Q16B |
16 |
120 |
70 |
13 |
95 |
51 |
4.1 |
1.2 |
286-32-2
|
Q20B |
20 |
170 |
90 |
16 |
120 |
70 |
6.5 |
2.5 |
286-32-3
|
Q22B |
22 |
170 |
90 |
20 |
150 |
80 |
8.2 |
2.8 |
286-32-4
|
Q22B8 |
22 |
270 |
140 |
16 |
120 |
70 |
5.8 |
3.5 |
286-32-5
|
Q25B |
25 |
190 |
100 |
20 |
150 |
80 |
10.7 |
4.9 |
286-32-6
|
Q28B |
28 |
210 |
110 |
22 |
170 |
90 |
12.9 |
6.4 |
286-32-7
|
Q32B |
32 |
270 |
140 |
25 |
190 |
100 |
17.1 |
10 |
286-32-8
|
Q38B |
39 |
270 |
140 |
32 |
270 |
140 |
28.1 |
18.2 |
286-32-9
|
Q45B |
45 |
320 |
170 |
38 |
270 |
140 |
38.3 |
27.7 |
286-32-10
|
Q50B |
50 |
380 |
200 |
38 |
270 |
140 |
45 |
33.2 |
286-32-11
|
Q60B |
60 |
430 |
220 |
50 |
380 |
200 |
65.3 |
54 |
286-32-12
|
Q70B |
70 |
500 |
250 |
60 |
430 |
220 |
84.4 |
101.2 |
