Grade 80 Swivel Auto Lock Hook - Yellow Finish

Name: Grade 80 Swivel Auto Lock Hook - Yellow Finish
Brand: RiggFix
SKU: 285-8-1
Price: 43.26 GBP
Availability: InStock

RiggFix SKU: 285-8-1

1 5

Grade 80 Swivel Auto Lock Hook Available in the following capacities: 2.0t, 3.15t, 5.3t and 8.0t To suit the following chain sizes: 7/8mm, 10mm, 13mm and 16mm Read More

£43.26

Sale TODAY'S PRICE £43.26

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Description

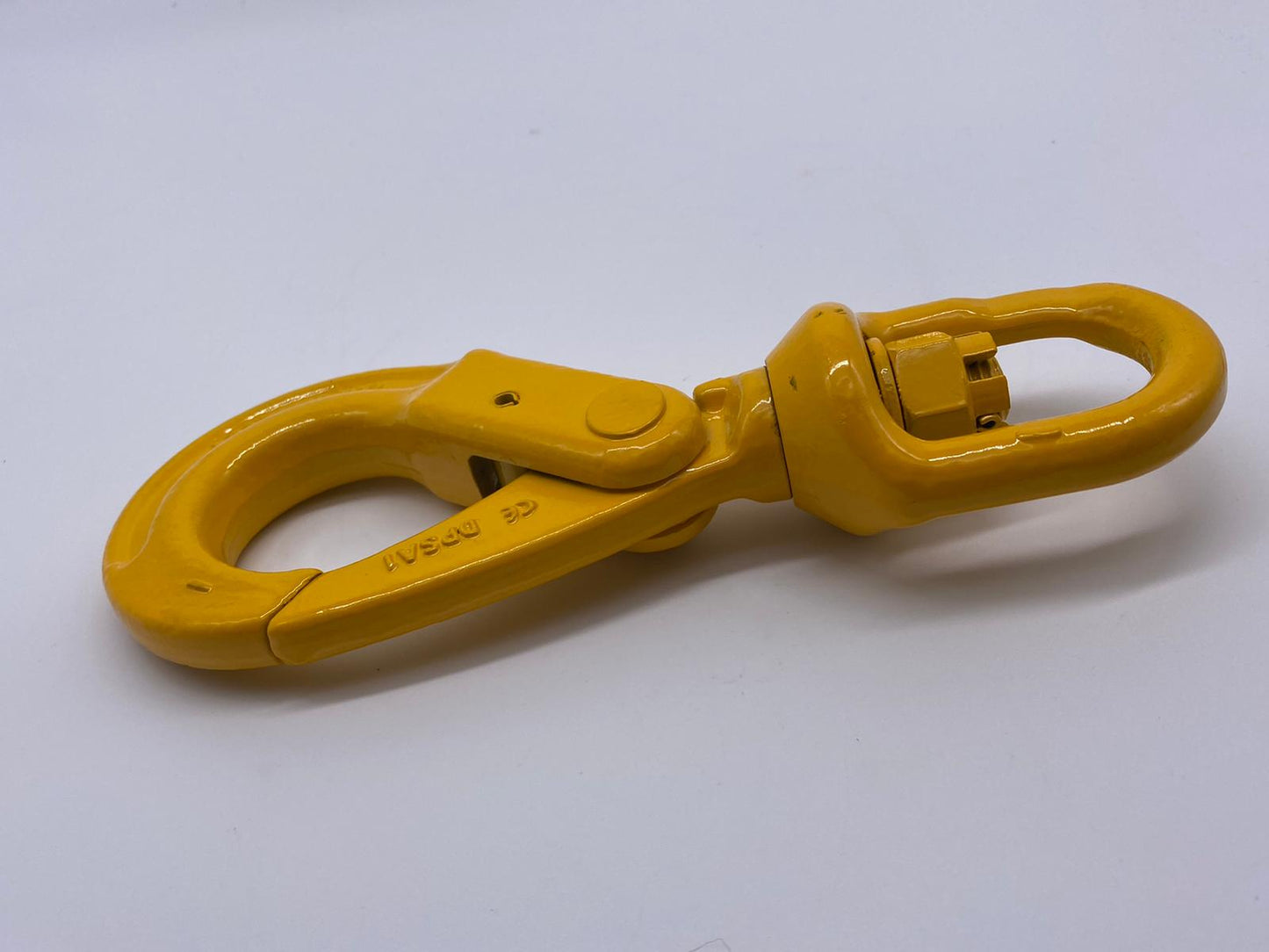

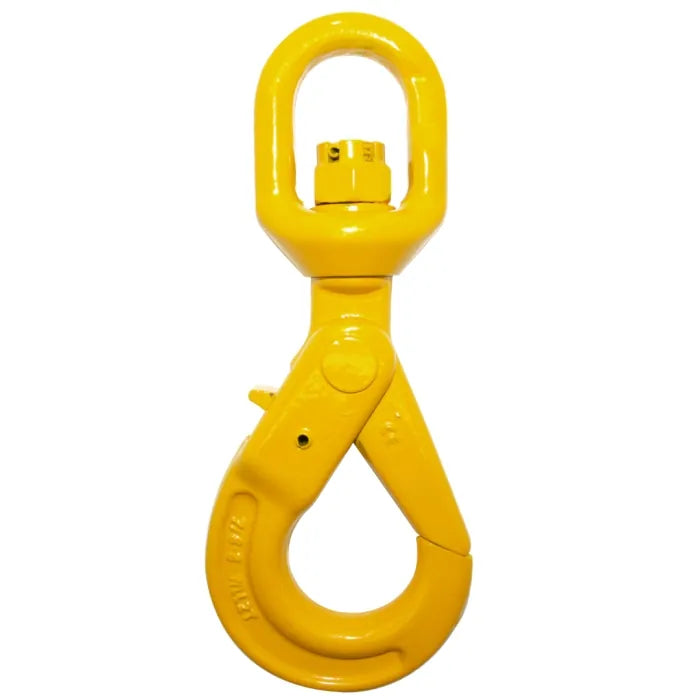

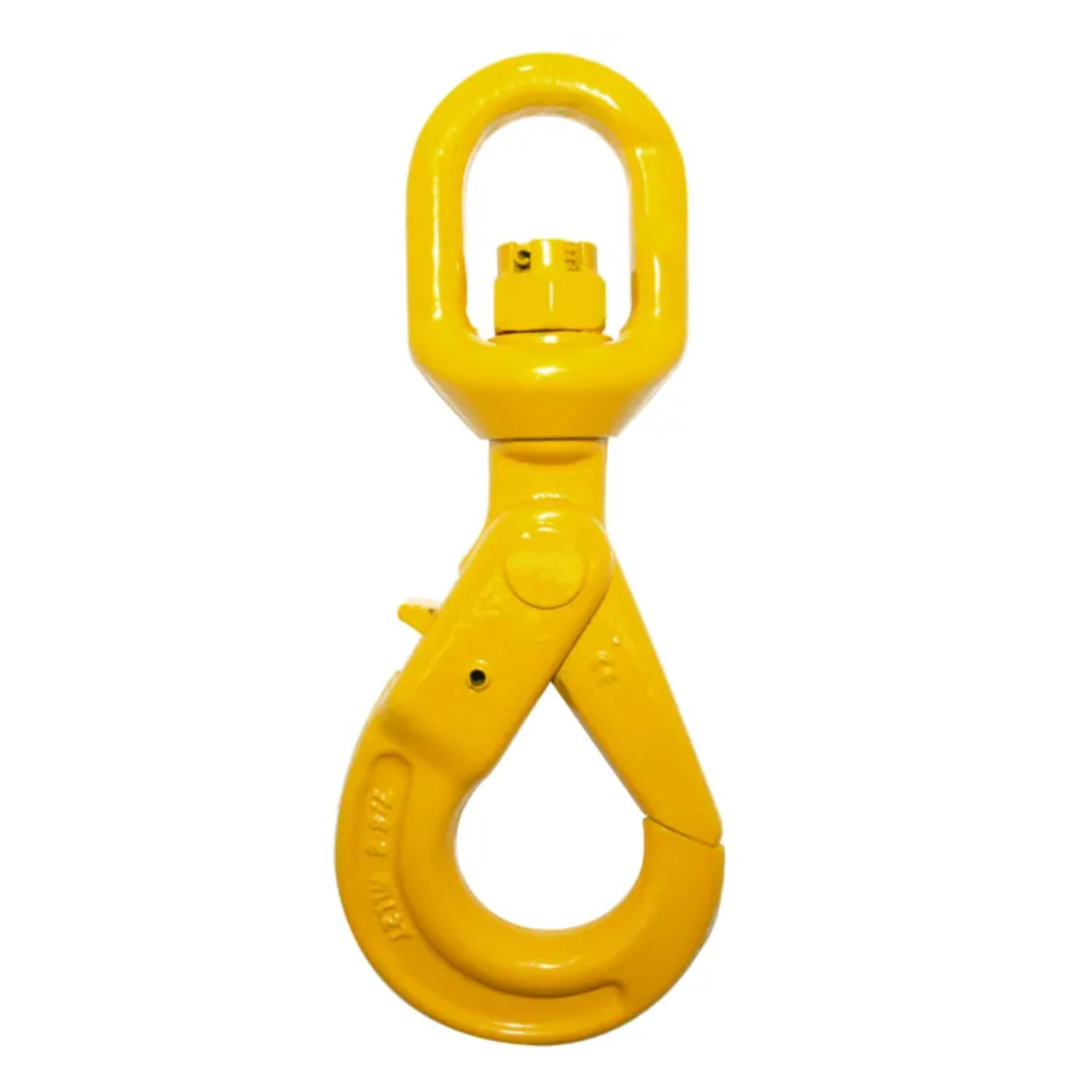

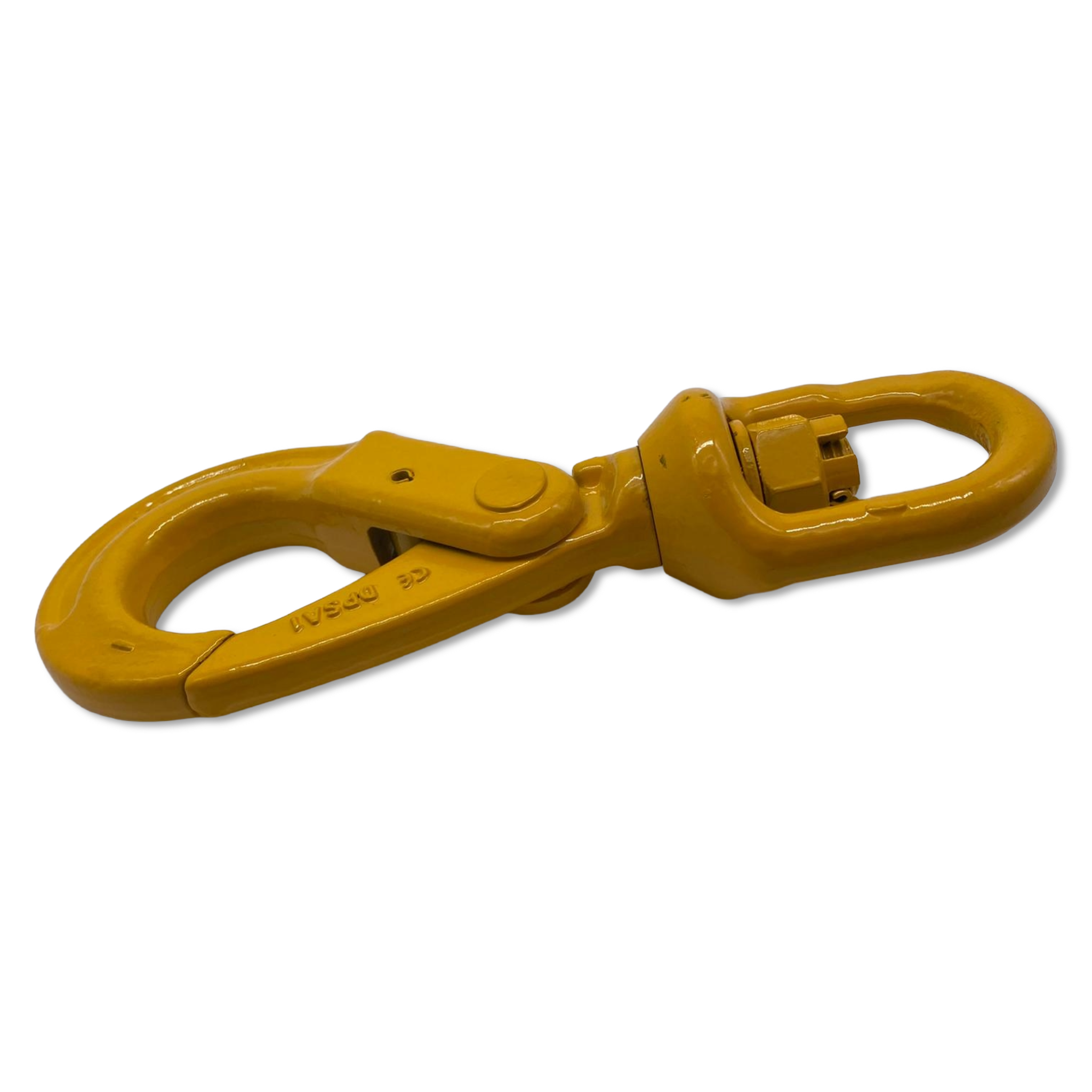

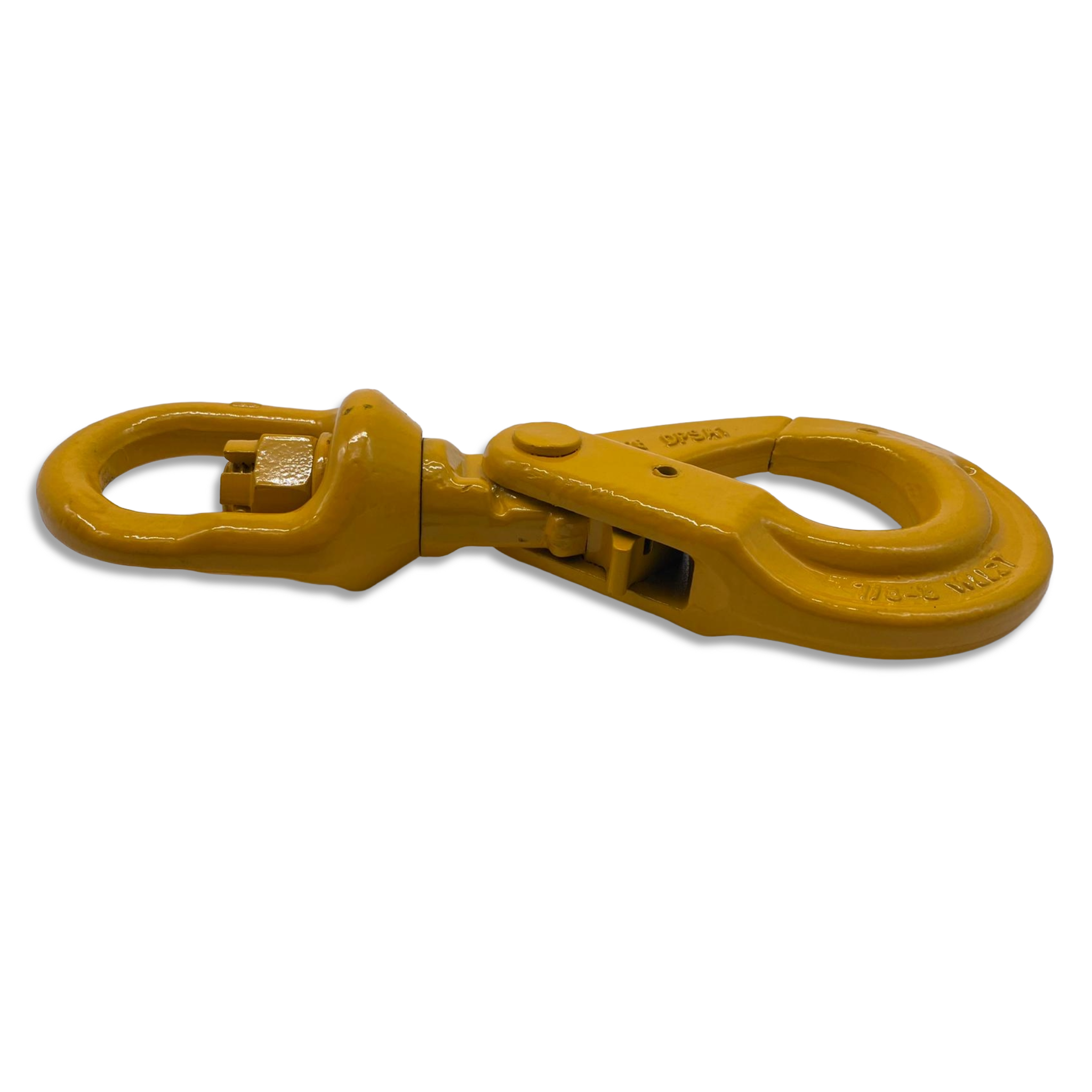

Grade 80 Swivel Auto Lock Hook with Yellow Finish

Available in the following capacities: 2.0t, 3.15t, 5.3t and 8.0t.
To suit the following chain sizes: 7/8mm, 10mm, 13mm and 16mm.
Swivel top attachment, 360 degree rotation.
Auto lock hook – self locking when hook is loaded.
Suitable for use in lifting applications.

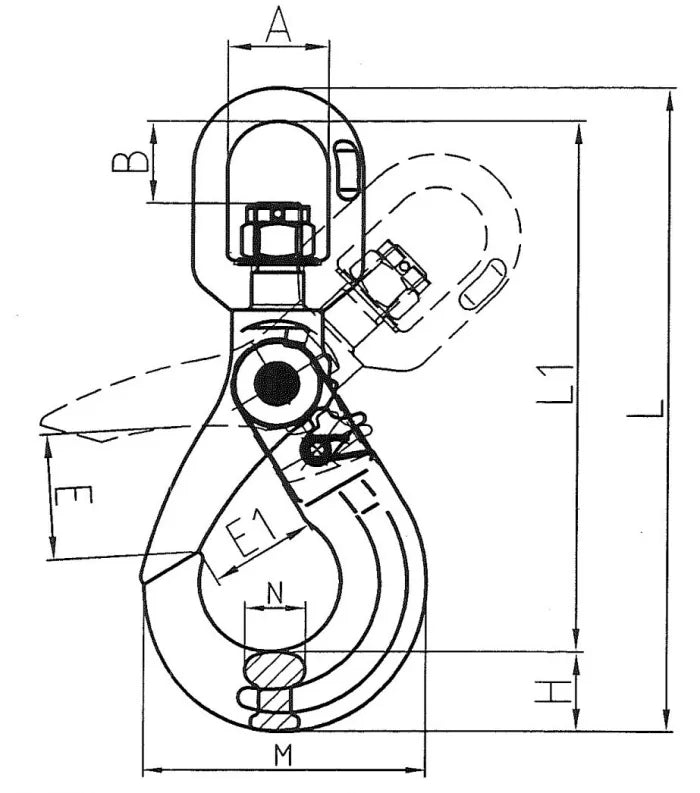

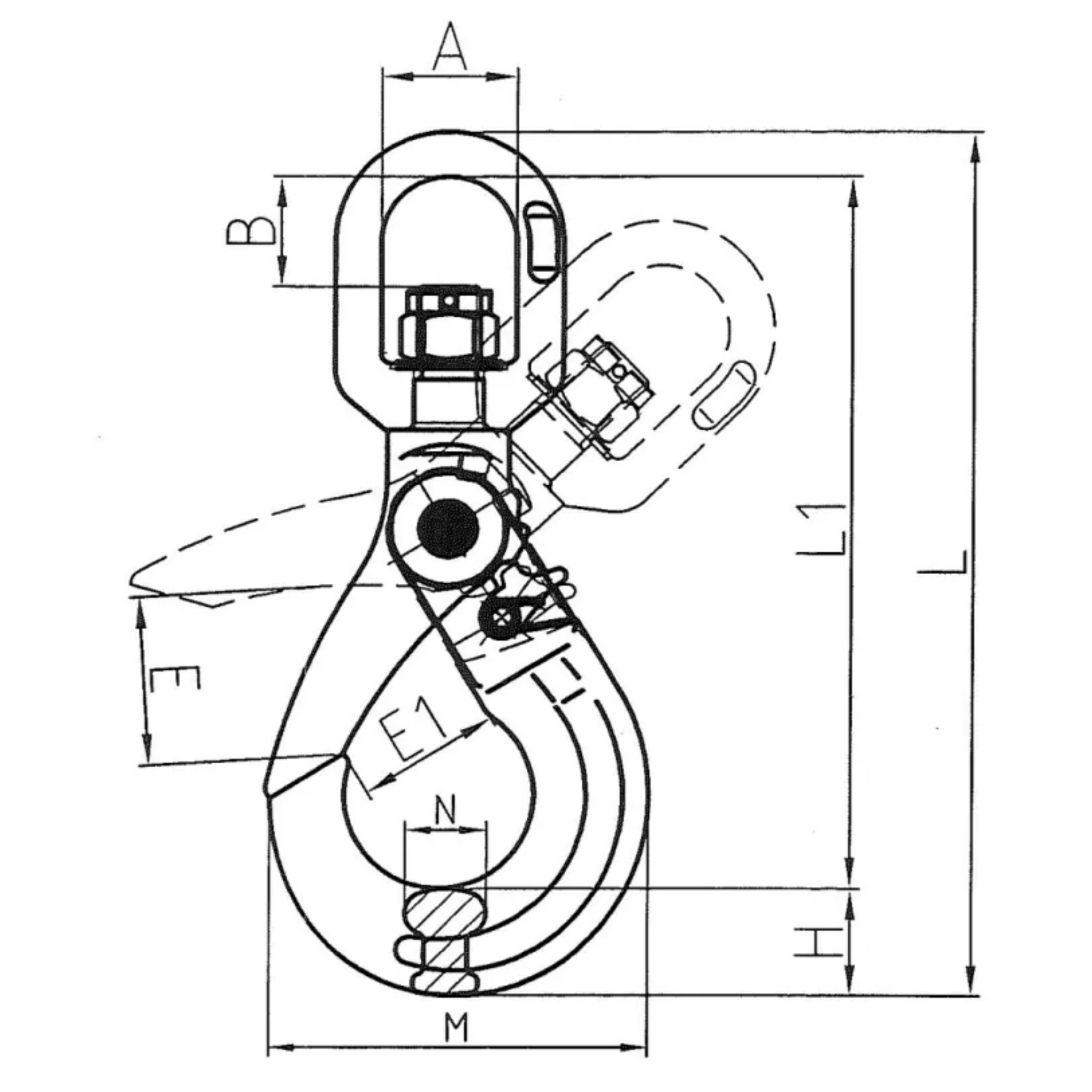

Specification

Chain Size	L	H	A	E	W.L.L	Weight
7/8mm	85mm	32mm	9.5mm	29mm	2.0t	0.48kg
10mm	104mm	35mm	13mm	39mm	3.15t	0.95kg
13mm	128mm	42mm	16.5mm	47mm	5.3t	1.80kg
16mm	150mm	54mm	21.5mm	55mm	8.0t	3.4kg

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

Please could you advise on the size of the cotter pin required to secure the nut on the 8.0t version of your Grade 80 Swivel Auto Lock Hook with Yellow Finish? Also are you aware the product Q&A form on your website uses a white font on a white background, so I can only see what I'm typing by selecting all the text typed with CTRL + A!

Sorry we don't have that information. And thank you for pointing that out; our team has fixed that right away!
