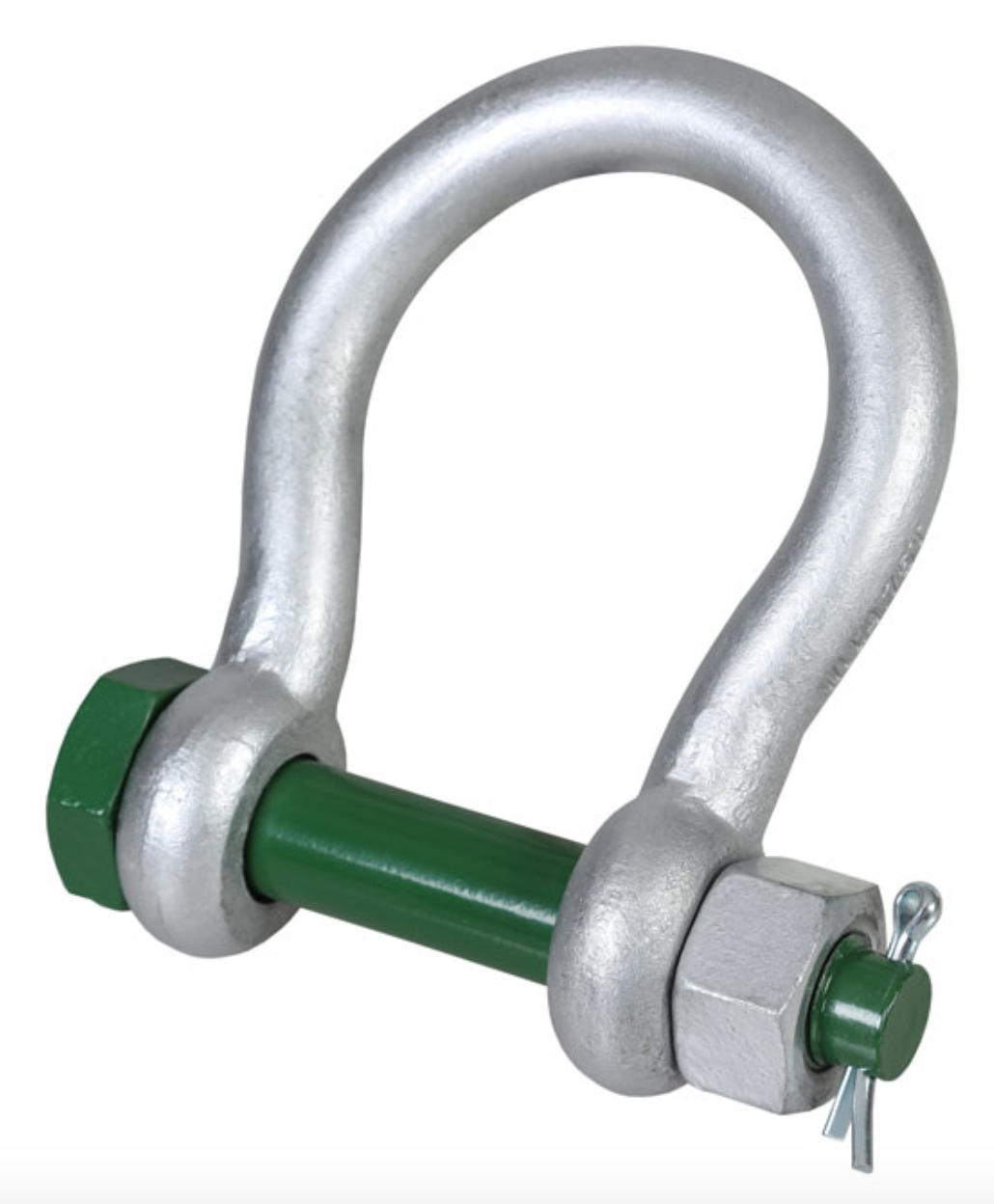

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

SKU: 269-24-1

Read More
Regular price £64.80
Regular price RRP Sale price TODAY'S PRICE £64.80

In stock (6)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to ASME B30.26.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available

Spec

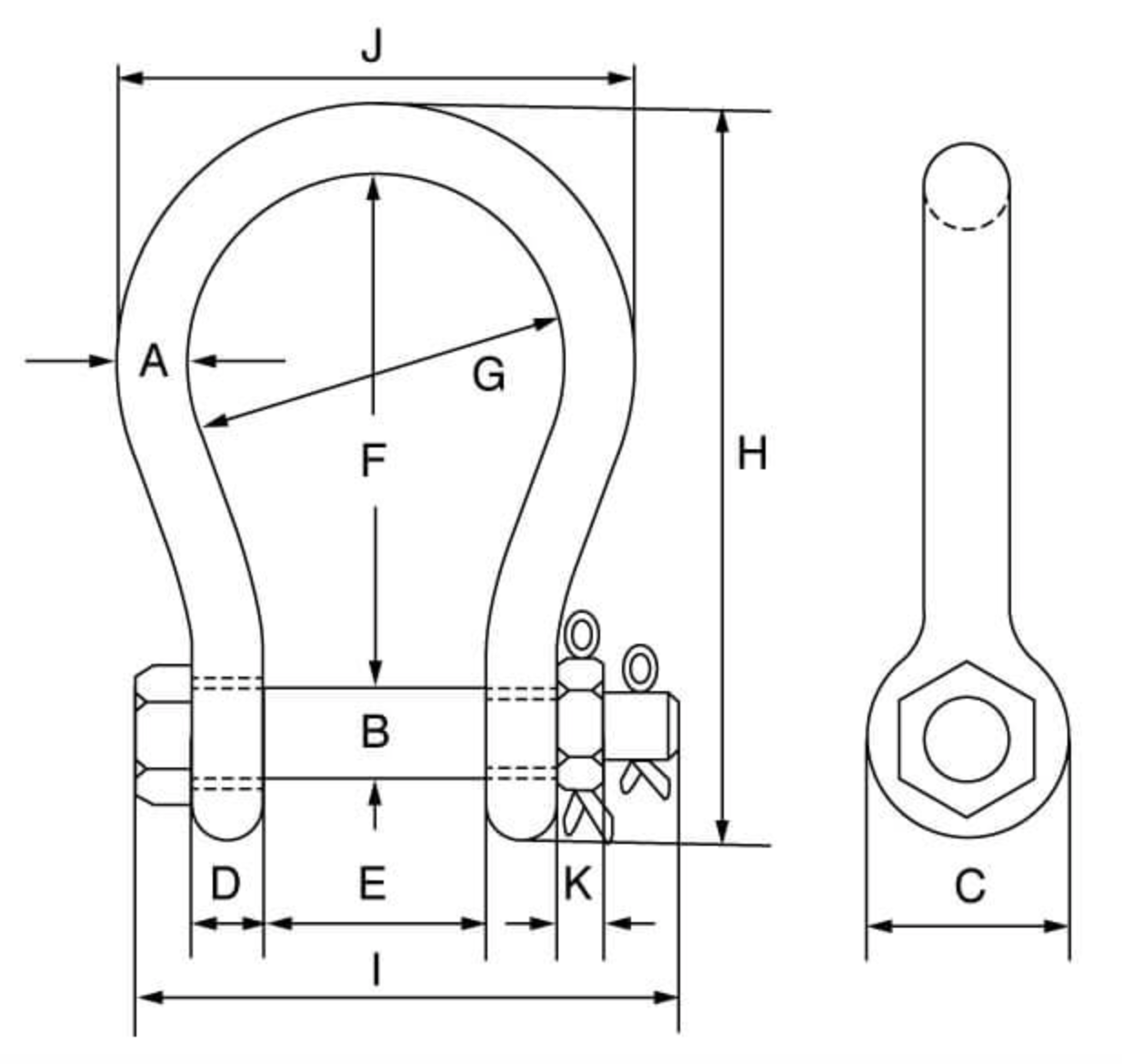

SKU W.L.L. A B C D E F G H I J K Weight
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-24-1 4.75 22 25 52 22 63 112 88 173 157 132 22 2.08
269-24-2 6.5 25 28 59 25 75 135 105 204 183 155 25 3.14
269-24-3 8.5 28 32 66 28 82 148 115 225 205 171 27 4.36
269-24-4 9.5 32 35 72 32 90 162 126 248 224 190 30 5.95
269-24-5 12 35 38 79 35 100 180 140 274 245 210 33 7.87
269-24-6 16 38 42 89 38 106 216 159 319 248 235 19 12.5
269-24-7 25 45 50 104 45 127 248 175 370 296 265 23 18
269-24-8 30 50 57 11 50 146 273 207 411 332 307 26 25
269-24-9 55 65 70 145 65 165 314 213 487 389 343 32 48
269-24-10 75 75 83 163 75 184 330 254 537 455 420 39 70
