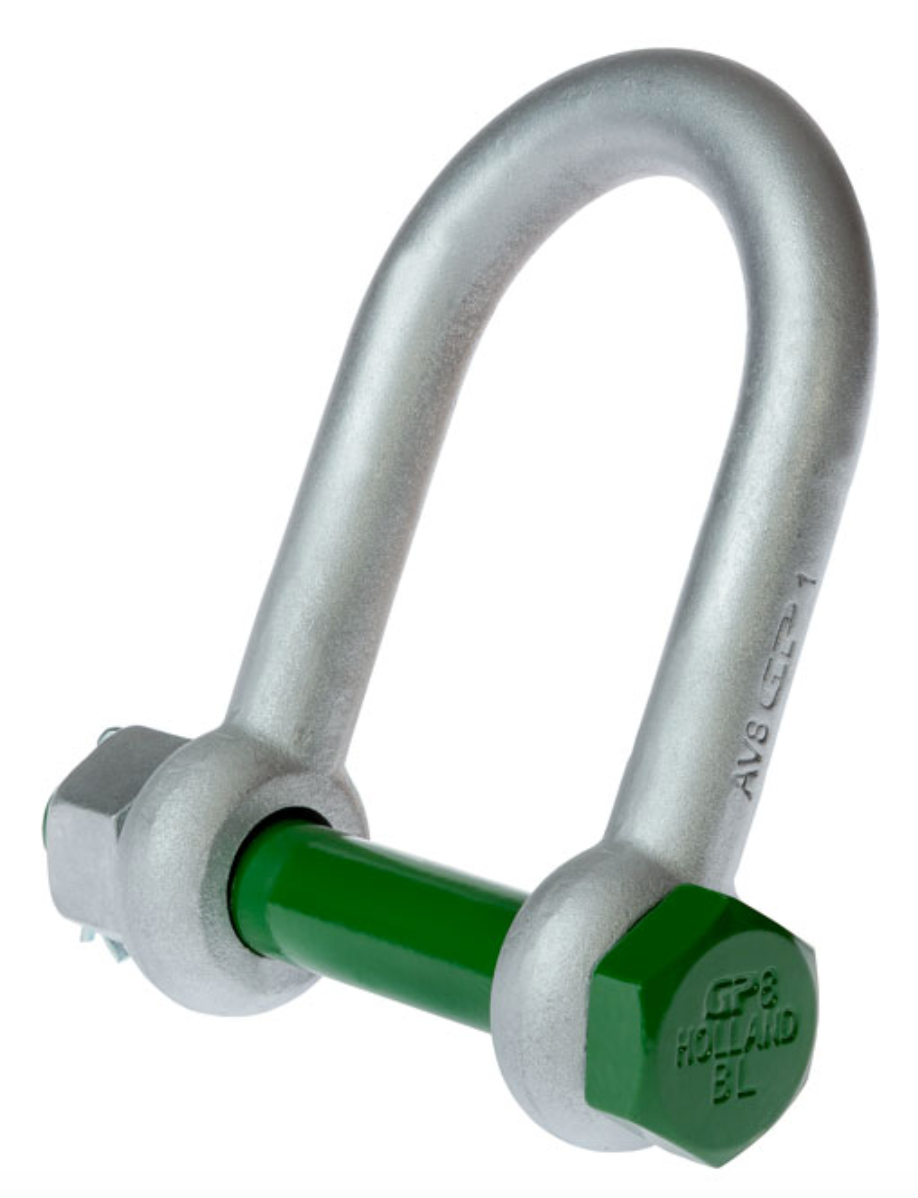

Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin
Green Pin SKU: 269-27-1
Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin Grade 8 alloy steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to... Read More
Regular price
£62.40
Regular price
Sale
Sale price
TODAY'S PRICE
£62.40
Unit price
per
In stock
StockTax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
Green Pin BigMouth Grade 8 Dee Shackle with Safety Nut and Bolt Pin
- Grade 8 alloy steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Conforms to ASME B30.26.
- Minimum breaking load is 5 times the W.L.L.
- Temperature range -20ºC up to +200ºC.
- Certification - Declaration of Conformity

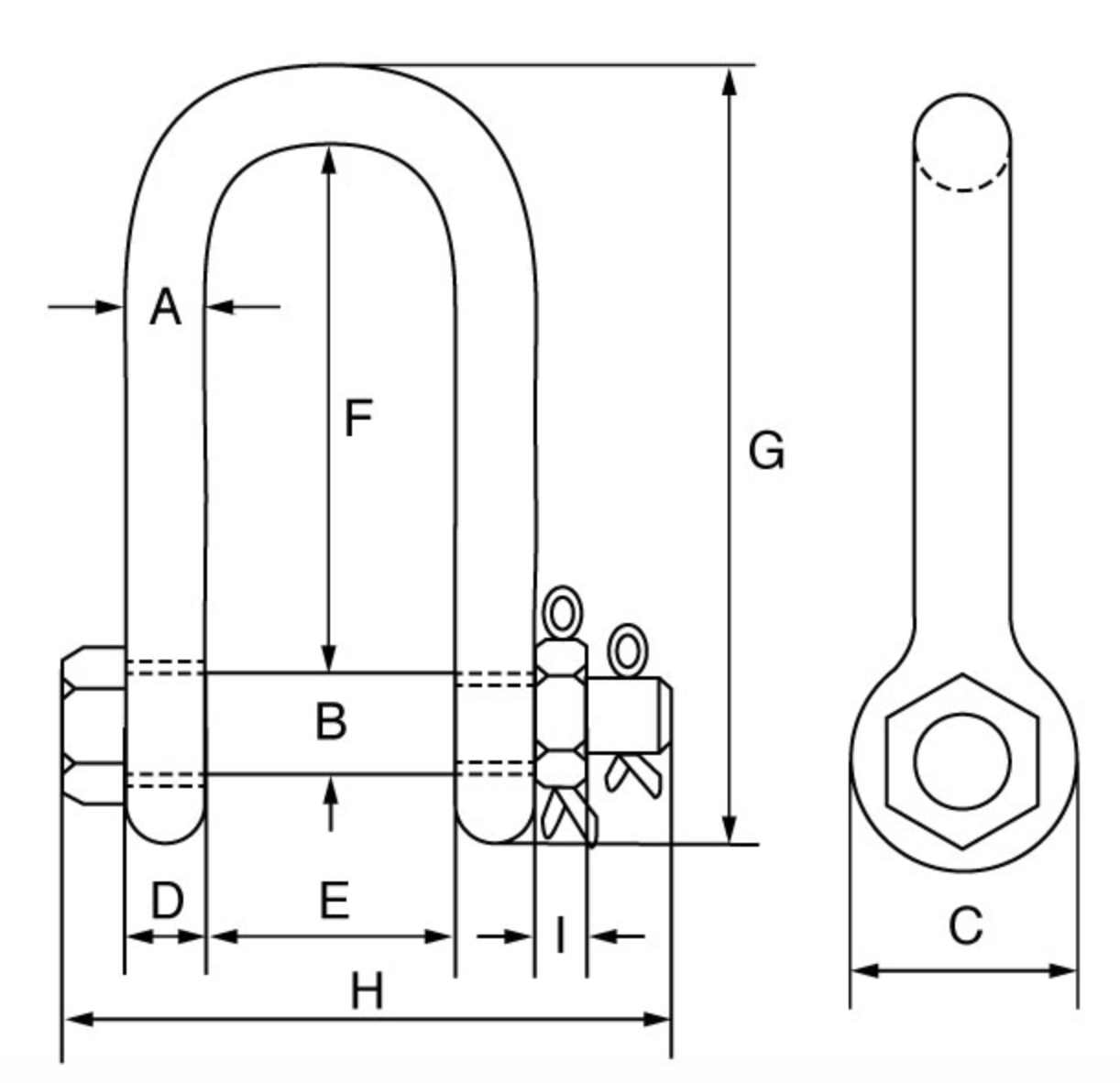

Specification
| SKU | W.L.L. | A | B | C | D | E | F | G | H | I | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgs | |
| 269-27-1 | 4.6 | 19 | 22 | 46 | 19 | 70 | 116 | 169 | 154 | 19 | 1.5 |
| 269-27-2 | 8.6 | 25 | 28 | 59 | 25 | 83 | 140 | 208 | 190 | 25 | 3.15 |
| 269-27-3 | 15.5 | 38 | 42 | 88 | 38 | 115 | 178 | 281 | 257 | 18.5 | 9 |
