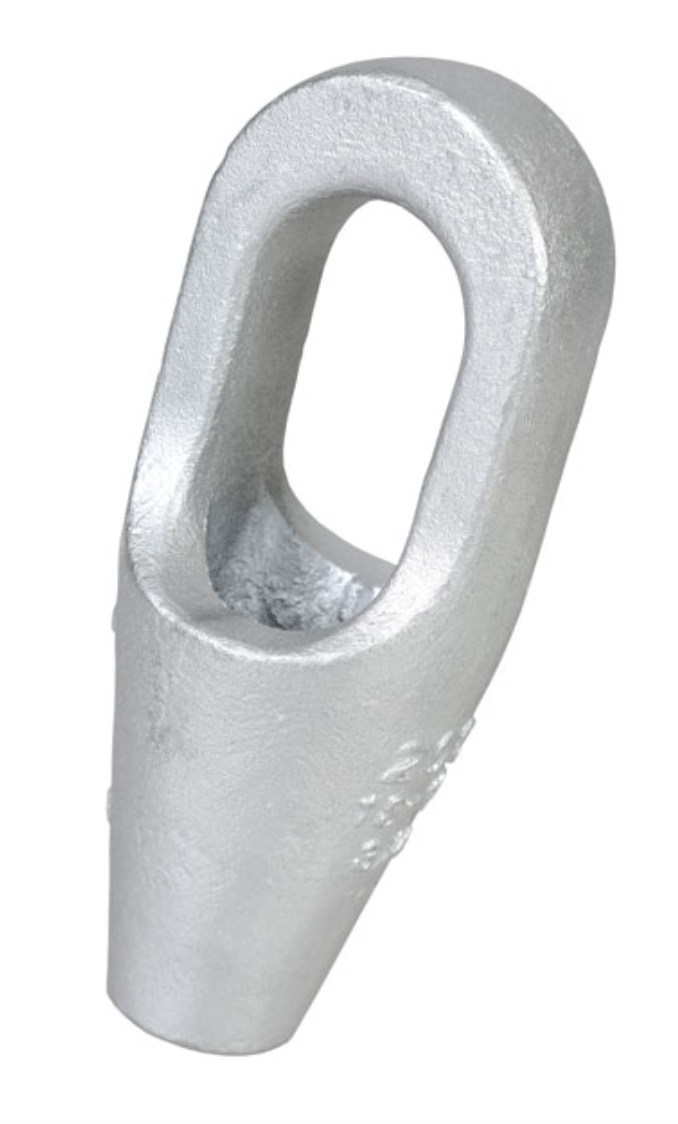

Green Pin Closed Spelter Socket

Green Pin Closed Spelter Socket

SKU: 286-813-1

Read More
Regular price £78.64
Regular price RRP Sale price TODAY'S PRICE £78.64

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Green Pin Closed Spelter Socket

  • High tensile steel.
  • Hot dipped galvanised finish.
  • Temperature range -20ºC up to +200°C.
  • Marked with CE, manufacturers ID, size, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available

      Spec

      SKU

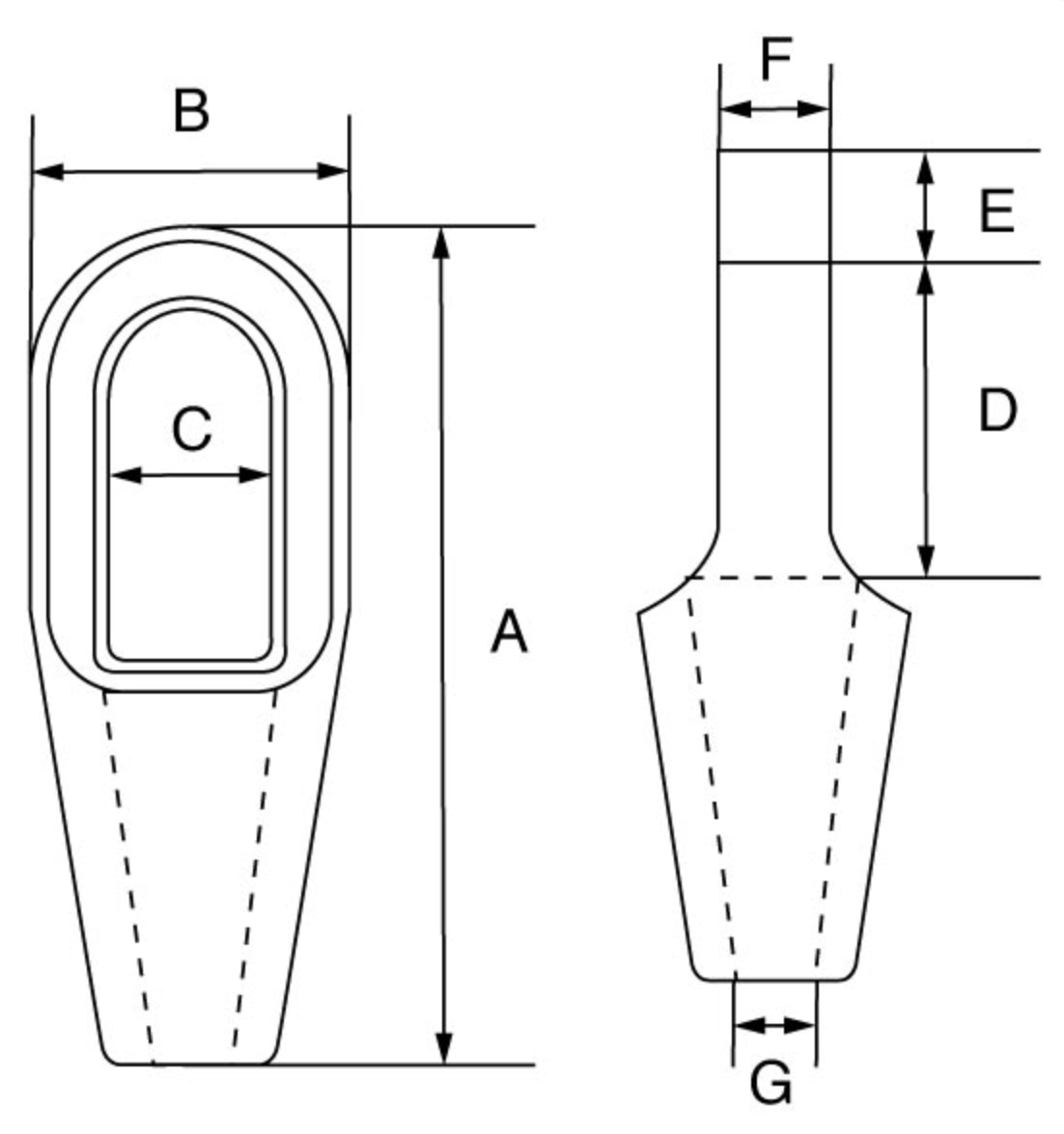

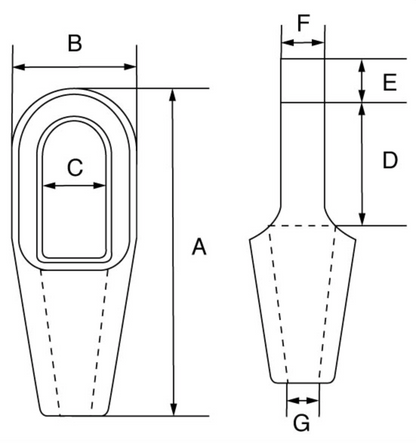

      Number M.B.L. Wire Rope Dia A B C D E F G Weight
      t mm mm mm mm mm mm mm mm kgs
      286-813-1
      296 8 6 - 7 101 37 22 40 11 13 9 0.3
      286-813-2
      297 12 8 - 10 119 43 25 48 14 17.5 12 0.5
      286-813-3
      298 20 11 - 13 140 52 30 58 18 23.5 15 0.75
      286-813-4
      299 25 14 - 16 162 68 37 66 21 26 17.5 1.5
      286-813-5
      200 40 18 - 19 194 76 42 78 27 32 21.5 2.4
      286-813-6
      201 55 20 - 22 224 92 47 90 33 38 24 3.6
      286-813-7
      204 75 23 - 26 253 104 57 103 36 44 28 5.8
      286-813-8
      207 90 27 - 30 282 114 63 116 39 51 32 7
      286-813-9
      212 125 31 - 36 312 127 70 130 43 57 38 10.5
      286-813-10
      215 150 37 - 39 358 136 79 155 51 63 41 13
      286-813-11
      217 170 40 - 42 390 146 83 171 54 70 44 17
      286-813-12
      219 225 43 - 48 443 171 93 198 55 76 51 26
      286-813-13
      222 280 49 - 54 502 193 100 224 62 82 57 37.5
      286-813-14
      224 360 55 - 60 548 216 112 247 73 92 63 50
      286-813-15
      226 425 61 - 68 597 241 140 270 70 102 73 65
      286-813-16
      227 460 69 - 75 644 273 159 286 70 124 79 94
      286-813-17
      228 560 76 - 80 686 292 171 298 83 133 86 115
      286-813-18
      229 625 81 - 86 743 311 184 311 102 146 92 145
      286-813-19
      230 720 87 - 93 788 330 197 330 102 159 99 168
      286-813-20
      231 875 94 - 102 845 362 216 356 108 178 108 210
      286-813-21
      233 1,200 108 - 115 1000 405 235 425 125 190 125 330
      286-813-22
      240 1,300 120 - 130 1150 450 260 525 125 200 143 500
