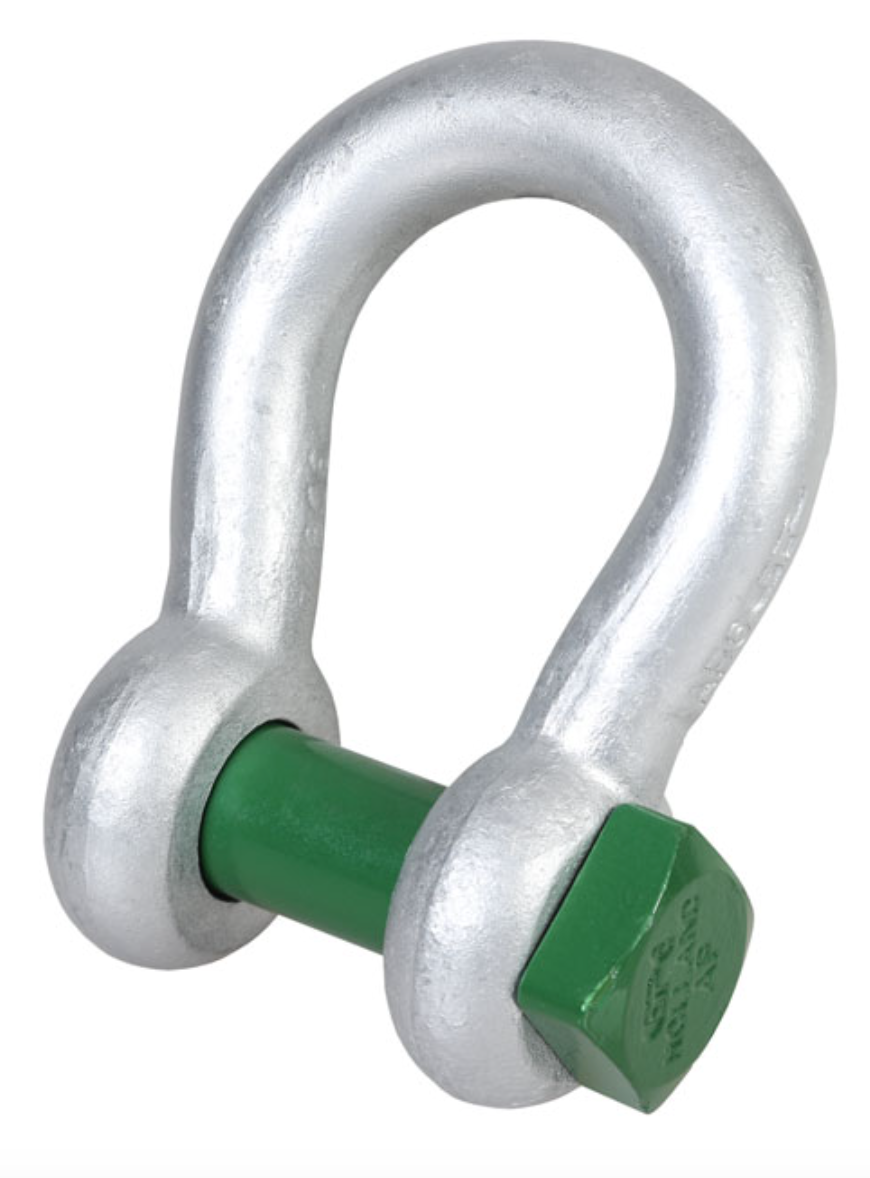

Green Pin Grade 6 Square Head Bow Shackle

Green Pin Grade 6 Square Head Bow Shackle

SKU: 269-30-1

Read More
Regular price £12.00
Regular price RRP Sale price TODAY'S PRICE £12.00

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Green Pin Grade 6 Square Head Bow Shackle

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available
  • G-4164

Spec

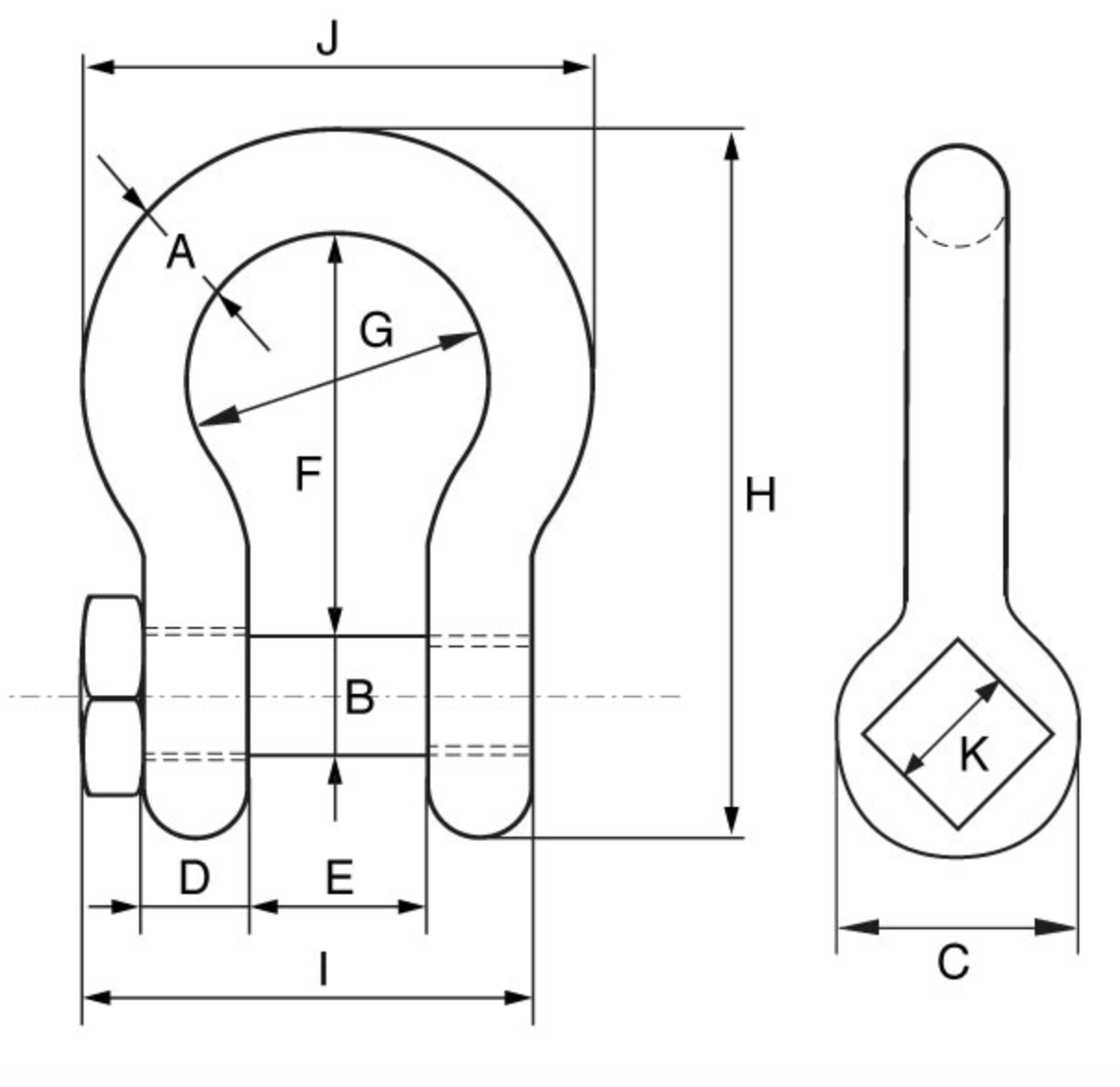

SKU W.L.L. A B C D E F G H I J K Weight
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-30-1 2 13.5 16 34 13 22 51 32 89 57.5 58 22 0.34
269-30-2 3.25 16 19 40 16 27 64 43 110 71 75 27 0.63
269-30-3 4.75 19 22 46 19 41 76 51 129 82 89 32 1
269-30-4 6.5 22 25 52 22 36 83 58 144 93 102 32 1.44
269-30-5 8.5 25 28 59 25 43 95 68 164 108 118 36 2.21
269-30-6 9.5 28 32 66 28 47 108 75 185 120 131 41 3.18
269-30-7 12 32 35 72 32 51 115 83 201 137 147 50 4.32
269-30-8 13.5 35 38 80 35 57 133 92 227 149 162 50 5.67
269-30-9 17 38 42 88 38 60 146 99 249 164 175 60 7.36
269-30-10 25 45 50 103 45 74 178 126 300 192 216 60 12.38
