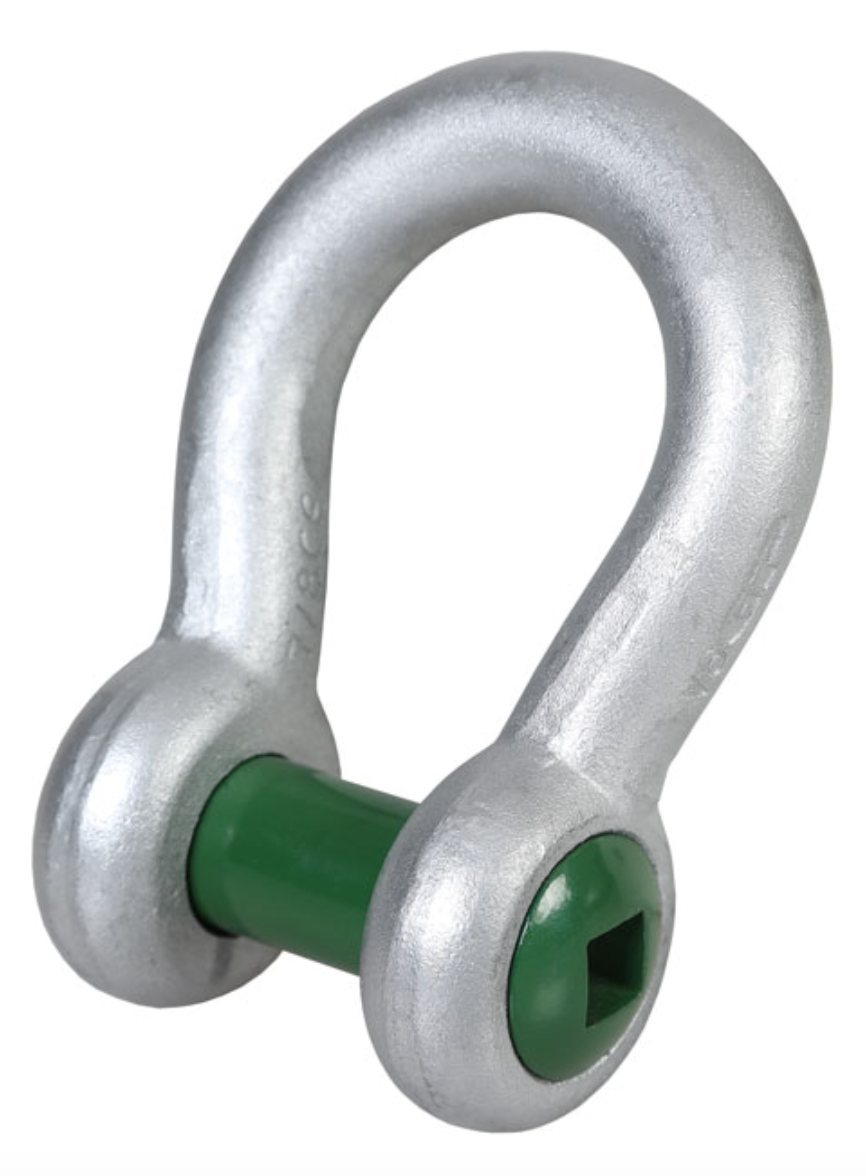

Green Pin Grade 6 Square Sunken Hole Bow Shackle

Green Pin Grade 6 Square Sunken Hole Bow Shackle

SKU: 269-29-1

Read More
Regular price £16.80
Regular price RRP Sale price TODAY'S PRICE £16.80

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Green Pin Grade 6 Square Sunken Hole Bow Shackle

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Key for unscrewing pin supplied separately (E-4170).
  • Certification - Declaration of Conformity
  • G-4169

Spec

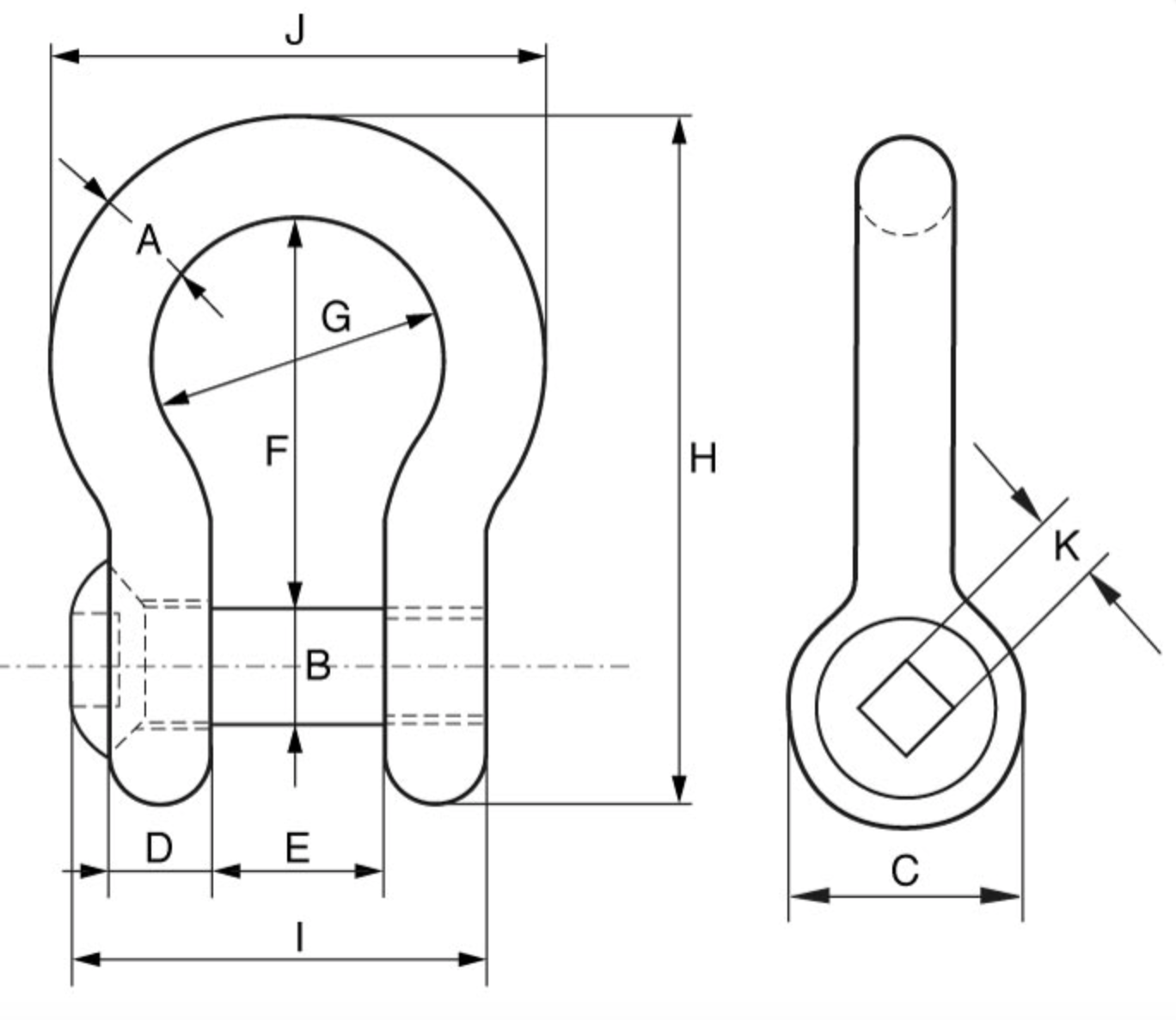

SKU W.L.L. A B C D E F G H I J K Weight
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-29-1 2 13.5 16 34 13 22 51 32 89 51 58 11 0.31
269-29-2 3.25 16 19 40 16 27 64 43 110 63 75 11 0.56
269-29-3 4.75 19 22 46 19 31 76 51 129 74 89 11 0.98
269-29-4 6.5 22 25 52 22 36 83 58 144 85 102 13 1.46
269-29-5 8.5 25 28 59 25 43 95 68 164 99 118 13 2.18
269-29-6 9.5 28 32 66 28 47 108 75 185 110 131 17 3.06
269-29-7 12 32 35 72 32 51 115 83 201 122 147 17 4.24
269-29-X 13.5 35 38 80 35 57 133 92 227 135 162 17 5.59
269-29-8 17 38 42 88 38 60 146 99 249 145 175 17 7.37
